MaxiSYS MS908CVII Commercial Vehicle Diagnostic Tablet

Name: MaxiSYS MS908CVII Commercial Vehicle Diagnostic Tablet
Brand: Autel
SKU: 18869
Price: 2999 USD
Availability: InStock

MaxiSYS MS908CVII Commercial Vehicle Diagnostic Tablet

$2,999.00

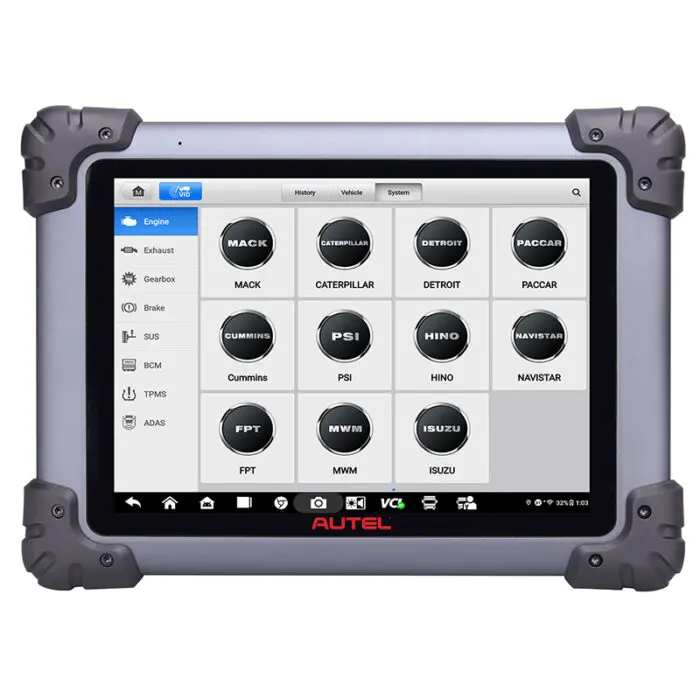

The MaxiSYS MS908CVII is a 9.7″ wireless touchscreen tablet with advanced diagnostics coverage for light-, medium-, and heavy-duty vehicles. All Systems fault detection via Auto Scan. Read and erase codes. View and graph live data. Perform Bi-directional control Active Tests and Special Functions. Expert Mode to enable technicians to access the system directly. Extensive service menu featuring over 40 service functions, including Forced DPF Regen, Oil Light and Maintenance Service Light resets, and Brake Bleed. Tablet features Android 10 OS, an Octa-Core processor and 128 GB of storage memory. Wireless printing. Includes one year of free software updates and is covered by a one-year limited warranty.

View Coverage Guide

$2,999.00

Need financing?

Affirm Financing: For personal use. Terms apply.

Categories: Autel, Commercial, Diagnostic Scan Tools, Shop By BrandTags: Diagnostic KitsSKU: MS908CVII

Commercial Vehicle Diagnostic and Service Tablet with Class Software 1-9 coverage includes:

9.7″ wireless touchscreen Heavy Duty Vehicle Diagnostics and Service Tablet
Performs advanced diagnostics on Class1-Class9 Heavy duty vehicles
Read and Erase codes, view live data, perform bi-directional active tests
Expert Mode for direct access to OE-specific system components, including engine, transmission, and braking systems
Extensive service and maintenance functions menu including forced DPF regen, EPB, and OLs
Perform injector cutout tests, injector coding
Equipped with MaxiFlash wireless bluetooth VCI/J2534
AutoScan of all available modules
Supports newest communication protocols on light duty vehicles with purchase of MaxiVCI200
Includes one year of free software updates and limited warranty coverage

Downloads

Download MS908CVII Product Flyer

Compare Similar

	MaxiSYS MS908CV	MaxiSYS MS908CVII	MaxiSYS MS909CV

HARDWARE
Connection	J2534 MaxiFLASH Elite Wireless Bluetooth	J2534 MaxiFLASH VCI Wireless Bluetooth	J2534 MaxiFLASH VCI Wireless Bluetooth
Screen	9.7-Inch Touchscreen 1024 x 768 DPI / LED color screen	9.7-Inch Touchscreen 1536 x 2048 DPI / LED Color Screen	9.7-Inch Touchscreen 1536 x 2048 DPI / LED Color Screen
Battery	11,000 mAh	15,000 mAh	15,000 mAh
Processor	1.4GHz QUAD-CORE	2.2GHz + 1.8GHz OCTA-CORE	2.2GHz + 1.8GHz OCTA-CORE
Memory	64GB SSD / 2GB RAM	128GB SSD / 4GB RAM	128GB SSD / 4GB RAM
Camera	5.0MP with flashlight	16MP & 5.0MP Front & Rear with Flashlight	16MP & 5.0MP Front & Rear with Flashlight
Docking Station	—	—	—
SOFTWARE
Operating System	Android 4.4.2	Android 10.0	Android 10.0
Software Updates	1 Year Free	1 YEAR FREE	1 YEAR FREE
Automatic Detection	Auto-Vin / Auto-Scan	Auto-Vin / Auto-Scan / ScanVin	Auto-Vin / Auto-Scan / SCANVIN
Secure Gateway Access	Authorized FCA Access With Autoauth Account	Authorized FCA Access With Autoauth Account	Authorized FCA Access With Autoauth Account
License Plate Reader	—	—	—
Vehicle Coverage	Class 3 – Class 9 10,000LBS 33,000LBS	Class 3 – Class 9 10,000LBS 33,000LBS	Class 3 – Class 9 10,000LBS 33,000LBS
OBDII Test Modes	All 10 Test Modes Live & Freeze Frame / Enhanced Mode 6	—	All 10 test modes LIVE & FREEZE FRAME / ENHANCED MODE 6
Service Resets	19 Service Features	25 Service Features	25 Service Features
Diesel PM	Class 1-9 Reset Diesel Emissions	Class 1-9 Reset Diesel Emissions	Class 1-9 Reset Diesel Emissions
System Diagnostics	Access All Modules In all systems on select vehicles	Access All Modules In All Systems on Select Vehicles	Access All Modules In All Systems on Select Vehicles
Component Activations	1,000+ New with software update Bi-directional Controls DPF Regen / Injector Coding	1,000+ New with software updates Bi-directional Controls DPF Regen / Injector coding	1,000+ New with software updates Bi-directional Controls DPF Regen / Injector coding
Enhanced Functions	Advanced Coding + Adaptations	Advanced Coding + Adaptations	Advanced Coding + Adaptations
ADAS Calibration	—	—	Access Static Calibration Class 3-5* Class 6-8 Dynamic Calibration *ADAS Target kits sold separately
Battery Analysis	—	—	MaxiBAS Software with multimeter AMP Clamps & B200 included
Oscilloscope	MP408 Compatible	—	—
