AutoLINK AL529HD Heavy Duty Code Reader

AutoLINK AL529HD Heavy Duty Code Reader

$199.95

The Autel AL529HD is a convient and easy to use tool for service trucks and triage diagnsotics that can not only read codes on OBDII/EOBD-compatible vehicles but also on heavy-duty vehicles that use the SAE-J1939 and SAE-J1708 protocols. This makes it an essential tool for any mechanic or automotive technician. The Autel AL529HD is compatible with North American, Asian, and European vehicles – 1996 and newer. It also features the AutoVIN function for quick manufacturer-specific code identification. This scanner can easily determine the cause of the Check Engine Light / Malfunction Indicator Light, and comes with multilingual (including English, Spanish and French) menus and DTC definitions.

$199.95

Categories: , , Tags: SKU: AL529HD

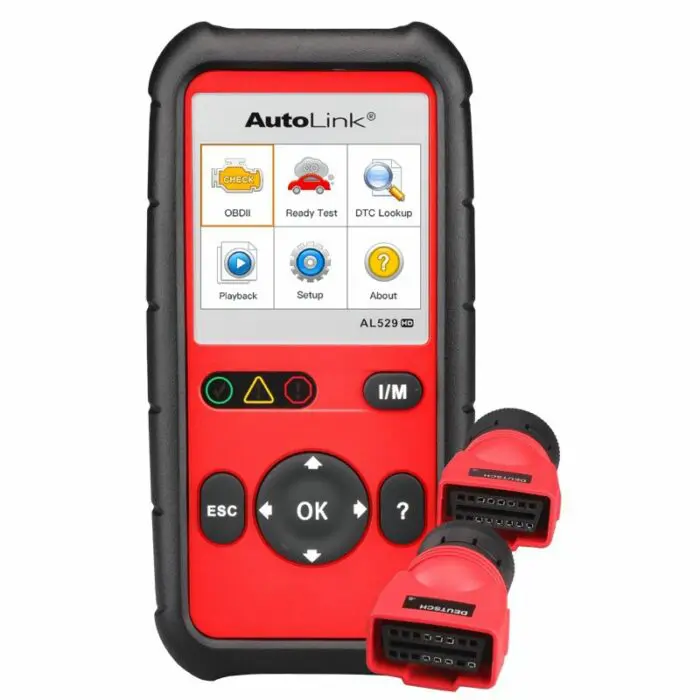

AutoLINK AL529HD Automotive Diagnostic Code Reader Agile Truck Tools-1
  1. Compatible with Heavy Duty Vehicles utilizing SAE-J1939 and SAE-J1708 protocol
  2. Compatible with North American, Asian, and European vehicles, 1996 and newer.
  3. OBDII/EOBD compatible vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)
  4. AutoVIN function for quick manufacturer-specific code identification
  5. Reads enhanced codes in Powertrain system for Ford, GM, and Chrysler
  6. Enhanced OBDII Mode 6 access
  7. Retrieves generic (P0, P2, P3 and U0), manufacturer-specific (P1, P3 and U1) and pending codes
  8. Retrieves vehicle identification information (VIN, CALID and CVN)
  9. Easily determines the cause of the Check Engine Light/ Malfunction Indicator Light (MIL)
  10. Turns off Check Engine Light, clears codes, and resets monitors
  11. Views freeze frame data
  12. Reads live PCM data stream
  13. Displays live O2 sensor test data
  14. Graphs data
  15. Reads, stores and plays back live sensor data
  16. Troubleshooter code tips aid technician in efficient vehicle diagnostics and repair.
  17. Patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
  18. Color-coded LEDs and built-in speaker provide visual and audible tone for readiness verification
  19. Multilingual (including English, Spanish, and French) menus and DTC definitions.
  20. Internet Updatable
  21. Prints data via Windows PC



Diagnostics Capability

  • View codes, including actual OEM flash codes
  • Access built-in troubleshooting
  • Access wiring diagrams
  • Perform bi-directional commands such as:
  • DPF accumulator resets
  • Injector cut-out tests
  • Change engine parameters
  • EGR valve calibrations
  • Program injectors
  • …and thousands more!

Specification

Display 2.8-inch LCD (320×240 dpi)
Connectivity USB mini 2.0 OBD II DB15
Operating Tem 0ºC to 60ºC (32ºF to 140ºF)
Storage Temp -20ºC to 70ºC (-1ºF to 158ºF)
External Power 9.0 to 28.0 V power provided via vehicle battery
Dimensions
(LxWxH)		 183 mm (7.2″) x 91 mm (3.58″) x 33 mm (1.3″)
Weight 242 g (o.533 lb.)

Video

Comparison

Functions AL529HD AL529
Real MIL • •
One Touch I/M Readiness Check • •
View Freeze Frame Data • •
Read/Erase DTCs • •
View Vehicle Information • •
AutoVIN for Quick DTC definition • •
O2 Monitor Test • •
Component Test • •
Modules Present • •
Support J1939 and J1708 Protocols •
Read/Erase DTCs for ABS
Read/Erase DTCs for SRS
Read/Erase DTCs for Engine
Read/Erase DTCs for Transmission
Read Enhanced Codes in Powertrain system for Ford, GM and Chrysler • •
AC/DC Voltage Test
Resistance Test
Diode Voltage Test
Current Test (0-20A, 0-200mA)
Starter Test
Charging System Test
Battery Test
Save and Playback Data • •
DTCs Help • •
TPMS
Print Data Via Windows-baded PC • •
Vehicle Coverage Vehicles compatible with
OBD protocols and
J1939, J1708 protocols		 Vehicles compatible
with OBD protocols

Downloads

Triad Road Service Promo

AL529 & 529 HD Quick Guide

AL529 User Manual
