Autel MS909CV Commercial Vehicle & Off-Highway Diagnostic Tablet

Autel MS909CV Commercial Vehicle & Off-Highway Diagnostic Tablet

Original price was: $5,995.00.Current price is: $5,450.00.

The best value commercial vehicle and off-highway diagnostic scan tool available!
The Autel MS909CV offers full dealer-level software capabilities, supporting commercial vehicles from light trucks like the F-150 to heavy-duty models such as Freightliners, as well as popular off-highway equipment brands like Caterpillar, Cummins, and John Deere. It covers Class 2-8 Domestic, European, and Asian trucks, school buses, RVs, and more, with comprehensive bi-directional testing and maintenance functions like DPF regeneration, parameter resets for speed and idle time: and fuel injector coding. With its complete North American OEM software for commercial vehicles, the MS909CV ensures efficient diagnostics and repair. A lifetime hardware warranty on the Android tablet and vehicle communication interface is included with an active subscription to Autel’s Total Care Program.

This product has been approved by both AutoAuth and the SGW Gateway.

View Coverage Guide

Original price was: $5,995.00.Current price is: $5,450.00.

Categories: , , Tags: , SKU: MS909CV

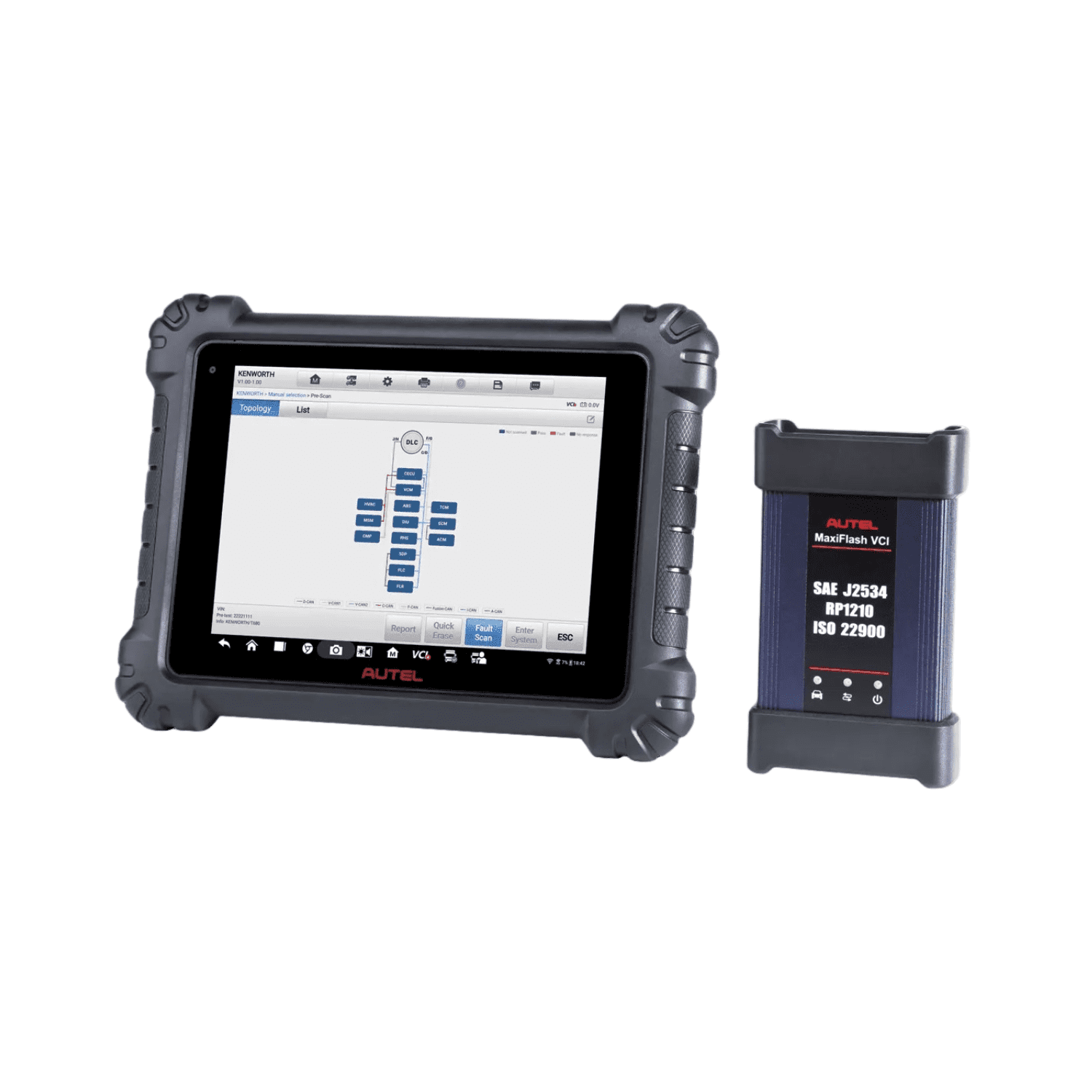

MaxiSYS MS909CV
SALE

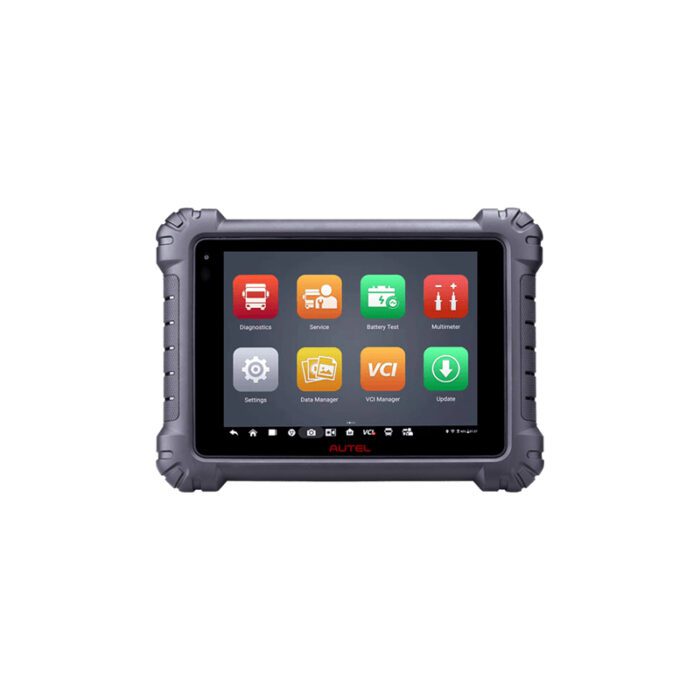

MS909CV Tablet
SALE

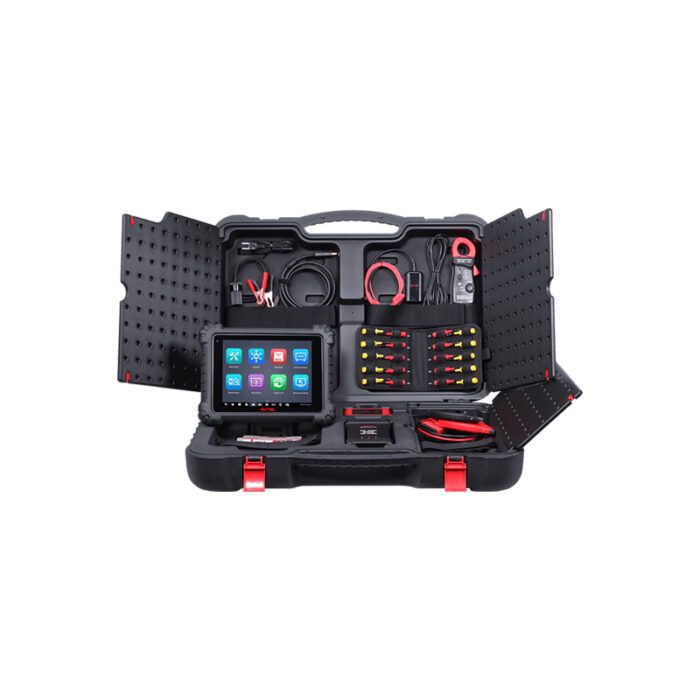

MS909CV carrying case
SALE

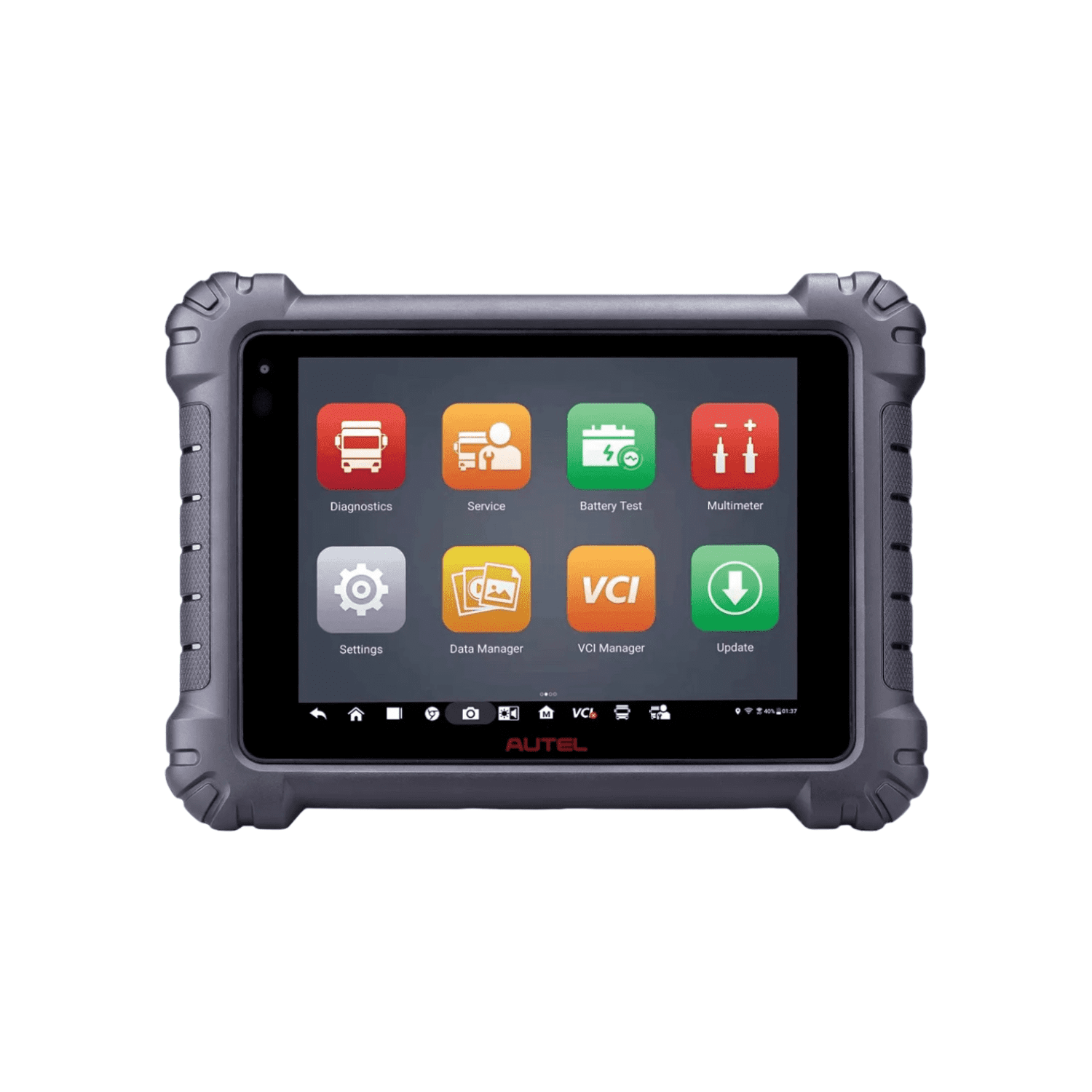

MS909CV
SALE
  • Upgraded Octa-Core processor and 128GB storage and Android 7.0 Operating System with 9.7” Touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation
  • Intelligent Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan and DTC Analysis / Repair Guided Assist
  • Perform ADAS Calibration with new Class 6-8 Dynamic Calibration, Supporting Class 3-5 Complete ADAS Coverage. The Class 6-8 Static Calibration (coming soon)
  • Support heavy-duty Battery Tests & Health Reports

Downloads

Autel VS Texa Comparison Chart

MaxiSYS MS909CV User Manual

MaxiSYS CV Total Care Program

HeavyDuty-CompChart

MaxiSYS MS909CV Off-Highway Flyer

MaxiSYS MS909CV Collateral

JPRO Comaprison Chart

Specifications

Operating System Android 7.0
Processor Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT V5.0 + BR/EDR
  • GPS
  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jac
Power and Battery
  • 15000mAH 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/1.3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66 lb.)
Protocols oIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

What's Included

Compare Similar

MaxiSYS MS908CVII MaxiSYS MS909CV
MaxiSYS MS908CVII MaxiSYS MS909CV with VCI and B200
HARDWARE
Connection
J2534 MaxiFLASH VCI
Wireless Bluetooth
J2534 MaxiFLASH VCI
Wireless Bluetooth
Screen
9.7-Inch Touchscreen
1536 x 2048 DPI / LED Color Screen
9.7-Inch Touchscreen
1536 x 2048 DPI / LED Color Screen
Battery
15,000 mAh
15,000 mAh
Processor
2.2GHz + 1.8GHz
OCTA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
Memory
128GB SSD / 4GB RAM
128GB SSD / 4GB RAM
Camera
16MP & 5.0MP
Front & Rear with Flashlight
16MP & 5.0MP
Front & Rear with Flashlight
Docking Station
—
—
SOFTWARE
Operating System
Android 10.0
Android 10.0
Software Updates
1 YEAR FREE
1 YEAR FREE
Automatic Detection
Auto-Vin / Auto-Scan / ScanVin
Auto-Vin / Auto-Scan / SCANVIN
Secure Gateway Access
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
License Plate Reader
—
—
Vehicle Coverage
Class 3 – Class 9
10,000LBS      33,000LBS
Class 3 – Class 9
10,000LBS      33,000LBS
OBDII Test Modes
—
All 10 test modes
LIVE & FREEZE FRAME / ENHANCED MODE 6
Service Resets
25 Service Features
25 Service Features
Diesel PM
Class 1-9
Reset Diesel Emissions
Class 1-9
Reset Diesel Emissions
System Diagnostics
Access All Modules
In All Systems on Select Vehicles
Access All Modules
In All Systems on Select Vehicles
Component Activations
1,000+ New with software updates
Bi-directional Controls
DPF Regen / Injector coding
1,000+ New with software updates
Bi-directional Controls
DPF Regen / Injector coding
Enhanced Functions
Advanced Coding + Adaptations
Advanced Coding + Adaptations
ADAS Calibration
—
Access Static Calibration Class 3-5*
Class 6-8 Dynamic Calibration
*ADAS Target kits sold separately
Battery Analysis
—
MaxiBAS Software with multimeter
AMP Clamps & B200 included
Oscilloscope
—
—
