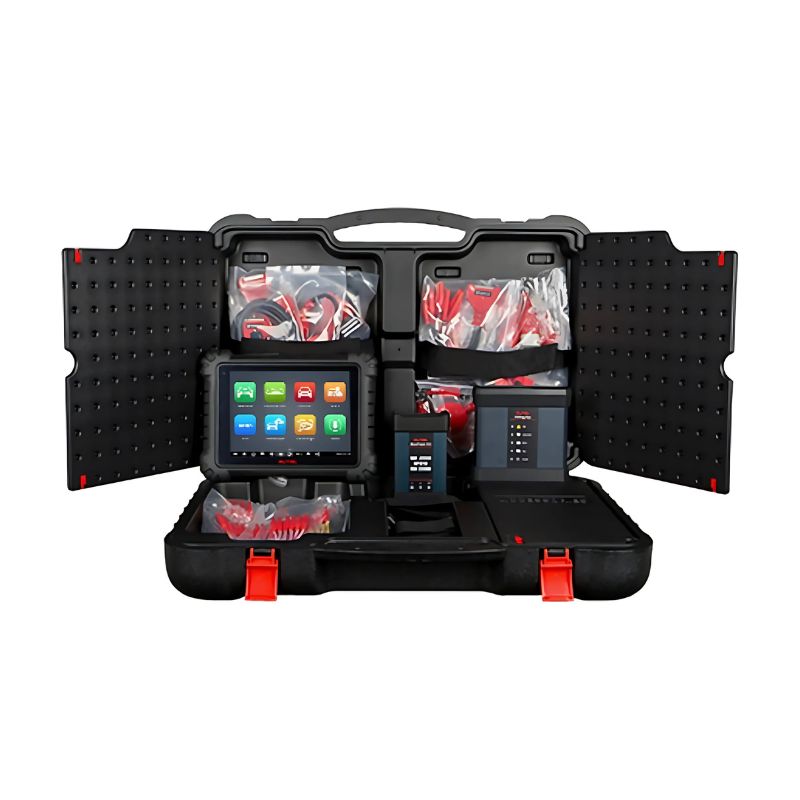

MaxiSYS MS909EV ICE & EV Diagnostic Tablet Kit

MaxiSYS MS909EV ICE & EV Diagnostic Tablet Kit

$4,295.00

Call for special pricing.

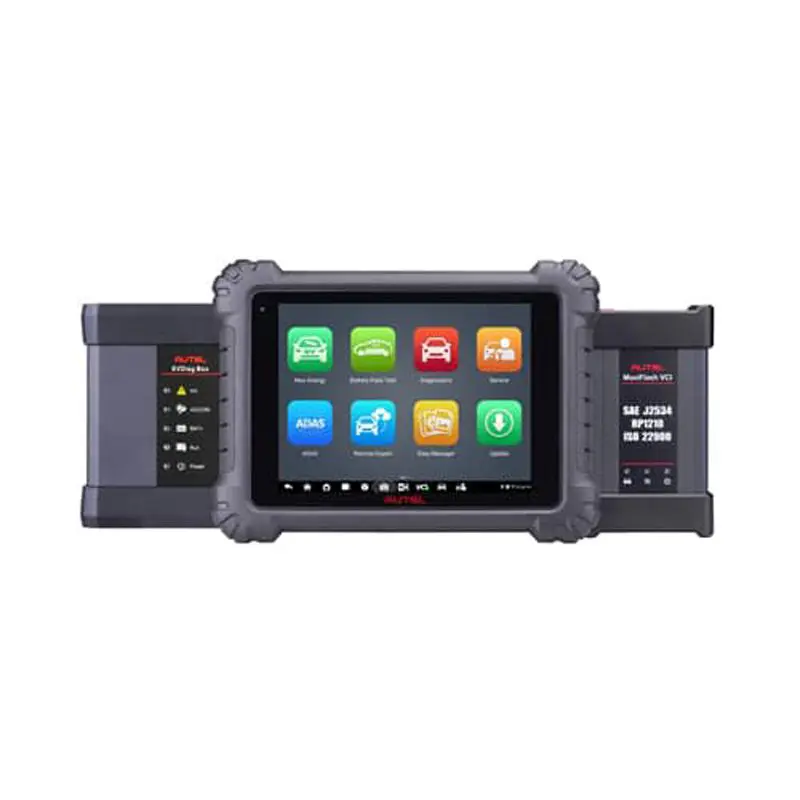

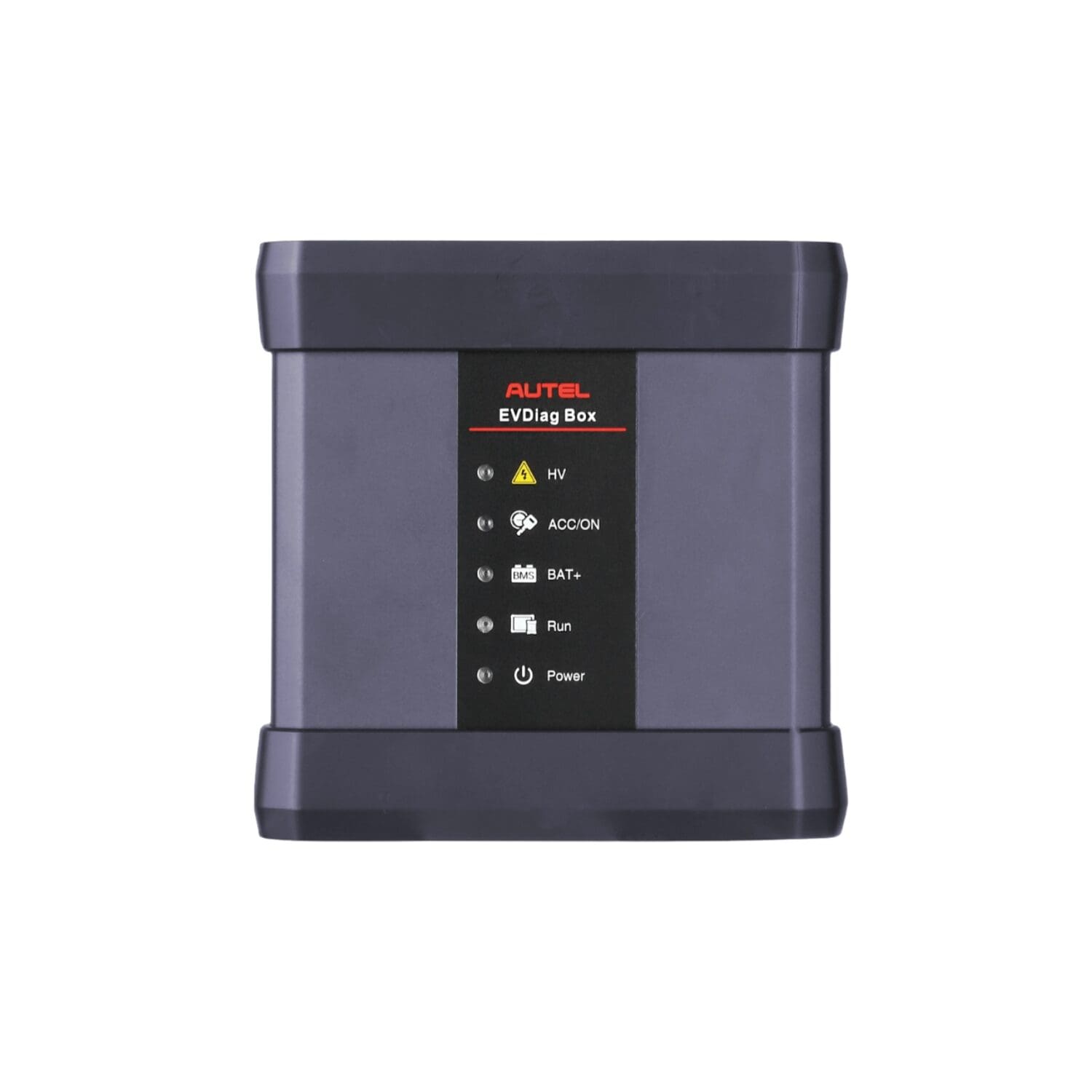

The MaxiSys MS909EV is a 9.7-inch touchscreen advanced diagnostics tablet compatible with U.S., Asian, and European electric, hybrid, gas, and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics. Includes one year of software updates and is covered by a one-year limited warranty.

View Coverage Guide

$4,295.00

Affirm Financing: For personal use. Terms apply.

  • Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
  • Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data

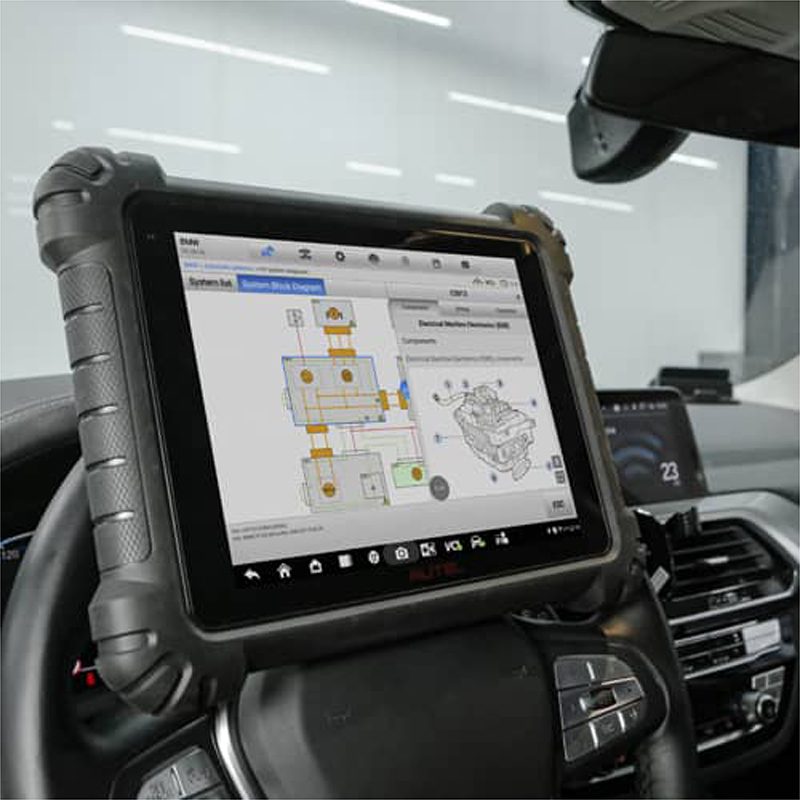

  • Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions

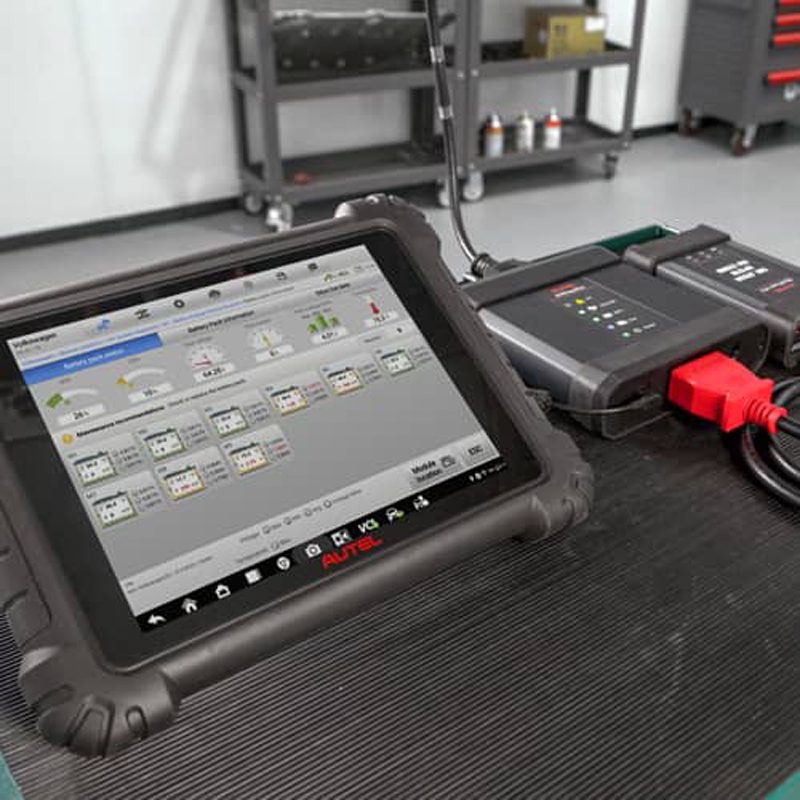

  • State of Charge and State of Health analysis for true battery condition

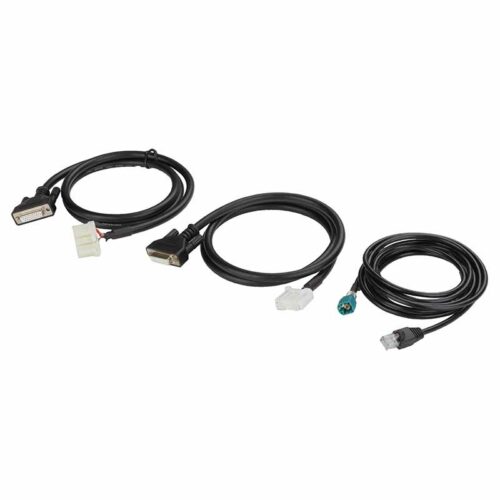

  • Perform battery analysis via OBDII port, specialty cables and jumpers
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Downloads

MaxiSYS MS909EV User Manual

MaxiSYS MS909EV Battery Addition Flyer

MaxiSYS MS909EV Flyer

Specifications

Operating System Android 7.0
Processor Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory

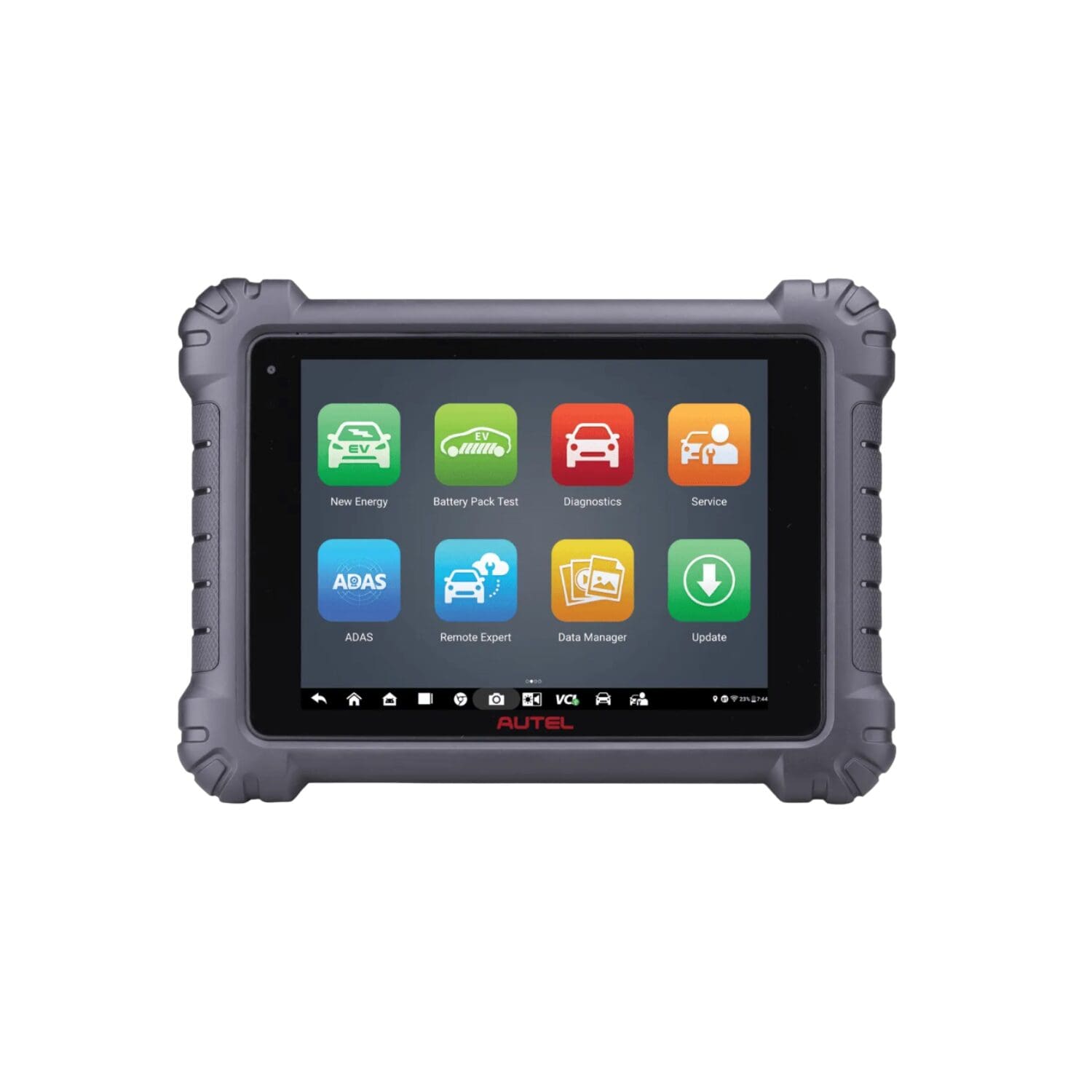

Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT V5.0 + BR/EDR
  • GPS
  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 16 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jac
Power and Battery
  • 15000mAH 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/1.3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

What's Included

Compare Similar

MaxiSYS MS909EV MaxiSYS MSUltra EV
MaxiSYS MS909EV MaxiSYS Ultra EV
HARDWARE
Connection
Bluetooth MaxiFlash VCI
Including Latest Protocols
Bluetooth MaxiFlash VCMI
Including Latest Protocols
Screen
9.7inch Touchscreen
1536 X 2048 DPI / TFT-LCD ASAHI GLASS
12.7inch Touchscreen
2732 x 2048 TFT-LCD Capacitive Touchscreen
Battery
15,000 mAh
18,000 mAh
Processor
2.2GHz + 1.8GHz
OCTA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
Memory
128GB SSD / 4GB RAM
256GB SSD / 4GB RAM
Camera
16MP Rear / 16MP Front
16MP Rear / 5MP Front
Docking Station
Included
EVDiag Box
Included
Included
SOFTWARE
Operating System
Android 10.0
Android 7.0
Software Updates
1 Year Free
Update Via Wi-Fi
1 Year Free
Update Via Wi-Fi
Automatic Detection
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Secure Gateway Access
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
License Plate Reader
Available On
Select Vehicles
Available On
Select Vehicles
Vehicle Coverage
US, Asian & European
Electric, Gas, Diesel and Hybrid vehicles
US, Asian & European
Electric, Gas, Diesel and Hybrid vehicles
OBDII Test Modes
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
Service Resets
36 Service Features
36 Service Features
Diesel PM
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
System Diagnostics
Access All Modules
In all systems
Access All Modules
In all systems
High-voltage System Diagnostics
Diagrams of high-voltage system block
Diagrams of high-voltage system block
Battery Pack Diagnostics
SOC and SOH analysis
SOC and SOH analysis
Component Activations
Bi-Directional Control
Bi-Directional Control
Enhanced Functions
Coding + Adaptations
Coding + Adaptations
ADAS Calibration
ADASUpgrade & Frame Kit*
Purchase Required
ADASUpgrade & Frame Kit*
Purchase Required
Battery Analysis
Complete TPMS Function
Topology Module Mapping
Color-coded All System status screen
on supported vehicles
Color-coded All System status screen
on supported vehicles
Oscilloscope
VCMI 5-in-one device, VCI multimeter, waveform generator, CAN Bus tester
Split Screen Display
View multiple functions at once
View multiple functions at once
