MaxiSYS MS906PRO-TS Automotive Diagnostic Tablet w/ TPMS

MaxiSYS MS906PRO-TS Automotive Diagnostic Tablet w/ TPMS

$1,995.00

Call for special pricing.
The MaxiSYS MS906 PRO-TS is a high-powered eight-inch advanced diagnostic tablet that is perfect for any workshop. Featuring expanded software and cloud-based data and repair services, the MS906 PRO-TS is a must-have for any professional mechanic. With its Octa-core processor, Android 7 operating system, and 128 GB of memory, the MS906 PRO-TS can perform advanced diagnostics, including coding and adaptations, access comprehensive repair information, and conduct battery and electrical system analysis* and ADAS calibrations.** The MS906 PRO-TS also features a TPMS antenna module for performing comprehensive TPMS service. If you’re looking for an advanced diagnostic tablet combined with TPMS programming capabilities, the MaxiSYS MS909PRO-TS is it!

View Coverage Guide

$1,995.00

Affirm Financing: For personal use. Terms apply.

  • Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer

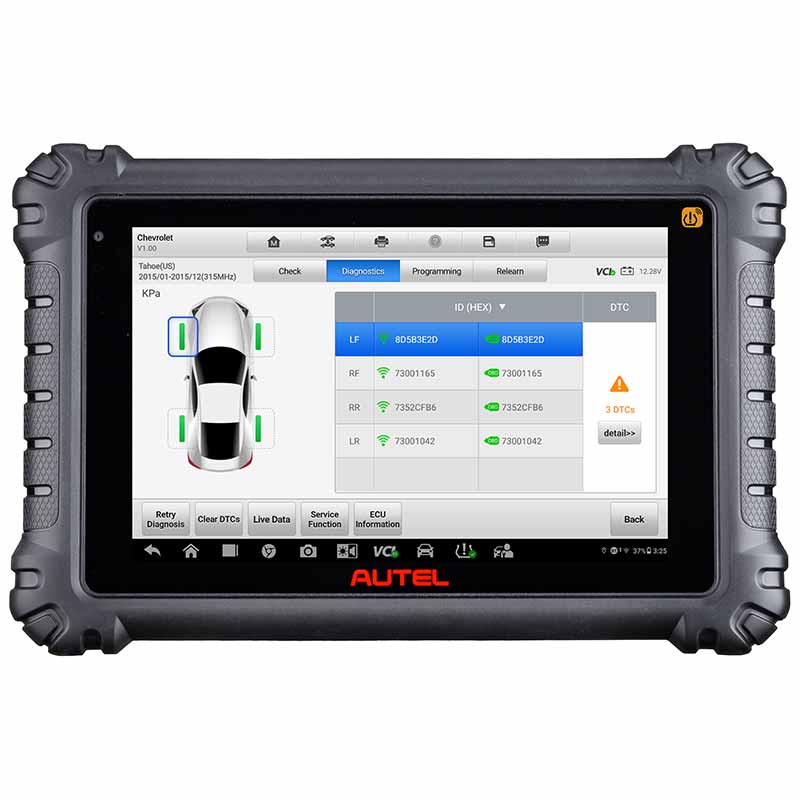

  • Complete TPMS servicing: Activate/read all known sensors, diagnose sysytem, program 1-Sensor, relearn sensors

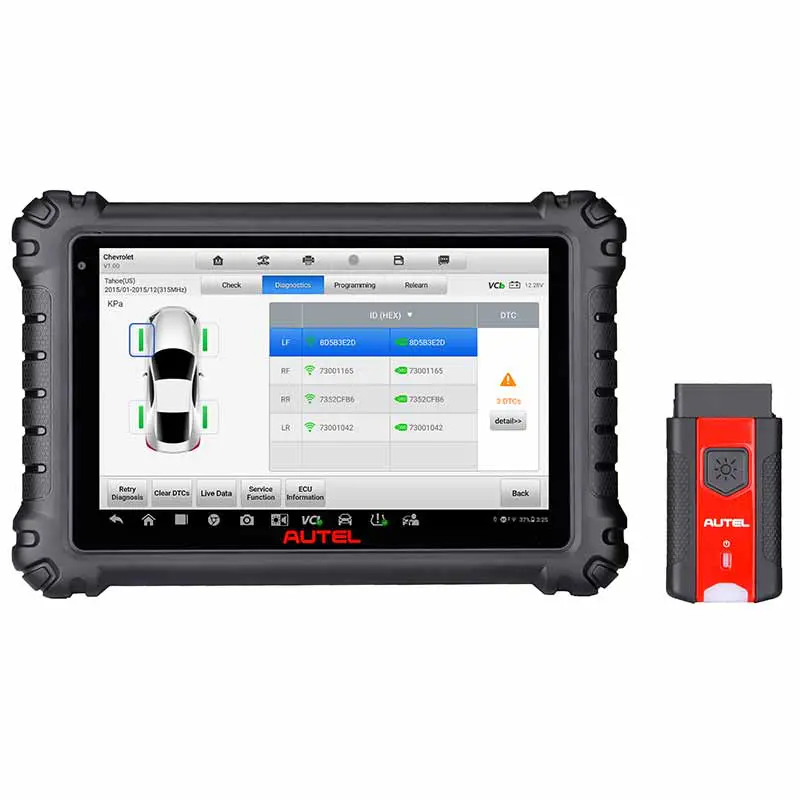

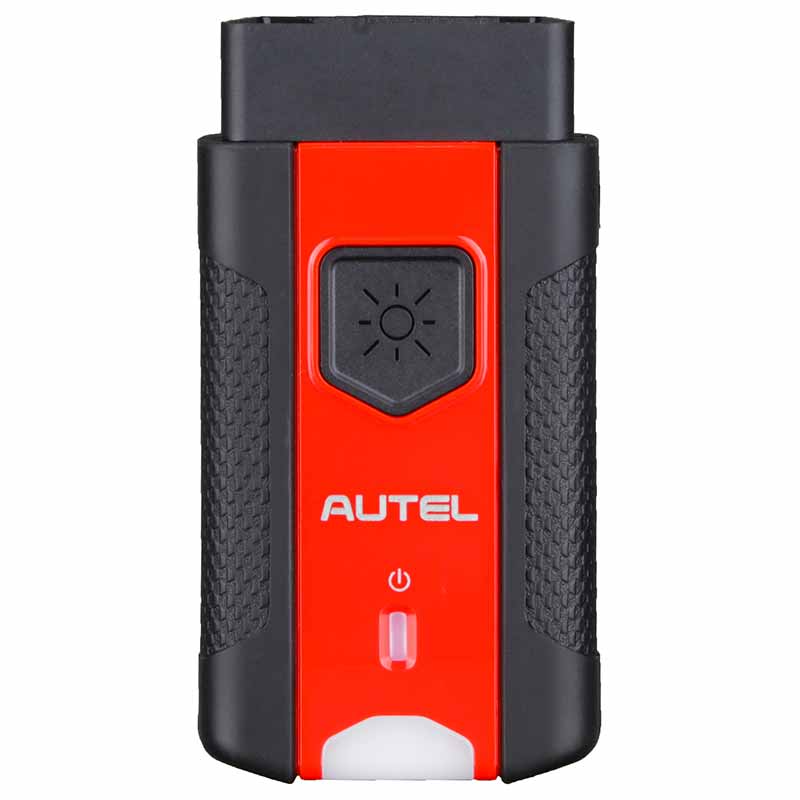

  • 8-inch Wireless Touchscreen tablet with embedded antenna, Bluetooth-enabled MaxiSYS VCI200
  • Octa-Core Processor/128 GB memory / 4 GB RAM

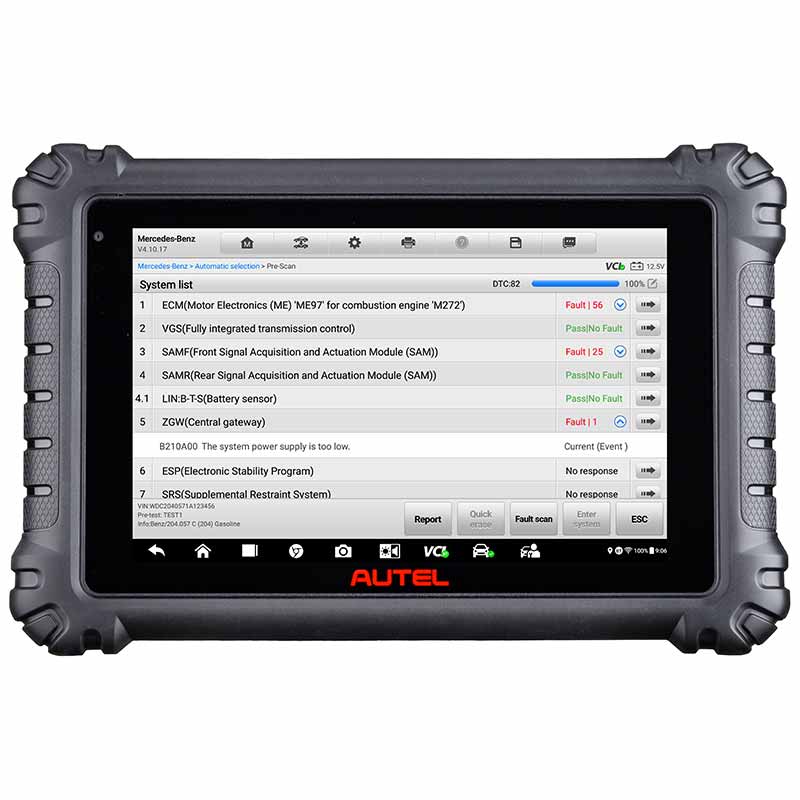

  • Performs all system scan with ADAS identification/ Customizable Pre & Post scans
  • Read/Erase Codes, View Freeze Frame and Live Data
  • Bi-directional control capability including Active test/Performs coding and adaptations
  • FCA Access via AutoAuth account/ Battery and Charging System analysis (hardware purchase required)
  • ADAS Calibration-capable with software upgrade and Autel Calibration System purchase
  • One Year Free software updates and limited hardware warranty

Downloads

MaxiSYS MS906 Pro-TS User Manual

MaxiSYS MS906 Pro-TS Quick Start Guide

MaxiSYS MS906 Pro-TS Function List

MaxiSYS MS906 Pro-TS Flyer

Specifications

CPU Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4/128GB
Operating System Android 7.0
LCD 8” 1920×1200
Battery 11,600 mAh
Camera
  • Front:16 Megapixel
  • Rear: 16 Megapixel
Special Function 26
Guide Function Support Volkswagen, Audi
Coding and Adaptation
  • BMW F and E chassis coding
  • Porsche Coding
  • Ford offline adaptation
TPMS Included
ADAS Support

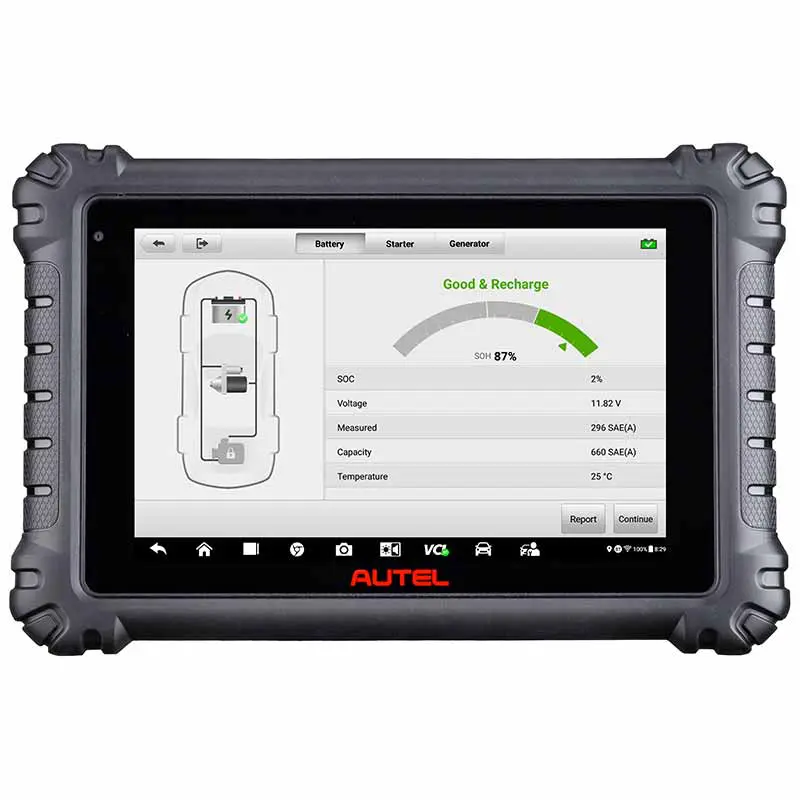

Battery and Electrical System Testing Support
Cloud Services Support
Remote Expert(Coming Soon) Support
Weight Support
Cloud Report Storage Support

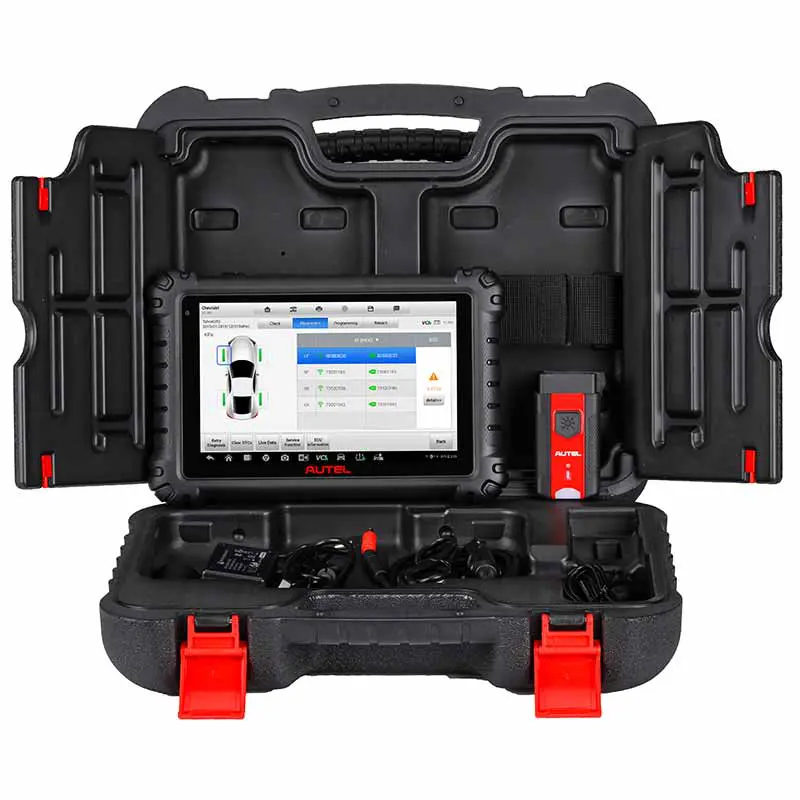

What's Included

Compare Similar

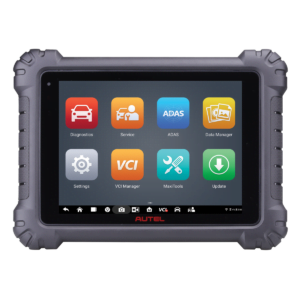

MaxiSYS MS906PRO MaxiSYS MS906 Pro-TS MaxiSYS MS909
  MaxiSYS MS906 Pro Tablet MaxiSYS MS906 Pro-TS Tablet MaxiSYS MS909 Tablet
HARDWARE

Connection

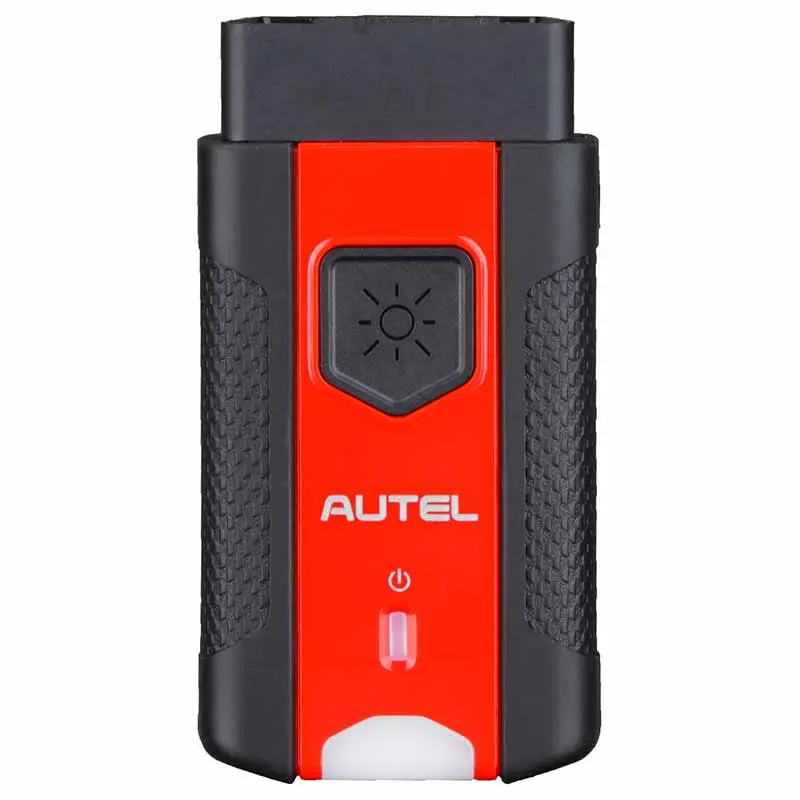

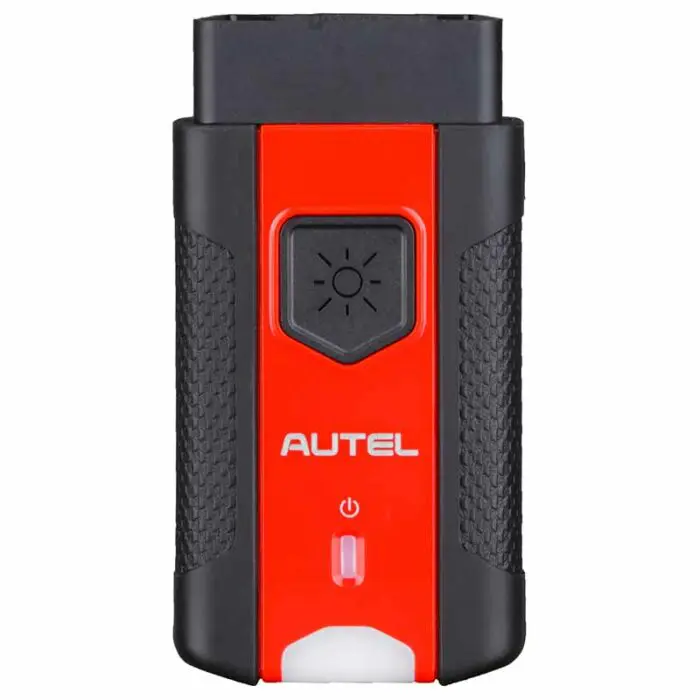

Bluetooth MaxiSYS VCI-200
Bluetooth MaxiSYS VCI-200
Bluetooth MaxiFlash VCI
Including Latest Protocols
Screen
8-Inch Touchscreen
1920 x 1200 DPI / TFT-LCD Asahi Glass
8-Inch Touchscreen
1920 x 1200 DPI / TFT-LCD Asahi Glass
9.7-Inch Touchscreen
1536 x 2048 DPI / TFT-LCD Asahi Glass
Battery
11,600 mAh
11,600 mAh
15,000 mAh
Processor
2.2GHz + 1.8GHz
OCTA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
Memory
128GB SSD / 4GB RAM
128GB SSD / 4GB RAM
128GB SSD / 4GB RAM
Camera
16MP Rear / 16MP Front
16MP Rear / 16MP Front
16MP Rear / 16MP Front
Docking Station
SOFTWARE

Operating System
Android 7.0
Android 7.0
Android 7.0
Software Updates
1 Year Free
Update Via Wi-Fi
1 Year Free
Update Via Wi-Fi
1 Year Free
Update Via Wi-Fi
Automatic Detection
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Secure Gateway Access
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
License Plate Reader
Available On
Select Vehicles
Available On
Select Vehicles
Available On
Select Vehicles
Vehicle Coverage
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
OBDII Test Modes
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
Service Resets
26 Service Features
26 Service Features
26 Service Features
Diesel PM
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
System Diagnostics
Access All Modules
In all systems
Access All Modules
In all systems
Access All Modules
In all systems
Component Activations
Bi-Directional Control
Bi-Directional Control
Bi-Directional Control
Enhanced Functions
Coding Adaptations
Coding Adaptations
Coding Adaptations
ADAS Calibration
ADASUpgrade & Frame Kit*
Purchase Required
ADASUpgrade & Frame Kit*
Purchase Required
ADASUpgrade & Frame Kit*
Purchase Required
Battery Analysis
MAXIBAS Software**
MAXIBAS Software**
MAXIBAS Software**
Complete TPMS Function
TPMS Diagnostics, Service & 1-Sensor Programming
Topology Module Mapping
Color-coded All System status screen
on supported vehicles
Oscilloscope
Split Screen Display

Videos
