MaxiSYS MS906 Pro Automotive Diagnostic Tablet

MaxiSYS MS906 Pro Automotive Diagnostic Tablet

$1,595.00

Call for special pricing

If you’re looking for an advanced diagnostic tablet that is compatible with U.S., Asian, and European vehicles, the MaxiSYS MS906Pro is a great option. This 8-inch wireless Android-based touchscreen tablet performs extensive vehicle diagnostics, including an all-systems scan with ADAS identification, the ability to read/erase codes, view freeze frame and live data, bi-directional control including active testing, coding, and adaptations. The MaxiSYS MS906Pro also includes customizable Pre/Post scans, an extensive service menu with 25 of the most common maintenance tasks, and FCA Access via AutoAuth account. Plus, starting and charging system analysis with MaxiBAS BT506 Bluetooth tester and terminal cables purchase, and ADAS Calibration capable (frame system and software upgrade required). The MaxiSYS MS906Pro comes with one year of free software updates and a limited hardware warranty.

View Coverage Guide

$1,595.00

Affirm Financing: For personal use. Terms apply.

MS906Pro includes the ADAS Software upgrade that enables the MS906Pro for full ADAS calibrations on over 80 brands of vehicles.

Recommended for MA600 and is not compatible with IA800

Includes:

  • Advanced diagnostic tablet compatible with U.S., Asian and European vehicle, 1996 and newer

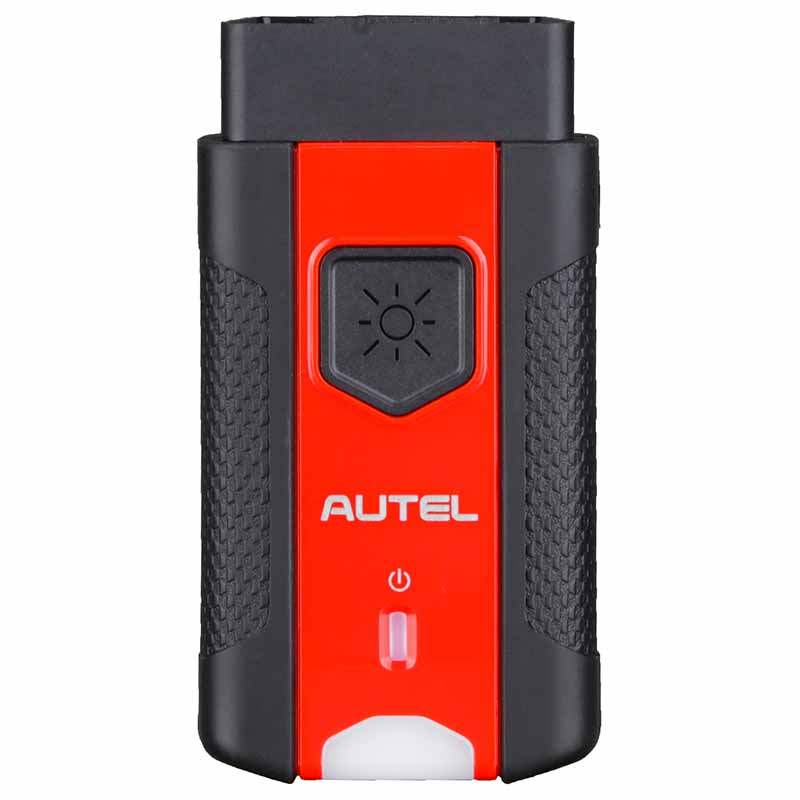

  • 8-inch Wireless Touchscreen tablet with Bluetooth-enabled MaxiSYS VCI200
  • Octa-Core Processor/128 GB memory / 4 GB RAM
  • Performs all system scan with ADAS identification/ Customizable Pre & Post scans
  • Read/Erase Codes, View Freeze Frame and Live Data
  • Bi-directional control capability including Active test/Performs coding and adaptations
  • FCA Access via AutoAuth account/ Battery and Charging System analysis (hardware purchase required)
  • ADAS Calibration-capable with software upgrade and Autel Calibration System purchase
  • Extensive Service Menu: Quick access to 25 of the most common maintenance tasks
  • One Year Free software updates and limited hardware warranty

Downloads

MaxiSYS MS906 Pro User Manual

MaxiSYS MS906 Pro Quick Start Guide

Specifications

CPU Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4/128GB
Operating System Android 7.0
LCD 8” 1920*1200
Battery 11 600 mAh
Camera
  • Front:16 Megapixel
  • Rear: 16 Megapixel
Special Function 26
Guide Function Support Volkswagen, Audi
Coding and Adaptation
  • BMW F and E chassis coding
  • Porsche Coding
  • Ford offline adaptation
TPMS No
ADAS Support
Battery and Electrical System Testing Support
Cloud Services Support
Remote Expert(Coming Soon) Support
Weight Support
Cloud Report Storage Support

What's Included

Compare Similar

MaxiSYS MS906S MaxiSYS MS906PRO MaxiSYS MS906 Pro-TS
  MaxiSYS MS906S Tablet MaxiSYS MS906 Pro Tablet MaxiSYS MS906 Pro-TS Tablet
HARDWARE
Connection
Bluetooth VCI-MINI
Bluetooth MaxiSYS VCI-200
Bluetooth MaxiSYS VCI-200
Screen
8-Inch Touchscreen
1024 x 768 DPI / TFT-LCD Asahi Glass
8-Inch Touchscreen
1920 x 1200 DPI / TFT-LCD Asahi Glass
8-Inch Touchscreen
1920 x 1200 DPI / TFT-LCD Asahi Glass
Battery
10,000 mAh
11,600 mAh
11,600 mAh
Processor
1.7GHz + 1GHz
HEXA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
2.2GHz + 1.8GHz
OCTA-CORE
Memory
64GB SSD / 2GB RAM
128GB SSD / 4GB RAM
128GB SSD / 4GB RAM
Camera
8MP Rear
16MP Rear / 16MP Front
16MP Rear / 16MP Front
Docking Station
SOFTWARE
Operating System
Android 4.4
Android 7.0
Android 7.0
Software Updates
1 Year Free
Update Via Wi-Fi
1 Year Free
Update Via Wi-Fi
1 Year Free
Update Via Wi-Fi
Automatic Detection
Auto-Vin / Auto-Scan
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Auto-Vin / Auto-Scan
Scan Vin / Plate Scan
Secure Gateway Access
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
Authorized FCA Access
With Autoauth Account
License Plate Reader
Available On
Select Vehicles
Available On
Select Vehicles
Vehicle Coverage
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
US, Asian & European
1996 And Newer Passenger / Light Duty
Some Medium Duty
OBDII Test Modes
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
Service Resets
26 Service Features
26 Service Features
26 Service Features
Diesel PM
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
System Diagnostics
Access All Modules
In all systems
Access All Modules
In all systems
Access All Modules
In all systems
Component Activations
Bi-Directional Control
Bi-Directional Control
Bi-Directional Control
Enhanced Functions
Coding + Adaptations
Coding Adaptations
Coding Adaptations
ADAS Calibration
ADASUpgrade & Frame Kit*
Purchase Required
ADASUpgrade & Frame Kit*
Purchase Required
Battery Analysis
MAXIBAS Software**
MAXIBAS Software**
Complete TPMS Function
TPMS Diagnostics, Service & 1-Sensor Programming
Topology Module Mapping
Oscilloscope
Split Screen Display

Videos
