Autel MaxiSys MS919 Automotive Diagnostic Tablet

Autel MaxiSys MS919 Automotive Diagnostic Tablet

Original price was: $4,995.00.Current price is: $4,745.00.

5% Off

Call for special pricing.

The MaxiSys MS919 by Autel is a cutting-edge diagnostic tool that provides technicians with the guidance and tools they need to confirm repairs. Powered by an Octa-core processor and featuring a large 9.7-inch touchscreen tablet, the MS919 is packed with features to make diagnostics and repairs faster and easier. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester – making it a powerful tool for troubleshooting. And with the MS919 software, technicians have access to a large library of preset tests and extensive waveform data, so they can quickly identify and fix problems. Plus, DTC and sensor-specific test options help technicians test more accurately by providing probe and component location diagrams. Includes docking station and split screen capabilities.

Original price was: $4,995.00.Current price is: $4,745.00.

5% Off

Affirm Financing: For personal use. Terms apply.

The MS919 includes:

  • 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
  • 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
  • Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
  • Oscilloscope Preset Guided & Component Tests / Waveform Library
  • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
  • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • Relevant Cases: DTC Troubleshooting / Repair Tips
  • Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
  • Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
  • ScanVIN: Barcode or Text Recognition with Camera
  • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account

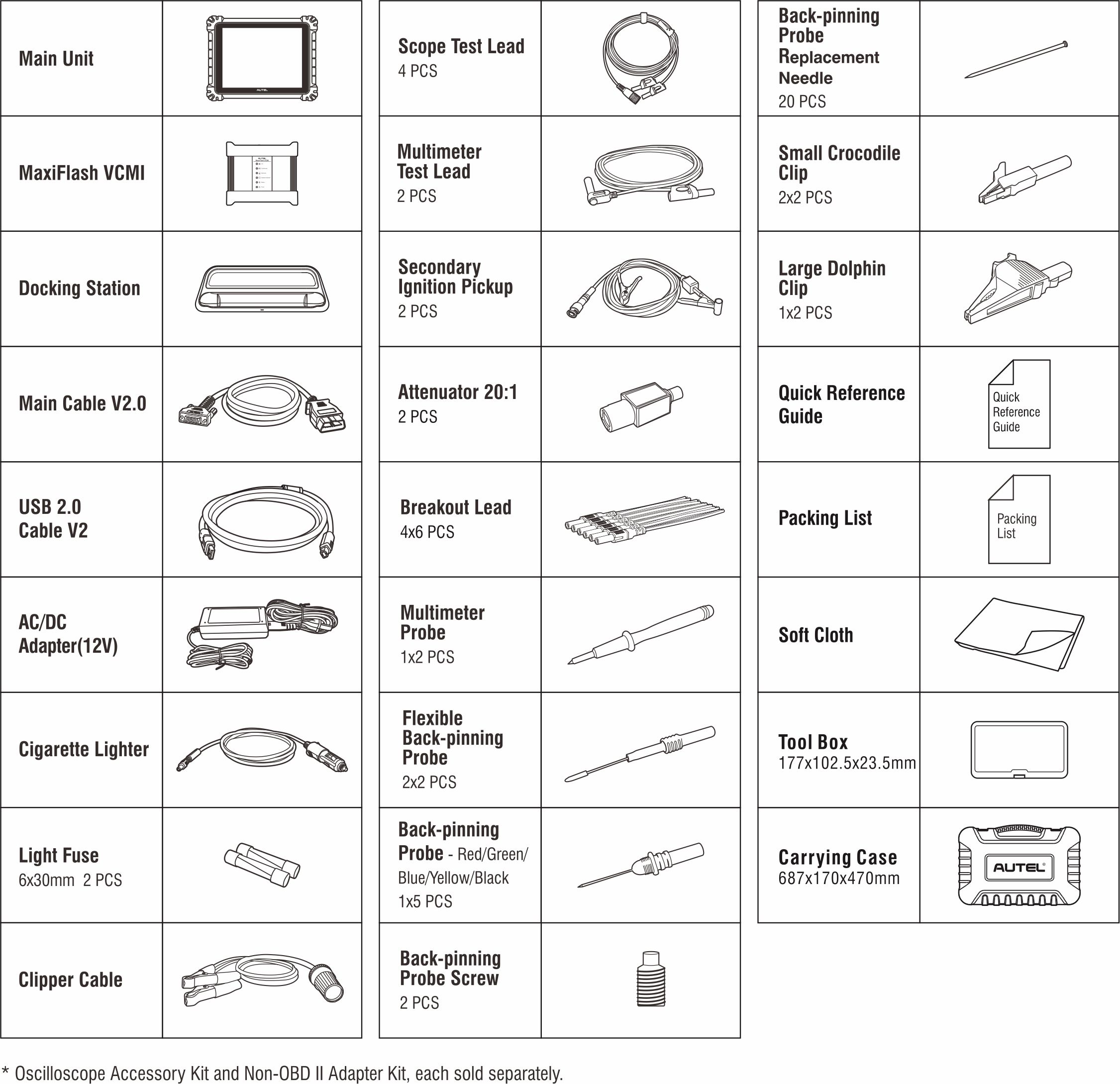

  • Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
  • Enhanced Diagnostic Reports: PreSCAN & PostSCAN
  • Dual Wi-Fi Connection
  • 15000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

Specification

Operating System Android 7.0
Processor Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity
  • Wi-Fix2 (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera (rear)
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery
  • 15000mAh 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature  0 to 50°C (32 to 122°F)
Storage Temperature  -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Comparison

Comparison MS908SP MSELITE MS909 MS919 MSULTRA
Hardware MaxiFlash Elite MaxiFlash Elite & MaxiSYS VCI-100 MaxiFlash VCI MaxiFlash VCI

Including Latest Protocols

MaxiFlash VCMI

Including Latest Protocols

Color Screen 9.7 in Touchscreen

1024 x 768 DPI / LED Color Screen

9.7 in Touchscreen

2048 x 1536 DPI / LED Color Screen

9.7 in Touchscreen

1536 x 2048 DPI / TFT-LCD Asahi Glass

9.7 in Touchscreen

1536 x 2048 DPI / TFT-LCD Asahi Glass

12.9 in Touchscreen

2732 x 2048 DPI / TFT-LCD Corelle Glass

Processor 1.3GHz + 1.7GHz

Hexa-Core

1.8GHz

Quad-Core

2.3GHz + 1.7GHz

Octa-Core

2.3GHz + 1.7GHz

Octa-Core

2.3GHz + 1.7GHz

Octa-Core

Memory/RAM 64GB SSD / 2GB RAM 64GB SSD / 2GB RAM 128GB SSD / 4GB RAM 128GB SSD / 4GB RAM 256GB SSD / 4GB RAM
Battery 11,000 mAh 13,600 mAh 15,000 mAh

8 hours continuous operation

15,000 mAh

8 hours continuous operation

18,000 mAh

8 hours continuous operation

Camera 8MP 8MP 16MP Rear/5MP Front 16MP Rear/5MP Front 16MP Rear/5MP Front
Docking Station Included Included
Software
Operating System Android 4.4.2 Android 4.4.4 Android 7.0 Android 7.0 Android 7.0
Software Updates 1 Year FREE 2 Years FREE 1 Year FREE 1 Year FREE 1 Year FREE
Automatic Detection SCANVIN / Auto-VIN / Auto-Scan Auto-VIN / Auto-Scan SCANVIN / Auto-VIN / Auto-Scan SCANVIN / Auto-VIN / Auto-Scan SCANVIN / Auto-VIN / Auto-Scan
Split Screen Display View Multiple Functions at Once
Advanced VCMI
5-in-1 Device
VCI, Oscilloscope, Multimeter, Waveform Generation, Can Bus Check VCI, Oscilloscope, Multimeter, Waveform Generation, Can Bus Check
Repair Assist Guided Procedures with DTC Analysis & Fault Code Solutions Guided Procedures with DTC Analysis & Fault Code Solutions Guided Procedures with DTC Analysis & Fault Code Solutions
Topology Module Mapping Color Coded All System Status Screen on Supported Vehicles Color Coded All System Status Screen on Supported Vehicles Color Coded All System Status Screen on Supported Vehicles
Relevant Cases DTS Troubleshooting DTS Troubleshooting DTS Troubleshooting
Repair Tips Video Library
Technical Service Bulletins Available on Select Vehicles Available on Select Vehicles Available on Select Vehicles
Secure Gateway Access Authorized FCA Access
with Autoauth Account
Authorized FCA Access
with Autoauth Account
Authorized FCA Access
with Autoauth Account
Authorized FCA Access
with Autoauth Account
Authorized FCA Access
with Autoauth Account
License Plate Reader Available on Supported Vehicles Available on Supported Vehicles Available on Supported Vehicles
Features
Vehicle Diagnostics Passenger / Light Duty
Some Medium Duty
Passenger / Light Duty
Some Medium Duty
Passenger / Light Duty
Some Medium Duty
Passenger / Light Duty
Some Medium Duty
Passenger / Light Duty
Some Medium Duty
Basic & Special Functions Domestic, Asian & European

1996 and Newer

Domestic, Asian & European

1996 and Newer

Domestic, Asian & European

1996 and Newer

Domestic, Asian & European

1996 and Newer

Domestic, Asian & European

1996 and Newer

OBDII Test Modes All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
All 10 Test Modes
Live & Freeze Frame / Enhanced Mode 6
Service Resets 17+ Service Features 17+ Service Features 26 Service Features 26 Service Features 26 Service Features
Diesel PM Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
Reset Diesel Emissions
Light & Medium Duty Vehicles
System Diagnostics Access All Modules
in All Systems
Access All Modules
in All Systems
Access All Modules
in All Systems
Access All Modules
in All Systems
Access All Modules
in All Systems
Component Activations Bi-Directional Control Bi-Directional Control Bi-Directional Control Bi-Directional Control Bi-Directional Control
Enhanced Functions Advanced Coding + Adaptations Advanced Coding + Adaptations Advanced Coding + Adaptations Advanced Coding + Adaptations Advanced Coding + Adaptations

Downloads

MaxiSYS MS919 Flyer

MaxiSYS Comparison Chart

MaxiSYS Manual
