MaxiSYS MS909S2 + ADAS Calibration Software

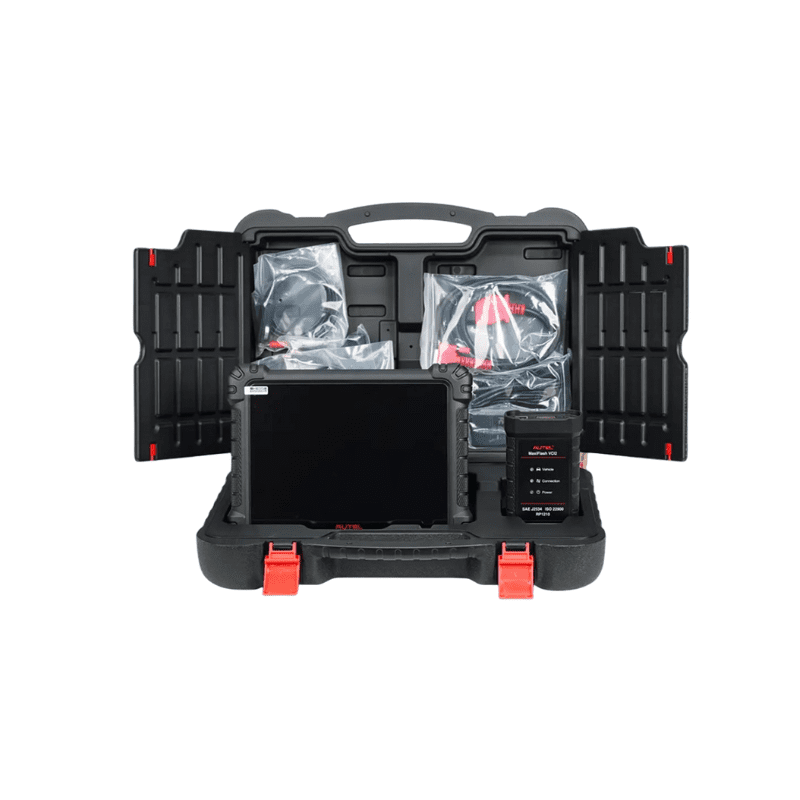

MaxiSYS MS909S2 + ADAS Calibration Software - Image 2

MaxiSYS MS909S2 + ADAS Calibration Software

SKU: MS909S2ADAS

$5,794.00

What does it cover

  • Vehicles: U.S., Asian, and European vehicles 1996 and newer

  • Brands: OE-level coverage for all major vehicle brands

  • ADAS systems: Dynamic + static calibrations; static support for cameras, radar, lidar, and night vision (static needs targets/calibrators—sold as package options)

  • Networks & protocols: Multi-network communication coverage via wireless VCI, extensive protocol support, and J2534 pass-through

  • Security gateways (newer vehicles): Authorized access for Mercedes‑Benz, Nissan, VW/Audi, and Stellantis (AutoAuth required; VW/Audi token/sub purchase)

What does it do

  • Diagnoses and services vehicles with OE-level diagnostic + service functions

  • Runs Topology 3.0 network analysis to map/ping/monitor individual control modules across multiple networks

  • Analyzes live data with enhanced live data tools

  • Performs ADAS calibrations (dynamic and static)

  • Conducts multi-point digital vehicle inspections via the MAX inspection app

  • Supports hands-free navigation with a tablet navigation assistant

  • Enables pass-through programming using J2534 (with the wireless VCI)

  • Supports Remote Expert sessions to connect with an OE-tool programming expert remotely

MaxiSYS MS909S2 + ADAS Calibration Software
MaxiSYS MS909S2 + ADAS Calibration Software - Image 2

• 11-inch next-generation advanced diagnostic Android-based touchscreen tablet with a enhanced wireless MaxiFLASH VCI2 VCI and J2534 pass-thru programming device.
• Ships with ADAS calibration software
• Industry-leading U.S., Asian, and European vehicle coverage, with all systems diagnostics, pre- and post-scan reporting, bi-directional testing, hidden and special functions, coding, and adaptations.
• Topology 3.0 dynamic network analysis with the ability to ping and monitor individual module communications across multiple networks, and enhanced Live Data analysis.
• The MS909 S2 tablet also features multi-point digital vehicle inspection application, MAX, a hands-free tablet navigation assistant, and one year of free access to MOTOR TruSpeed integrated repair information.
• Industry-leading Security-Gateway Access (Mercedes-Benz, Nissan, VW/Audi, and Stellantis. AutoAuth account required, VW/Audi on-tool token/sub purchase.)
• The MS909 S2 features a 2.7 GHz 8-core processor for superior diagnostic speed, the dynamic Android 13 OS, increased 256 GB storage, fast Wi-Fi 6.0, an advanced MaxiFLASH VCI2 with multi-protocol support and J2534-pass-through capability.
• Enhanced PID analysis with Live Data Fusion, Reference Sampling, and Parameter Graphing, and Real-time.
• Upgrade accessory purchase options: Video (borescope) Scope MV108S/105S), and Battery Tester (BT506).
• The MS909 S2 is covered by a one-year limited warranty and receives one-year of free software updates.
