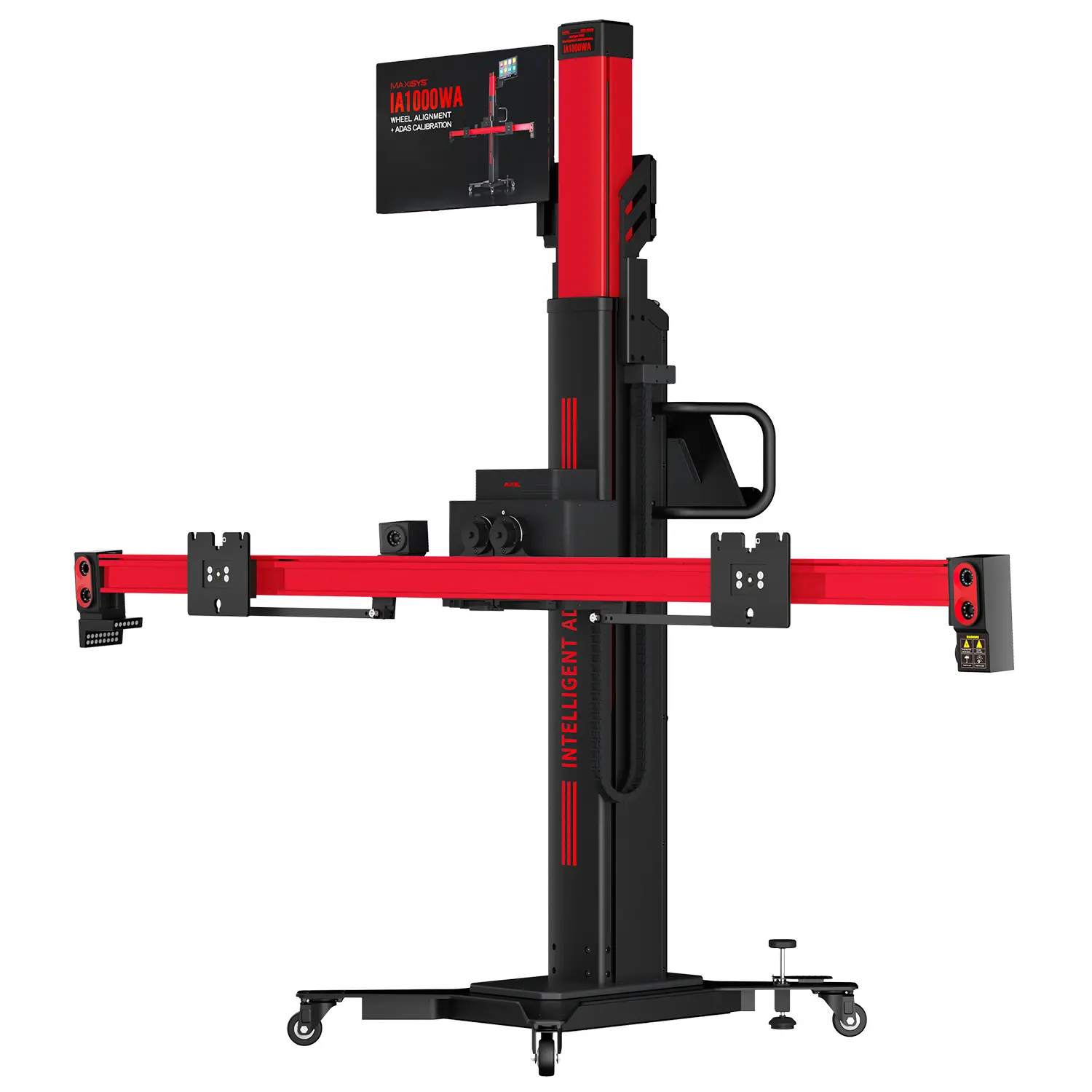

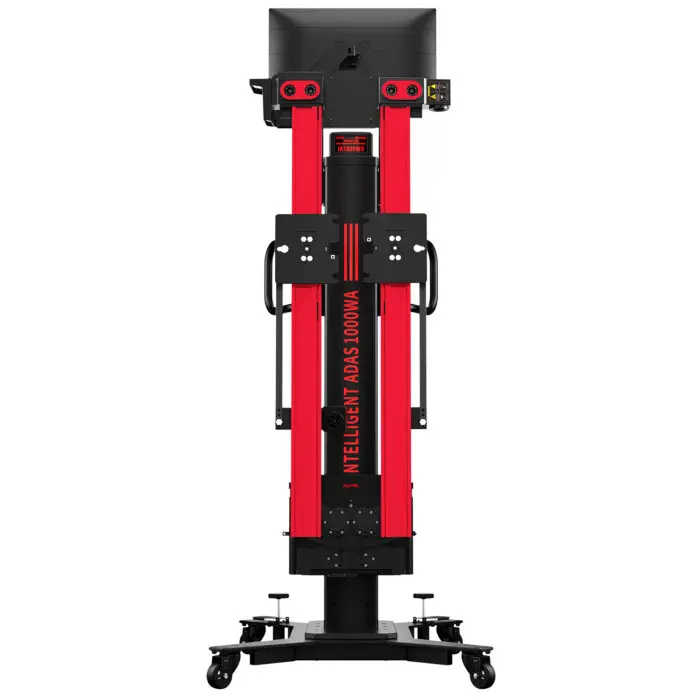

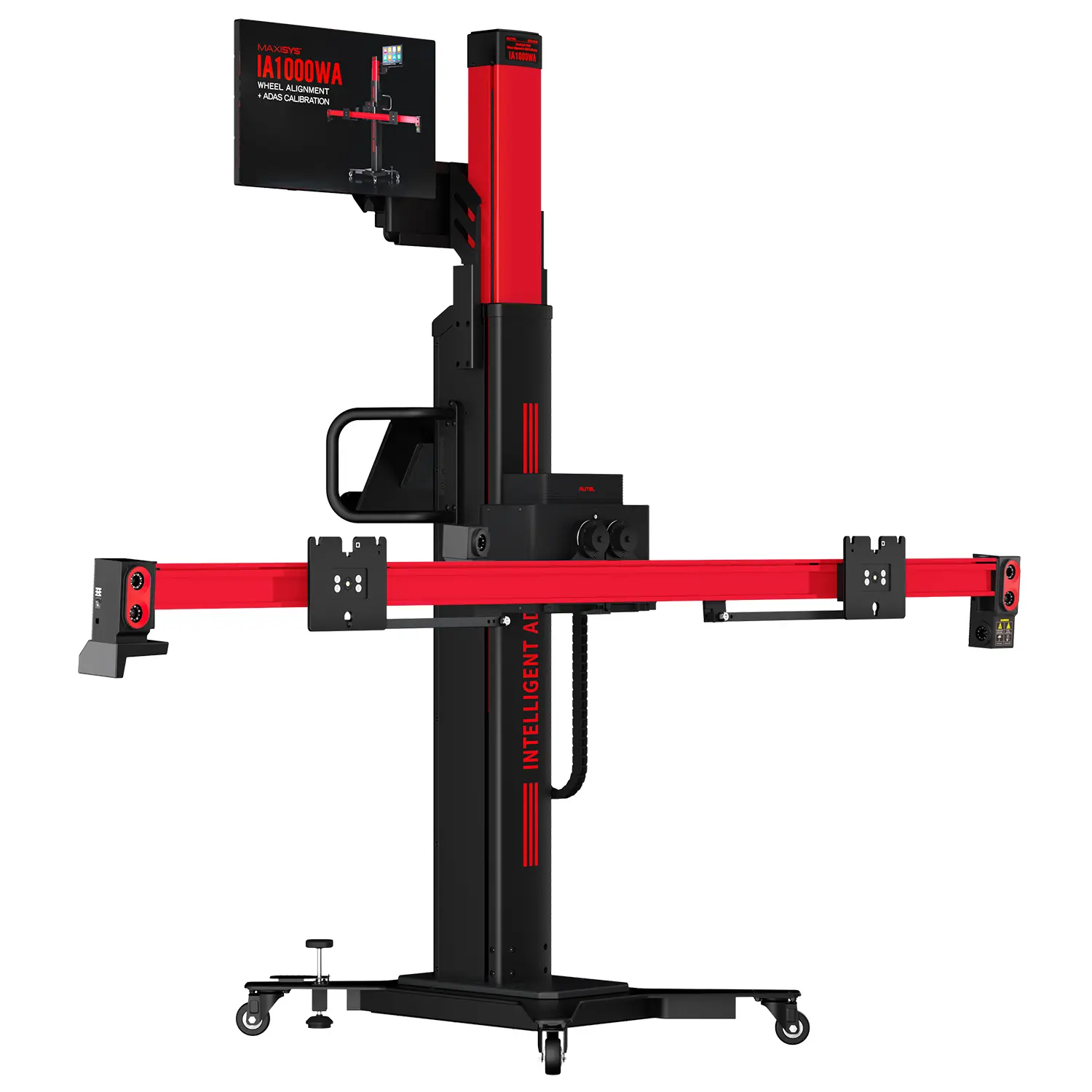

– Automated Alignment and ADAS Calibration System with robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator and AVM mat placement capable of performing four-wheel alignment and ADAS calibrations.
– Includes 24” touchscreen display that attaches to frame unit, four tire clamps, steering wheel and brake lock, distance target, two wheel chocks, and two AVM-placement lasers.

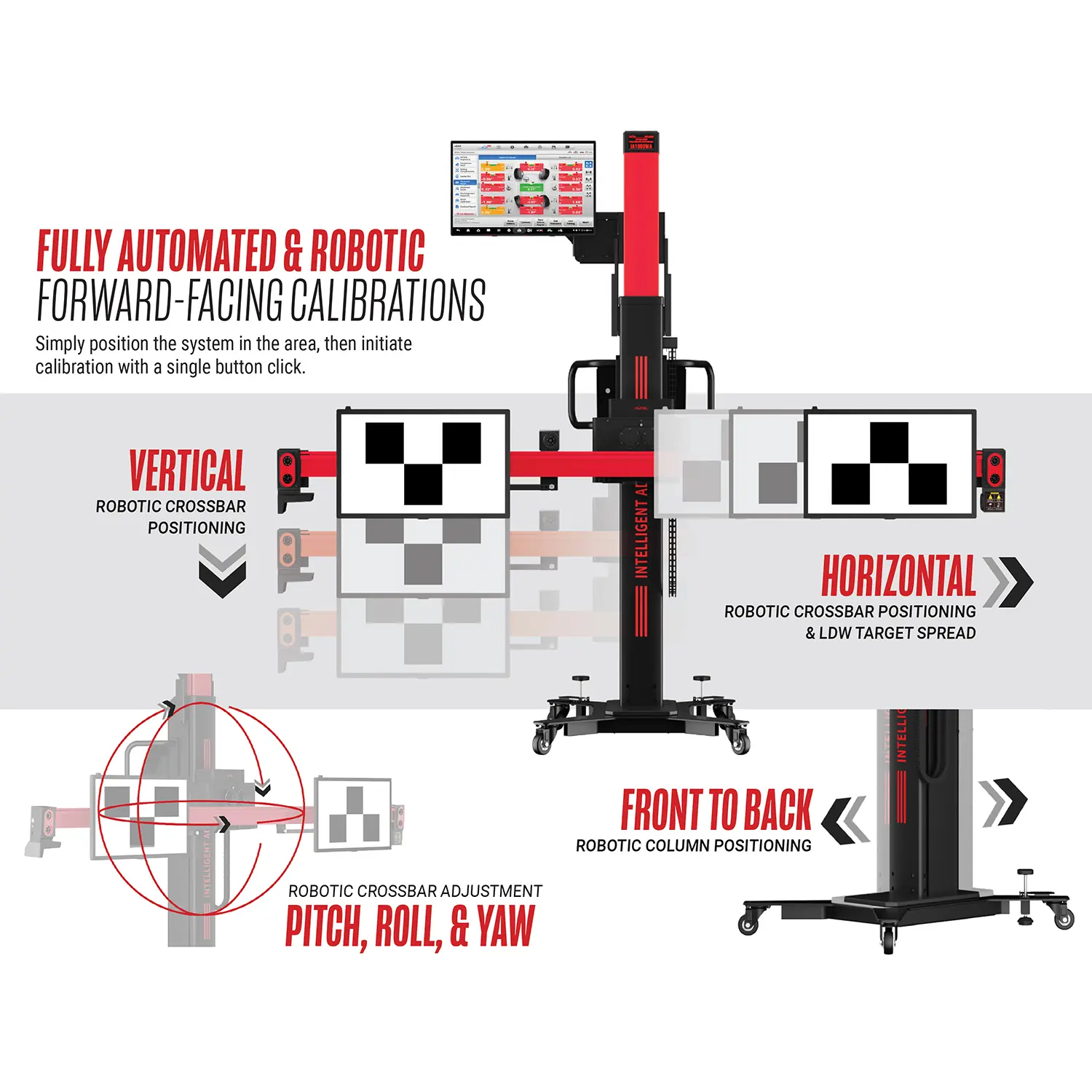

– Unit provides one-step robotic and vertical LDW target placement via physical targets or available 27-inch attachable monitors significantly reducing manual operation and setup time.
– Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.
– Compatible with Autel targets, patterns, and calibration components, the MaxiSYS Ultra S2 tablet with IA1000 ADAS Upgrade software. Compatible with IA1000 digital target monitors. (Sold separately)
– Offers comprehensive four-wheel alignment coverage of U.S., Asian, and European vehicles with tablet and software purchase.
– Equipped with six high-definition cameras and precision-engineered wheel clamps for industry-leading accuracy to 0.02-degrees.
– Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen.
– Industry-leading dynamic and static ADAS component calibration coverage is available with software, calibration targets, and calibrator purchases.
– Includes one-year limited warranty
