Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2

SKU: MA800LDWT

Original price was: $15,500.00.Current price is: $12,950.00.

16% Off

The Autel MA800LDWT pairs an expanded LDW target set with the MS909S2 advanced diagnostic tablet, giving your shop a front camera calibration package with diagnostics included. Handle supported windshield and repair-related calibration work with the equipment needed for setup and verification, and move the modular frame between bays as your workload changes.

Sale!
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 2
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 3
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 4
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 5
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Sale!
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 2
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 3
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 4
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 5
Autel MA800LDWT Expanded LDW ADAS Calibration Package with MS909S2 - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Build a front camera service around one diagnostic platform

The MA800LDWT is a good fit when your shop needs both expanded LDW calibration equipment and an advanced diagnostic tablet. With the MS909S2 included, your team has the compatible tool for the calibration workflow as well as vehicle diagnostic work. You can plan the purchase as one package rather than source the frame, targets, and tablet individually.

Support the repair from diagnosis through calibration

Windshield replacement and camera-related repairs can create an additional service requirement before the vehicle is returned to the customer. This package equips you for supported front camera procedures and the setup documentation that goes with them. The expanded target selection includes Alfa Romeo, and the vehicle-specific software determines the applicable static or dynamic calibration process.

Organize the equipment around your workload

The modular frame can be stored between jobs or moved where the next supported calibration will take place. A flight case keeps the small targets organized during storage and transport. Confirm coverage for the vehicles you service most often and prepare a suitable working area. Triad can help you assess that fit before you invest.

  • MA800 mobile ADAS calibration frame

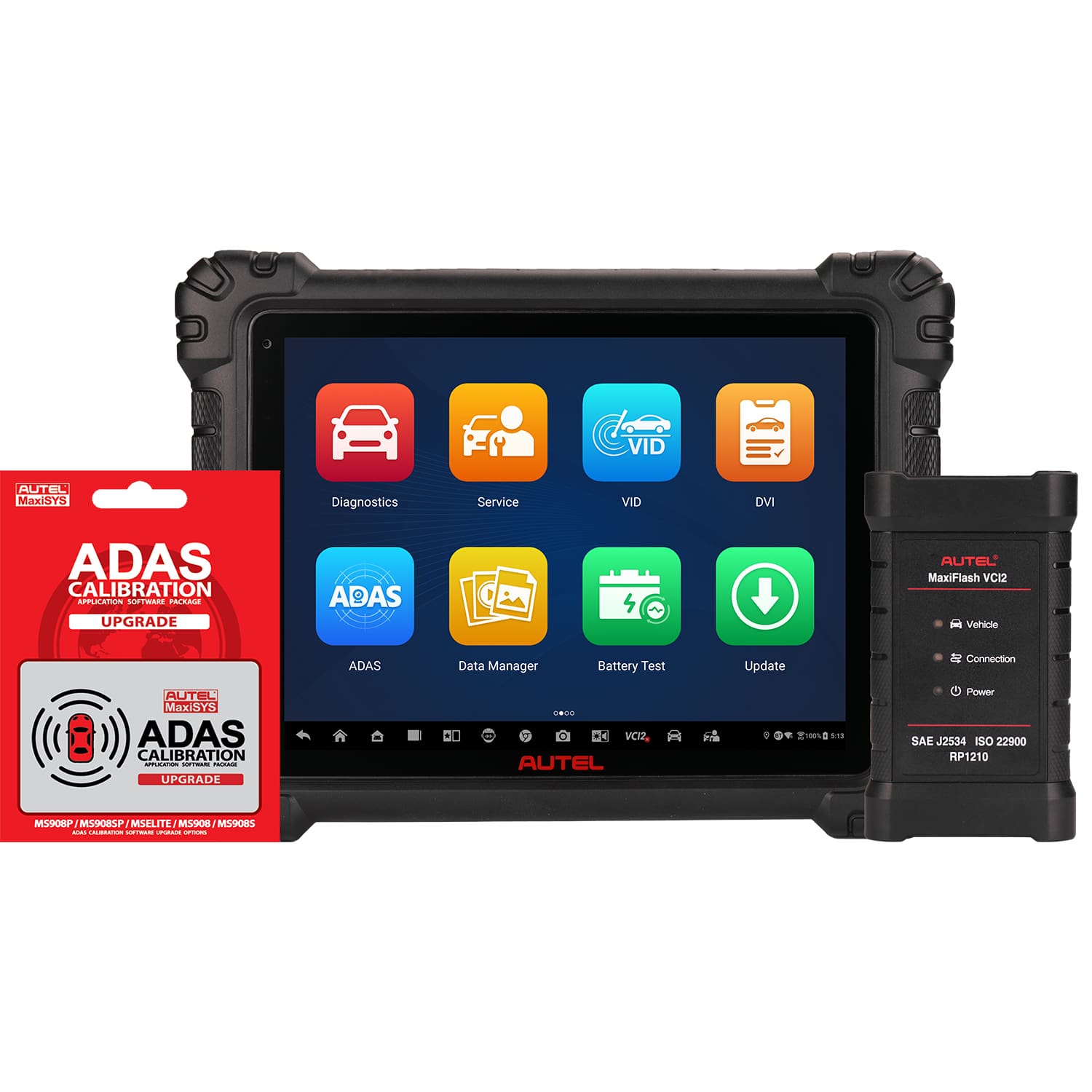

  • MaxiSYS MS909S2 advanced diagnostic tablet
  • ADAS calibration software upgrade card with 12 months of calibration coverage updates
  • Integrated tablet holder
  • Left and right positioning laser units

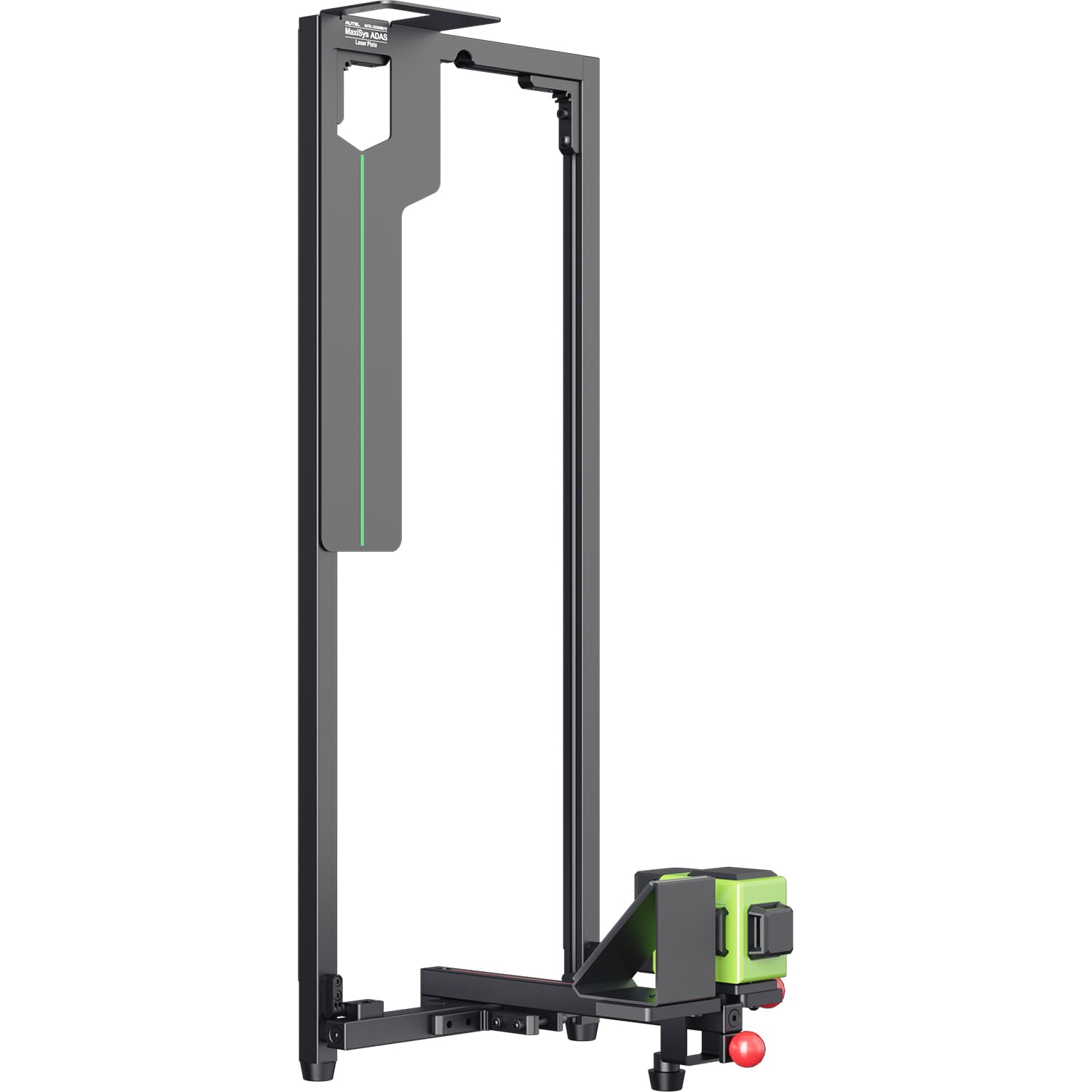

  • Alignment stand
  • Laser measure unit
  • Two two-line lasers, including one for vehicle centerline identification
  • Laser plate
  • Laser-assisted reflector
  • Two rechargeable battery packs
  • Power adapter

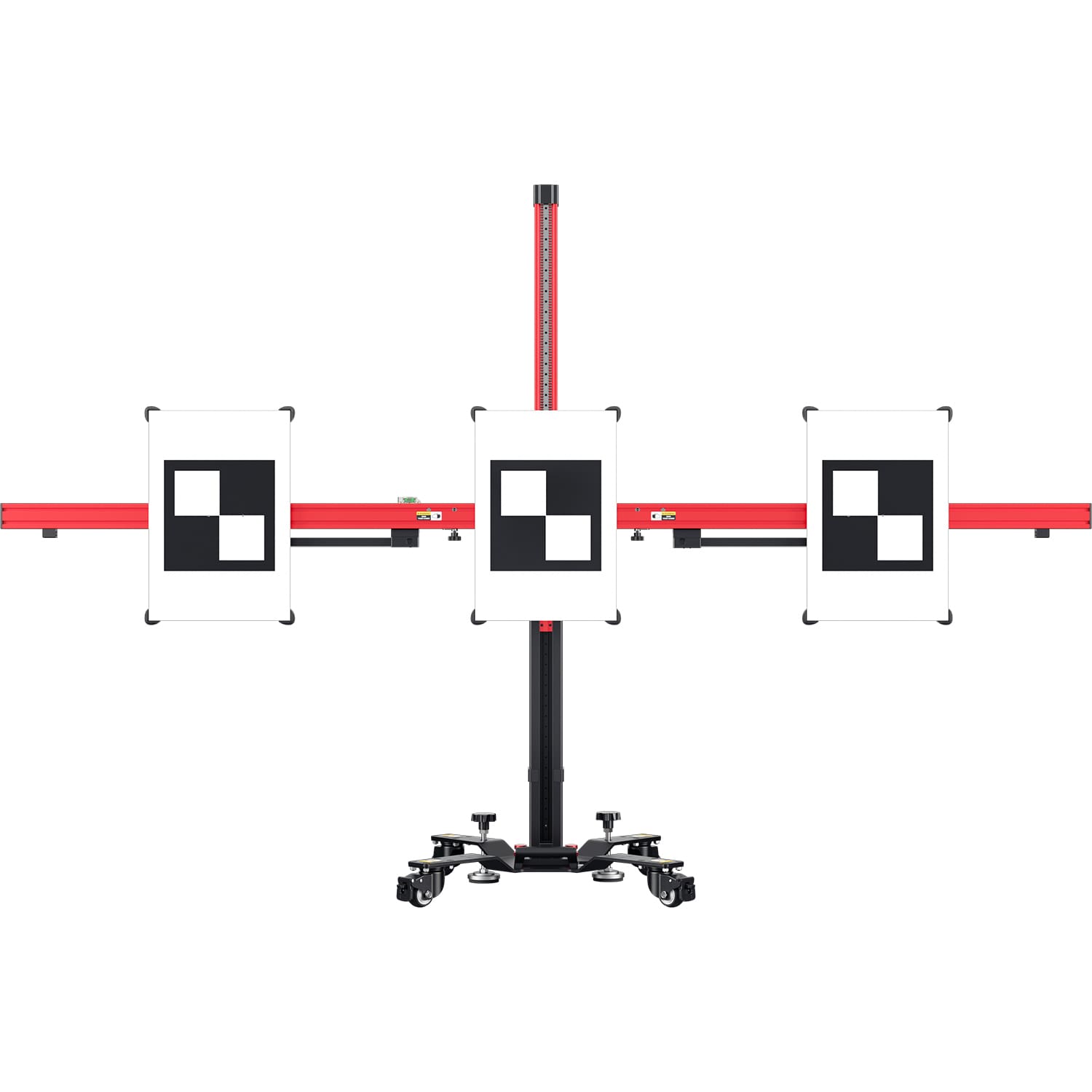

  • LDW camera calibration targets for:
    • Honda / Acura
    • Hyundai / Kia
    • Mazda
    • Mercedes-Benz
    • Mitsubishi
    • Nissan / Infiniti
    • Subaru
    • Toyota / Lexus
    • Volkswagen / Audi / Porsche
    • Alfa Romeo
  • Target flight case for storage and transport

  • Pairs the expanded LDW targets with the MS909S2 advanced diagnostic tablet for supported front camera calibration and vehicle diagnostics.
  • Includes an ADAS activation card with 12 months of calibration coverage updates; the tablet also comes with one year of software updates.
  • Supports the static or dynamic calibration method specified for an eligible vehicle.

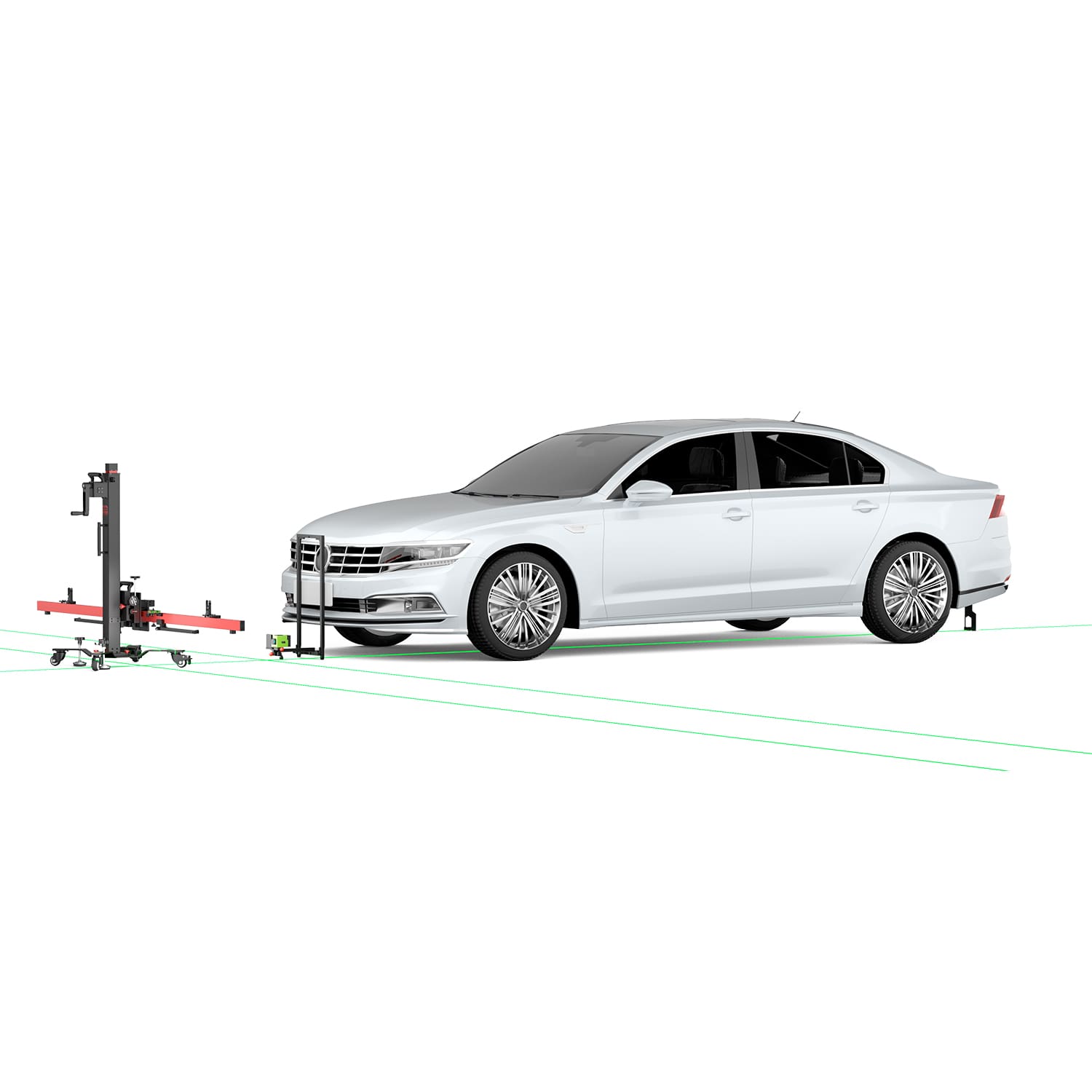

  • Locates the vehicle centerline and guides target positioning through laser components, eliminating the need for plumb bobs or marked floor reference points during that positioning process.
  • Lets technicians tune pitch, roll, and yaw individually before beginning the calibration.
  • Delivers target-height, target-distance, and vehicle-to-frame readings to the MS909S2 over Bluetooth for comparison with OEM specifications and documented setup results.

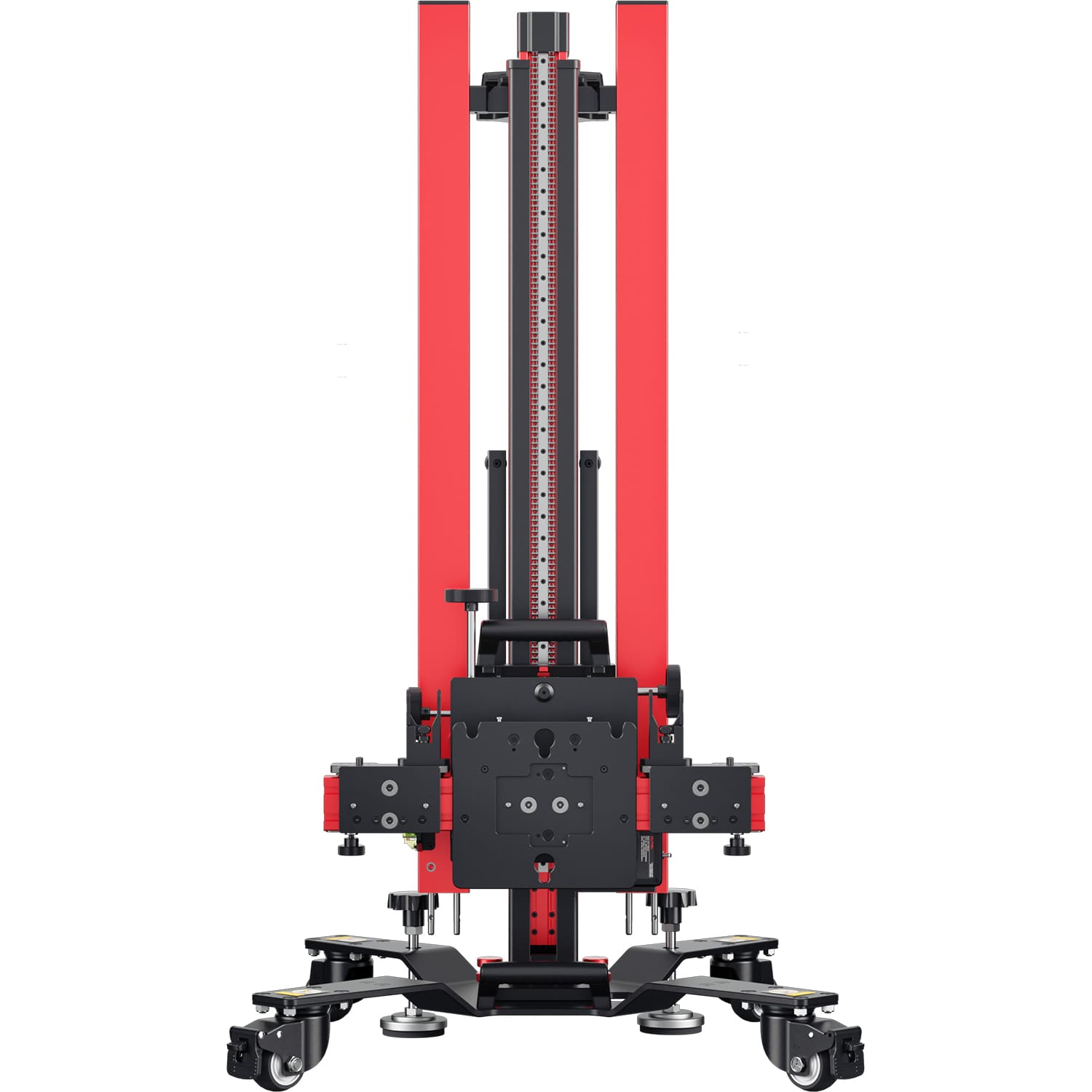

  • Moves between bays as a four-part frame, with tool-free assembly and breakdown in roughly 60 seconds.
  • Keeps the diagnostic tablet beside the work on its integrated holder.
  • Includes a flight case to organize the small targets for storage and transport.

  • System Type: Mobile ADAS calibration system
  • Primary Calibration Application: Front camera / LDW calibration
  • Positioning: Laser-guided vehicle centerline and target positioning
  • Frame Design: Four-piece modular, tool-free assembly
  • Alignment Adjustments: Independent pitch, roll, and yaw
  • Measurement Validation: Target height, target distance, and vehicle-to-frame distance
  • Included Tablet: MaxiSYS MS909S2
  • ADAS Software: Calibration software upgrade card included
  • ADAS Coverage Updates: 12 months included
  • Calibration Types: Static and dynamic on supported vehicles
  • Power: Two rechargeable battery packs with power adapter
  • Target Storage: Flight case included
  • Measurement Communication: Bluetooth
  • Frame Weight, Fully Assembled: 86.6 lb
  • Frame Height: 54 in
  • Frame Floor Footprint: 25 in W × 24 in D
  • Footprint Note: Frame dimensions do not represent the required calibration bay size.

  • MA800 Hardware: 1-Year Limited Warranty
  • MS909S2 Tablet: 1-Year Limited Warranty
  • MS909S2 Software Updates: 1 year included
  • ADAS Calibration Coverage Updates: 12 months included

Product Documentation

Included front camera / LDW target applications

Honda / Acura; Hyundai / Kia; Mazda; Mercedes-Benz; Mitsubishi; Nissan / Infiniti; Subaru; Toyota / Lexus; Volkswagen / Audi / Porsche; Alfa Romeo.

This LDW package focuses on front camera calibration. Other sensor systems may require additional targets and calibrators.

Vehicle coverage

The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles with the appropriate tablet software, targets, and calibrators. This platform-level coverage does not mean every included package covers every vehicle or ADAS system. Confirm the exact year, make, model, sensor system, and required target before purchase.

Where it fits your shop

  • Glass shops performing required front camera calibration after windshield replacement
  • Collision centers handling calibration required after body or sensor-related repairs
  • Repair shops and ADAS service providers adding supported calibration work in-house
  • Facilities moving equipment between service bays or locations

Follow the vehicle-specific OEM procedure, including workspace and vehicle preparation requirements. A mobile frame still needs a suitable calibration environment.

  1. What is included with the MA800LDWT?
    The MA800LDWT includes the MA800 mobile frame, LDW camera targets, the MaxiSYS MS909S2 tablet, and an ADAS calibration software upgrade card. See What’s Included for the package details.
  2. Do I need an ADAS-enabled tablet?
    The included MS909S2 is the package’s compatible diagnostic tablet. Activate the included ADAS calibration software upgrade card to access supported calibration functions.
  3. Does this package include radar calibration equipment?
    The included LDW target set is for supported front camera calibrations. Radar and other sensor applications may require additional equipment. Triad can help you identify the targets and calibrators needed for your vehicle mix.
  4. What is the difference between MA800LDW and MA800LDWT?
    Both packages include the MA800 frame, expanded LDW targets, and ADAS software upgrade card with 12 months of calibration coverage updates. MA800LDWT also includes the MS909S2 diagnostic tablet. MA800LDW requires your own compatible tablet.
  5. How does the MA800 verify calibration setup?
    Bluetooth-connected laser measurements are sent to a compatible MaxiSYS tablet to check setup against OEM specifications and document the results. These checks validate positioning measurements; successful calibration still depends on completing the vehicle-specific procedure.
  6. Does the MA800 cover every ADAS-equipped vehicle?
    The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles when equipped appropriately. Confirm coverage for the exact vehicle and ADAS system, along with the required software, targets, and calibrators.
  7. Can I move the MA800 between bays or locations?
    Yes. The four-piece frame assembles tool-free and breaks down in approximately 60 seconds for transport and storage. Fully assembled, the frame weighs 86.6 lb. Each calibration location must meet the applicable workspace requirements.
  8. How much space does the MA800 require?
    The frame footprint is 25 inches wide by 24 inches deep, and its height is 54 inches. These are frame dimensions, not the calibration bay requirement. Working space and target placement depend on the vehicle’s OEM procedure.
  9. Who can help me choose the right MA800 package?
    Contact Triad at 317-939-3690 or [email protected]. We can help you match the frame, tablet, software, and targets to your shop’s existing equipment and planned calibration work.
