Autel MA800LDW Expanded LDW ADAS Calibration Package
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 2
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 3
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 4
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 5
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 6

Autel MA800LDW Expanded LDW ADAS Calibration Package

SKU: MA800LDW

Original price was: $11,500.00.Current price is: $10,500.00.

9% Off

Already own a compatible MaxiSYS tablet? The Autel MA800LDW adds a mobile ADAS calibration frame, expanded front camera targets, and software activation to the tool you have. Build your LDW calibration capability without purchasing another tablet, with laser-assisted positioning to reduce manual setup work and measurements you can verify and document.

Sale!
Autel MA800LDW Expanded LDW ADAS Calibration Package
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 2
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 3
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 4
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 5
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Sale!
Autel MA800LDW Expanded LDW ADAS Calibration Package
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 2
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 3
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 4
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 5
Autel MA800LDW Expanded LDW ADAS Calibration Package - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Put your existing MaxiSYS tablet to work on front camera calibration

The MA800LDW is a targeted expansion for a shop that already has a compatible diagnostic tablet. You add the frame, expanded LDW targets, and ADAS calibration software activation while keeping the tablet your technicians already use. That keeps the purchase focused on the equipment needed to build this service capability.

Match the target set to your repair mix

The expanded selection includes Alfa Romeo alongside the other listed vehicle makes. It is intended for supported front camera jobs, making it useful for glass and repair work where the OEM requires camera recalibration. Radar and other sensor applications require the appropriate additional equipment; evaluate those needs separately when planning your offering.

Make calibration equipment easier to share

A frame that can be disassembled and moved helps when one setup serves multiple bays or service locations. The target flight case also gives your team a place to store and transport small targets. Each working location still needs to meet the vehicle’s calibration conditions. Triad can help you confirm tablet eligibility, required targets, and the software path before purchase.

  • MA800 mobile ADAS calibration frame
  • ADAS calibration software upgrade card with 12 months of calibration coverage updates
  • Integrated tablet holder
  • Left and right positioning laser units

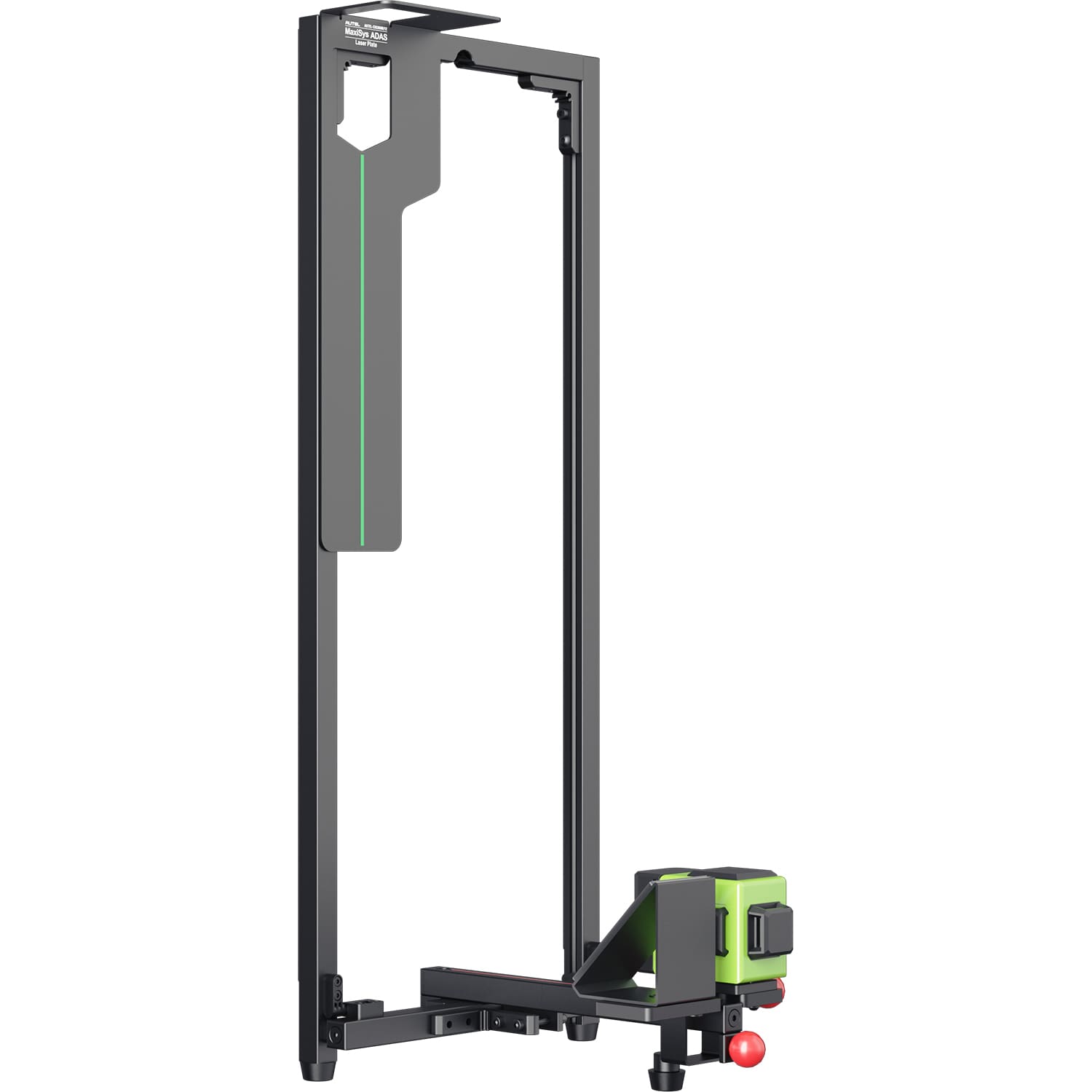

  • Alignment stand
  • Laser measure unit
  • Two two-line lasers, including one for vehicle centerline identification
  • Laser plate
  • Laser-assisted reflector
  • Two rechargeable battery packs
  • Power adapter

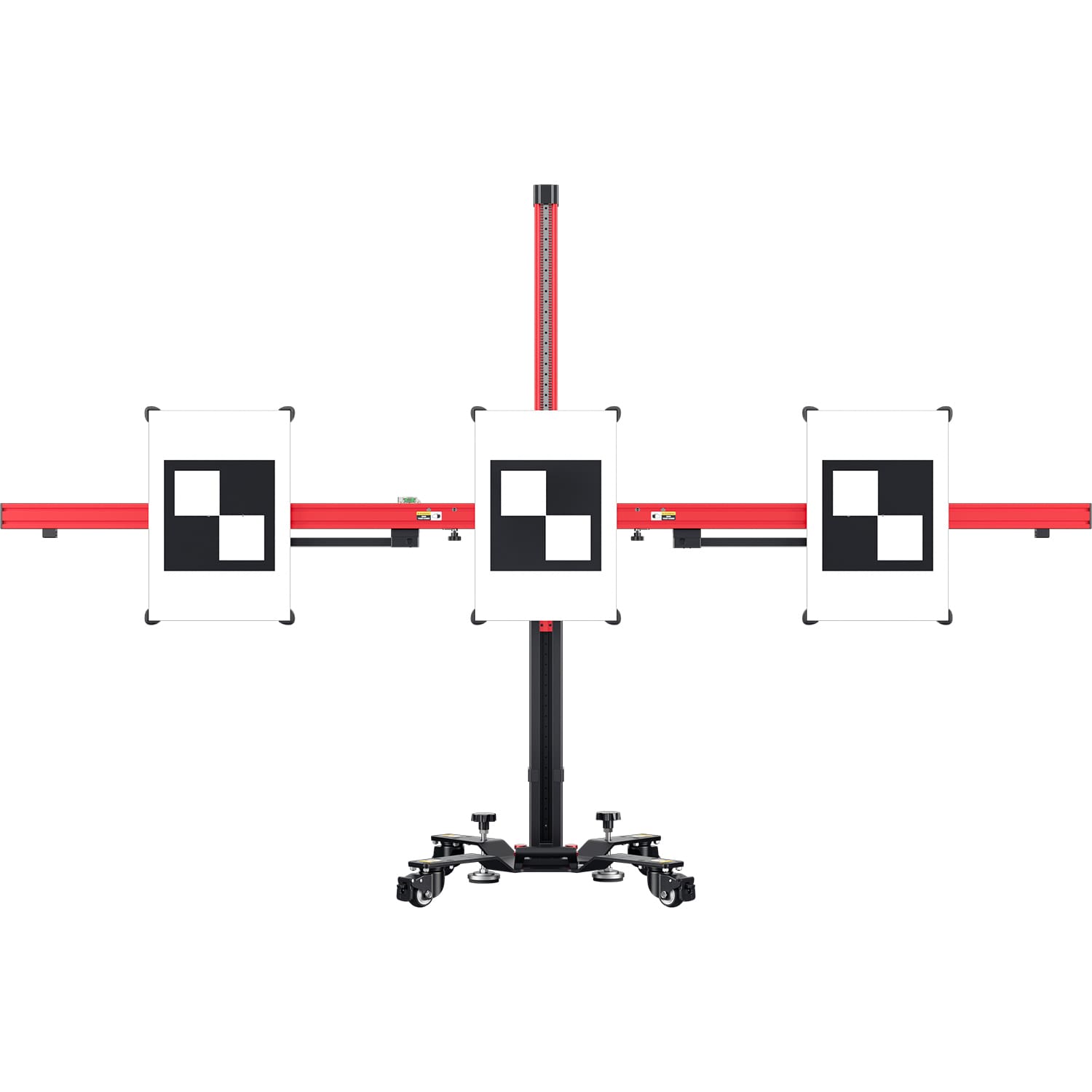

  • LDW camera calibration targets for:
    • Honda / Acura
    • Hyundai / Kia
    • Mazda
    • Mercedes-Benz
    • Mitsubishi
    • Nissan / Infiniti
    • Subaru
    • Toyota / Lexus
    • Volkswagen / Audi / Porsche
    • Alfa Romeo
  • Target flight case for storage and transport

Not included: MaxiSYS tablet.

  • Expands front camera target selection to the listed LDW applications, including Alfa Romeo, for shops using an existing compatible MaxiSYS tablet.
  • Adds ADAS calibration software activation and 12 months of calibration coverage updates through the included upgrade card.

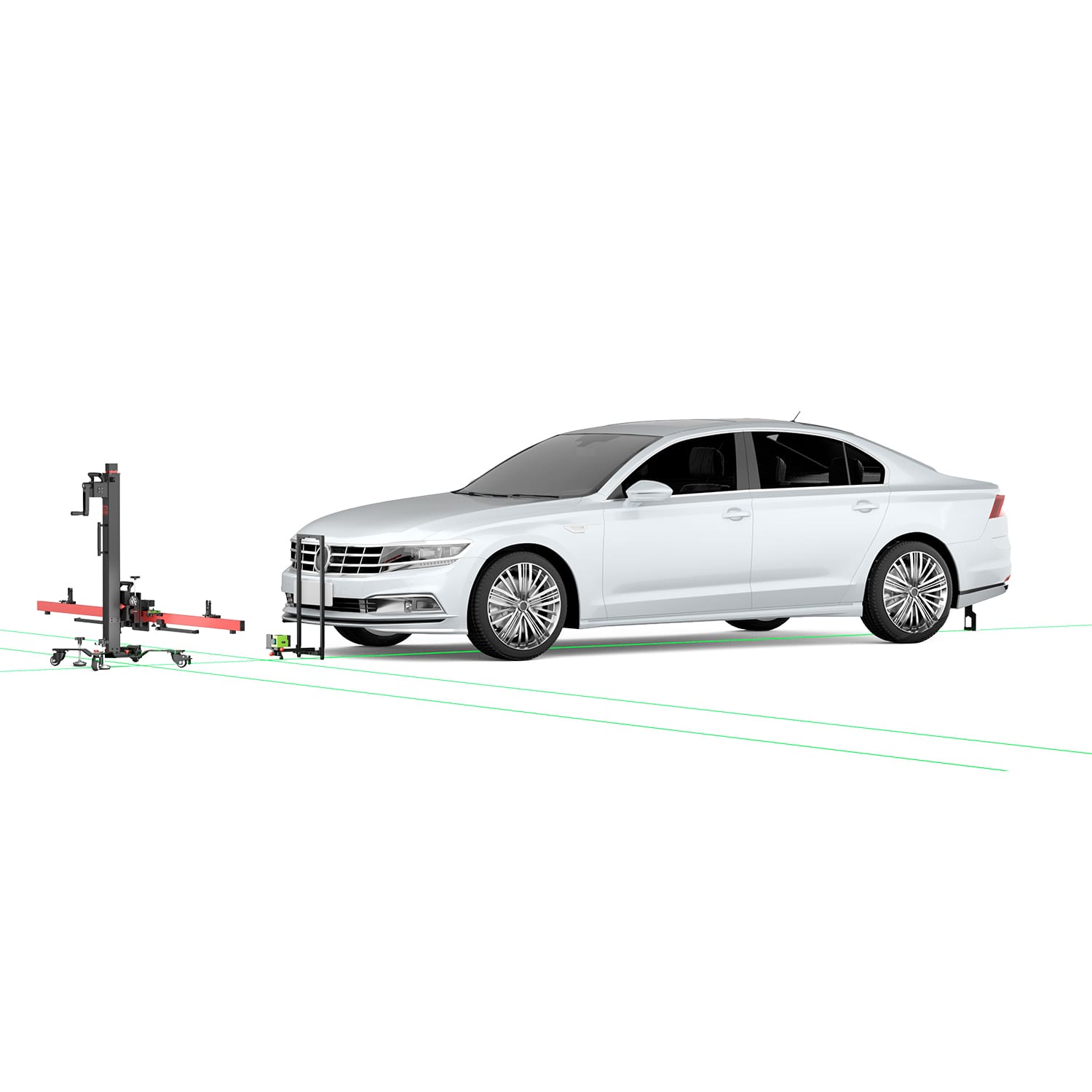

  • Guides frame placement relative to the vehicle centerline with lasers, reducing reliance on manual layout methods, plumb bobs, and floor markings.
  • Adjusts frame pitch, roll, and yaw separately so the technician can correct each aspect of alignment.
  • Verifies target height, target distance, and the vehicle-to-frame measurement using Bluetooth-connected readings sent to your compatible tablet.
  • Captures validated setup measurements for reporting, providing a reference for the preparation completed before calibration.

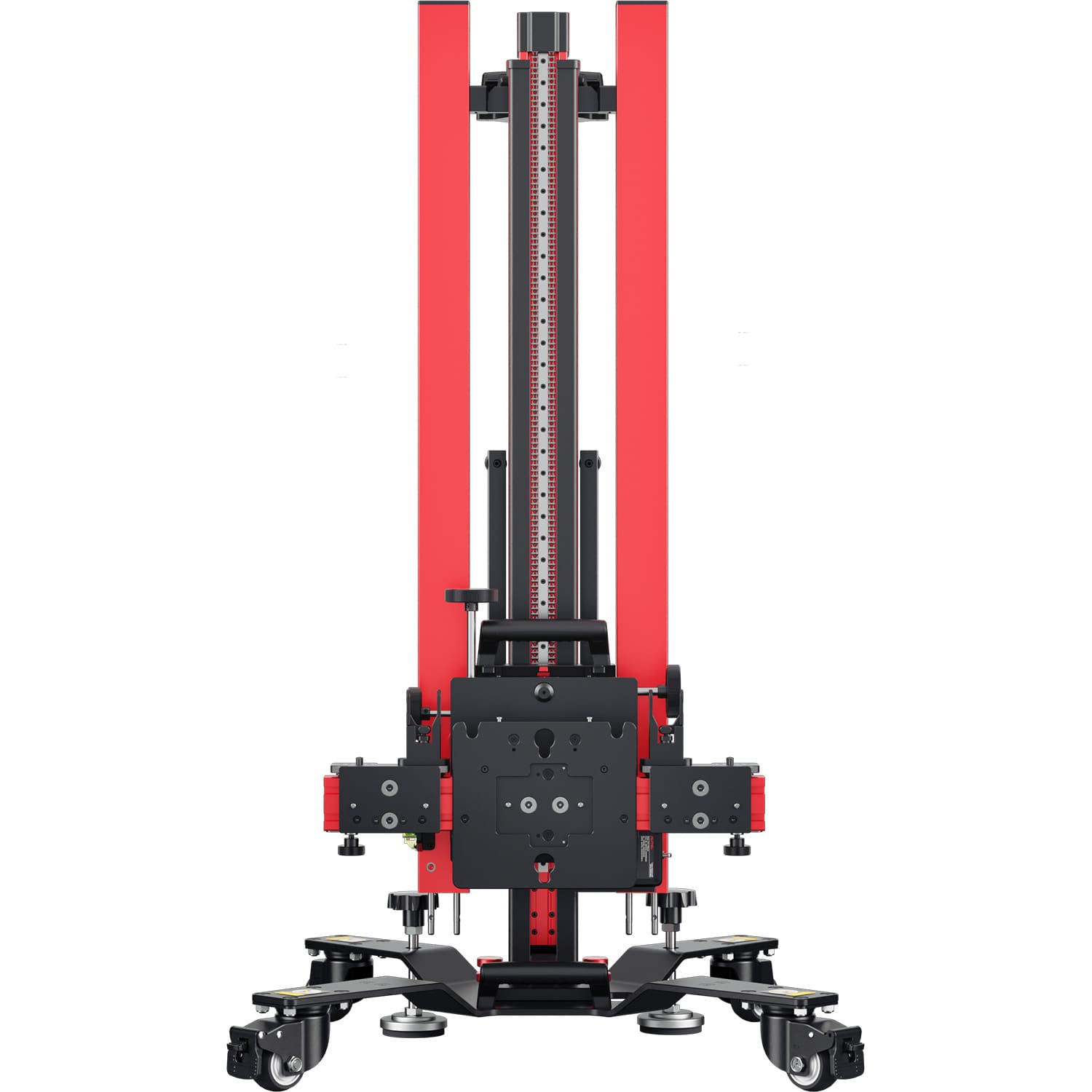

  • Packs down into four frame components in approximately one minute and reassembles tool-free when needed.
  • Provides small-target storage in the included flight case and tablet access through the frame-mounted holder.
  • Lets you select the required frame and target equipment while supplying your own compatible tablet.

  • System Type: Mobile ADAS calibration system
  • Primary Calibration Application: Front camera / LDW calibration
  • Positioning: Laser-guided vehicle centerline and target positioning
  • Frame Design: Four-piece modular, tool-free assembly
  • Alignment Adjustments: Independent pitch, roll, and yaw
  • Measurement Validation: Target height, target distance, and vehicle-to-frame distance
  • Tablet Requirement: Compatible MaxiSYS ADAS-capable tablet
  • Tablet Included: No
  • ADAS Software: Calibration software upgrade card included
  • ADAS Coverage Updates: 12 months included
  • Power: Two rechargeable battery packs with power adapter
  • Target Storage: Flight case included
  • Measurement Communication: Bluetooth
  • Frame Weight, Fully Assembled: 86.6 lb
  • Frame Height: 54 in
  • Frame Floor Footprint: 25 in W × 24 in D
  • Footprint Note: Frame dimensions do not represent the required calibration bay size.

  • MA800 Hardware: 1-Year Limited Warranty
  • ADAS Calibration Coverage Updates: 12 months included

Product Documentation

Included front camera / LDW target applications

Honda / Acura; Hyundai / Kia; Mazda; Mercedes-Benz; Mitsubishi; Nissan / Infiniti; Subaru; Toyota / Lexus; Volkswagen / Audi / Porsche; Alfa Romeo.

This LDW package focuses on front camera calibration. Other sensor systems may require additional targets and calibrators.

Vehicle coverage

The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles with the appropriate tablet software, targets, and calibrators. This platform-level coverage does not mean every included package covers every vehicle or ADAS system. Confirm the exact year, make, model, sensor system, and required target before purchase.

Where it fits your shop

  • Glass shops performing required front camera calibration after windshield replacement
  • Collision centers handling calibration required after body or sensor-related repairs
  • Repair shops and ADAS service providers adding supported calibration work in-house
  • Facilities moving equipment between service bays or locations

Follow the vehicle-specific OEM procedure, including workspace and vehicle preparation requirements. A mobile frame still needs a suitable calibration environment.

  1. What is included with the MA800LDW?
    The MA800LDW includes the MA800 mobile frame, LDW camera targets, and an ADAS calibration software upgrade card. See What’s Included for the package details.
  2. Do I need an ADAS-enabled tablet?
    Yes. A compatible MaxiSYS tablet is required and sold separately. The included ADAS software upgrade card adds calibration functionality to a compatible tablet.
  3. Does this package include radar calibration equipment?
    The included LDW target set is for supported front camera calibrations. Radar and other sensor applications may require additional equipment. Triad can help you identify the targets and calibrators needed for your vehicle mix.
  4. What is the difference between MA800LDW and MA800LDWT?
    Both packages include the MA800 frame, expanded LDW targets, and ADAS software upgrade card with 12 months of calibration coverage updates. MA800LDWT also includes the MS909S2 diagnostic tablet. MA800LDW requires your own compatible tablet.
  5. How does the MA800 verify calibration setup?
    Bluetooth-connected laser measurements are sent to a compatible MaxiSYS tablet to check setup against OEM specifications and document the results. These checks validate positioning measurements; successful calibration still depends on completing the vehicle-specific procedure.
  6. Does the MA800 cover every ADAS-equipped vehicle?
    The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles when equipped appropriately. Confirm coverage for the exact vehicle and ADAS system, along with the required software, targets, and calibrators.
  7. Can I move the MA800 between bays or locations?
    Yes. The four-piece frame assembles tool-free and breaks down in approximately 60 seconds for transport and storage. Fully assembled, the frame weighs 86.6 lb. Each calibration location must meet the applicable workspace requirements.
  8. How much space does the MA800 require?
    The frame footprint is 25 inches wide by 24 inches deep, and its height is 54 inches. These are frame dimensions, not the calibration bay requirement. Working space and target placement depend on the vehicle’s OEM procedure.
  9. Who can help me choose the right MA800 package?
    Contact Triad at 317-939-3690 or [email protected]. We can help you match the frame, tablet, software, and targets to your shop’s existing equipment and planned calibration work.
