Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 2
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 3
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 4
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 5
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 6

Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS

SKU: MA800CORE2

Original price was: $11,950.00.Current price is: $11,250.00.

6% Off

The Autel MA800CORE2 combines front camera calibration equipment with the MS906Pro2-TS diagnostic and TPMS tablet. For shops adding ADAS work alongside everyday service, it brings LDW targets, software activation, and guided setup into one package, helping you keep more supported calibration jobs in-house and get more use from your diagnostic investment.

Sale!
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 2
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 3
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 4
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 5
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Sale!
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 2
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 3
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 4
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 5
Autel MA800CORE2 LDW ADAS Calibration Package with MS906Pro2-TS - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Make ADAS part of your everyday service offering

The MA800CORE2 suits a shop that wants front camera calibration capability alongside vehicle diagnostics and TPMS service. The MS906Pro2-TS supports work beyond the calibration bay, so the included tablet can serve a wider role in your service operation. The LDW target set gives you a defined starting point for supported camera calibration jobs.

Prepare for the vehicles coming through your doors

Front camera calibration may be required after windshield replacement or specific repairs. Having the appropriate equipment available lets you plan that work within your shop rather than arrange an outside service for every supported job. Check vehicle-specific coverage and workspace requirements as part of the repair plan.

Keep setup records with the job

Measurement validation provides documented evidence of frame and target setup against OEM tolerances. That supports your team’s review of the calibration preparation and helps maintain a consistent process from one technician to the next. The included ADAS software upgrade card enables supported calibration functions, with static or dynamic procedures determined by the vehicle. Triad can help you assess whether this target set fits your customer mix.

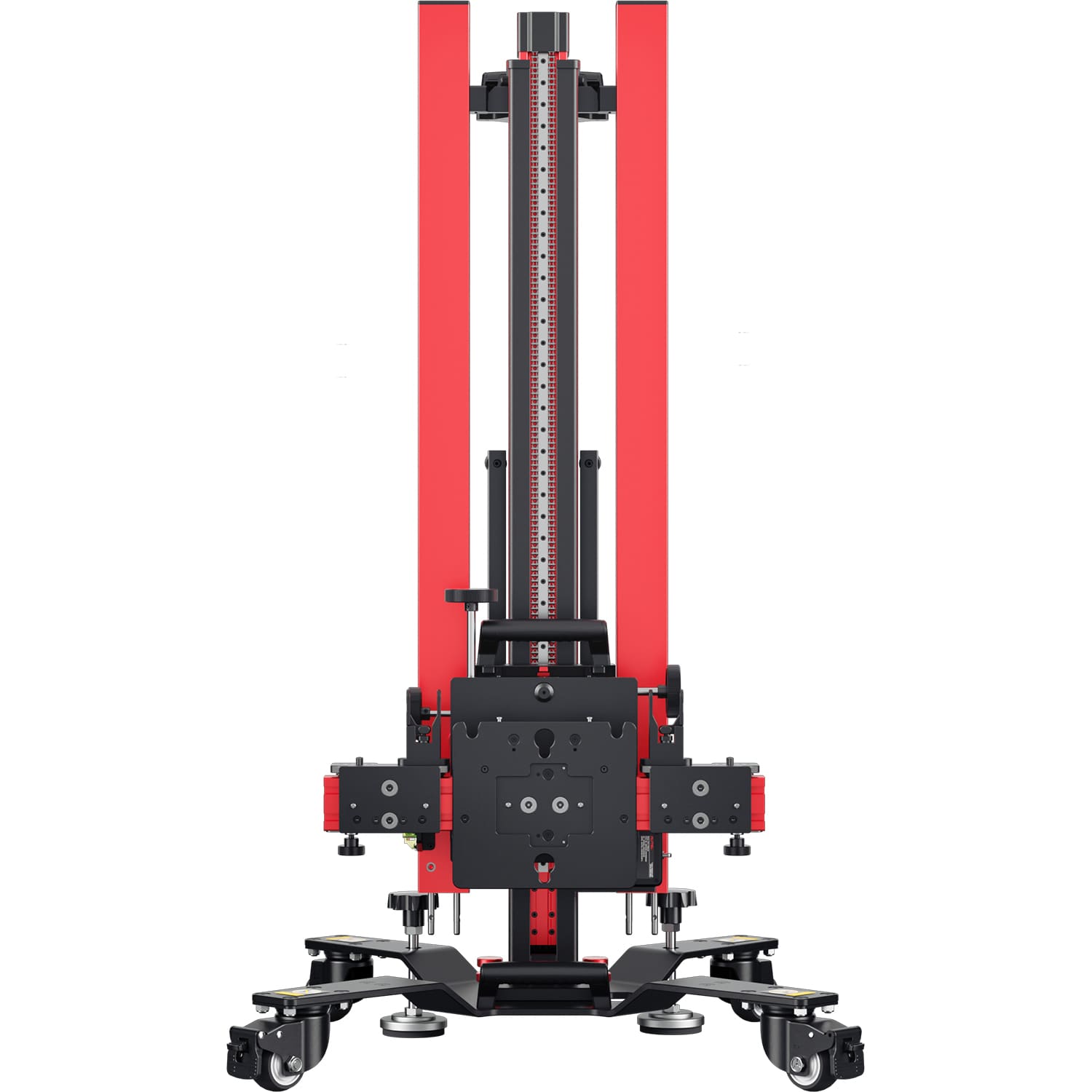

  • MA800 mobile ADAS calibration frame

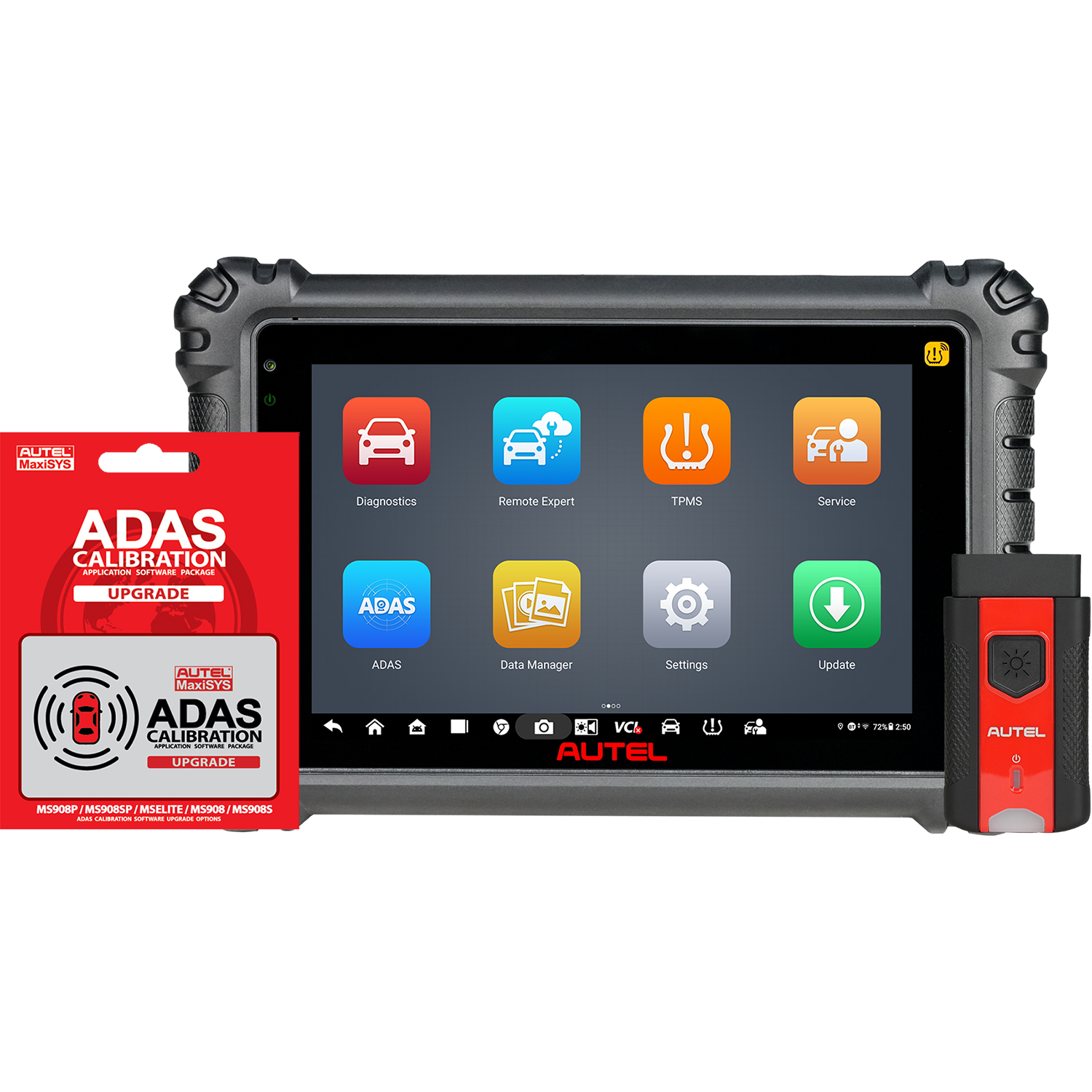

  • MaxiSYS MS906Pro2-TS diagnostic and complete TPMS service tablet
  • ADAS calibration software upgrade card
  • Integrated tablet holder
  • Left and right positioning laser units

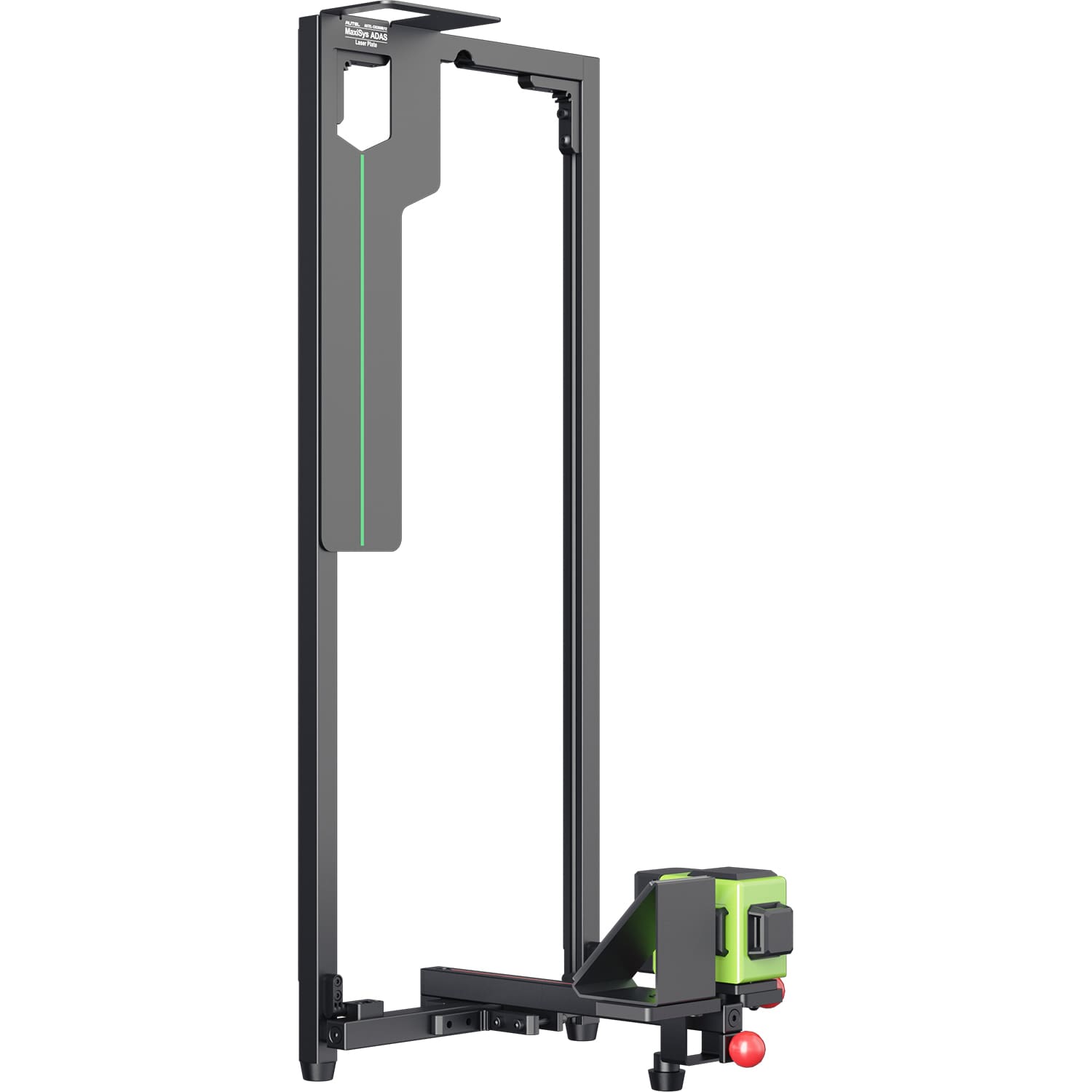

  • Alignment stand
  • Laser measure unit
  • Two two-line lasers, including one for vehicle centerline identification
  • Laser plate
  • Laser-assisted reflector
  • Two rechargeable battery packs
  • Power adapter

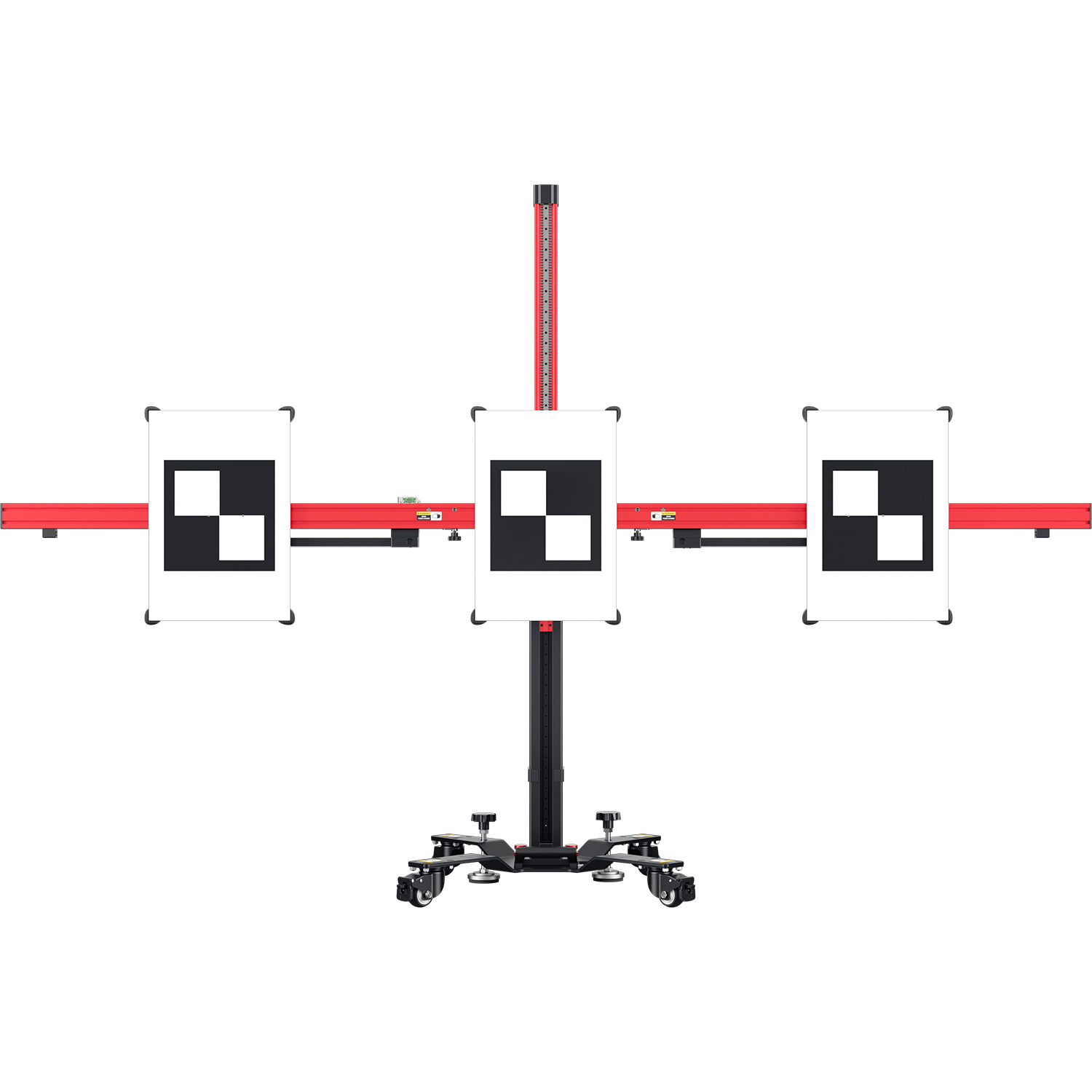

  • LDW camera calibration targets for:
    • Honda / Acura
    • Hyundai / Kia
    • Mazda
    • Mercedes-Benz
    • Mitsubishi
    • Nissan / Infiniti
    • Subaru
    • Toyota / Lexus
    • Volkswagen / Audi / Porsche
  • LDW target flight case for storage and transport

  • Includes the MS906Pro2-TS for vehicle diagnostics and complete TPMS service in addition to supported ADAS calibration.
  • Supplies the core LDW camera targets and ADAS software upgrade card for front camera procedures on compatible vehicles.
  • Enables supported static and dynamic calibration workflows through the included tablet and activated software.

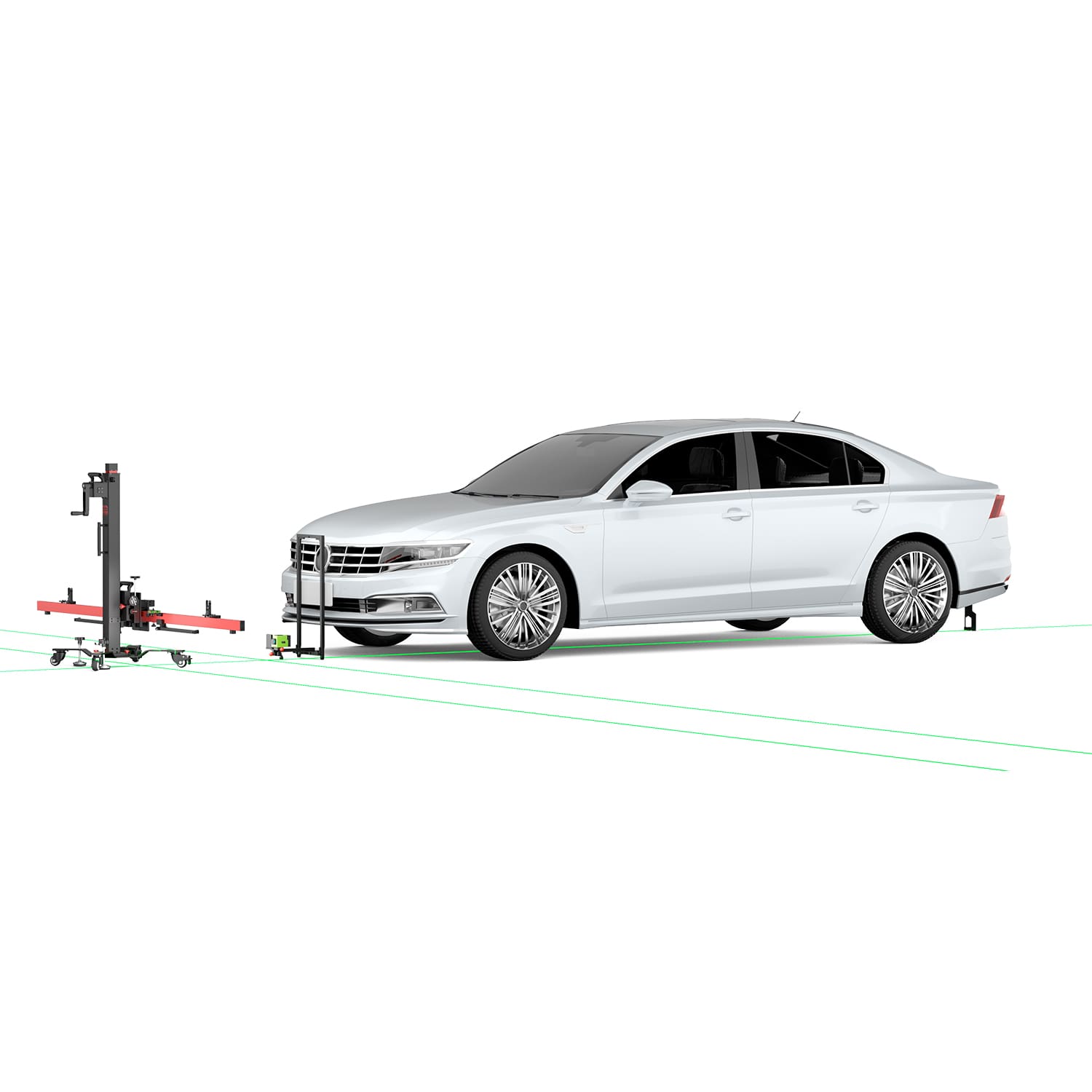

  • Establishes centerline and target placement with laser guidance, avoiding plumb bobs and floor reference marks.
  • Checks three setup measurements, target height, target distance, and vehicle-to-frame distance, against OEM limits; Bluetooth transfers the readings to the tablet for validation and reporting.
  • Allows independent correction of pitch, roll, and yaw to align the frame precisely.
  • Assembles without tools and dismantles in about 60 seconds into four sections that are easier to relocate and store.
  • Keeps the MS906Pro2-TS on the integrated holder for convenient access during the procedure.
  • Includes an LDW target flight case, plus one year of tablet software updates.

  • System Type: Mobile ADAS calibration system
  • Primary Calibration Application: Front camera / LDW calibration
  • Positioning: Laser-guided vehicle centerline and target positioning
  • Frame Design: Four-piece modular, tool-free assembly
  • Alignment Adjustments: Independent pitch, roll, and yaw
  • Measurement Validation: Target height, target distance, and vehicle-to-frame distance
  • Included Tablet: MaxiSYS MS906Pro2-TS
  • ADAS Software: ADAS calibration software upgrade card included
  • Calibration Types: Static and dynamic on supported vehicles
  • Power: Two rechargeable battery packs with power adapter
  • Target Storage: LDW target flight case included
  • Measurement Communication: Bluetooth
  • Frame Weight, Fully Assembled: 86.6 lb
  • Frame Height: 54 in
  • Frame Floor Footprint: 25 in W × 24 in D
  • Footprint Note: Frame dimensions do not represent the required calibration bay size.

  • MA800 Hardware: 1-Year Limited Warranty
  • MS906Pro2-TS Tablet: 1-Year Limited Warranty
  • Tablet Software Updates: 1 year included

Product Documentation

Included front camera / LDW target applications

Honda / Acura; Hyundai / Kia; Mazda; Mercedes-Benz; Mitsubishi; Nissan / Infiniti; Subaru; Toyota / Lexus; Volkswagen / Audi / Porsche.

This LDW package focuses on front camera calibration. Other sensor systems may require additional targets and calibrators.

Vehicle coverage

The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles with the appropriate tablet software, targets, and calibrators. This platform-level coverage does not mean every included package covers every vehicle or ADAS system. Confirm the exact year, make, model, sensor system, and required target before purchase.

Where it fits your shop

  • Glass shops performing required front camera calibration after windshield replacement
  • Collision centers handling calibration required after body or sensor-related repairs
  • Repair shops and ADAS service providers adding supported calibration work in-house
  • Facilities moving equipment between service bays or locations

Follow the vehicle-specific OEM procedure, including workspace and vehicle preparation requirements. A mobile frame still needs a suitable calibration environment.

  1. What is included with the MA800CORE2?
    The MA800CORE2 includes the MA800 mobile frame, LDW camera targets, the MaxiSYS MS906Pro2-TS tablet, and an ADAS calibration software upgrade card. See What’s Included for the package details.
  2. Do I need an ADAS-enabled tablet?
    The included MS906Pro2-TS is the package’s compatible diagnostic tablet. Activate the included ADAS calibration software upgrade card to access supported calibration functions.
  3. Does this package include radar calibration equipment?
    The included LDW target set is for supported front camera calibrations. Radar and other sensor applications may require additional equipment. Triad can help you identify the targets and calibrators needed for your vehicle mix.
  4. How does the MA800 verify calibration setup?
    Bluetooth-connected laser measurements are sent to a compatible MaxiSYS tablet to check setup against OEM specifications and document the results. These checks validate positioning measurements; successful calibration still depends on completing the vehicle-specific procedure.
  5. Does the MA800 cover every ADAS-equipped vehicle?
    The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles when equipped appropriately. Confirm coverage for the exact vehicle and ADAS system, along with the required software, targets, and calibrators.
  6. Can I move the MA800 between bays or locations?
    Yes. The four-piece frame assembles tool-free and breaks down in approximately 60 seconds for transport and storage. Fully assembled, the frame weighs 86.6 lb. Each calibration location must meet the applicable workspace requirements.
  7. How much space does the MA800 require?
    The frame footprint is 25 inches wide by 24 inches deep, and its height is 54 inches. These are frame dimensions, not the calibration bay requirement. Working space and target placement depend on the vehicle’s OEM procedure.
  8. Who can help me choose the right MA800 package?
    Contact Triad at 317-939-3690 or [email protected]. We can help you match the frame, tablet, software, and targets to your shop’s existing equipment and planned calibration work.
