Autel MA800AS All Systems ADAS Calibration Package

SKU: MA800AS

Original price was: $27,000.00.Current price is: $22,500.00.

17% Off

The Autel MA800AS is an all systems ADAS calibration equipment package for shops with a compatible MaxiSYS tablet. Its camera, radar, and additional sensor target equipment lets you take on more types of supported calibration work, expanding your service capability beyond front cameras while making use of your existing diagnostic tool.

Sale!
Autel MA800AS All Systems ADAS Calibration Package
Autel MA800AS All Systems ADAS Calibration Package - Image 2
Autel MA800AS All Systems ADAS Calibration Package - Image 3
Autel MA800AS All Systems ADAS Calibration Package - Image 4
Autel MA800AS All Systems ADAS Calibration Package - Image 5
Autel MA800AS All Systems ADAS Calibration Package - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Sale!
Autel MA800AS All Systems ADAS Calibration Package
Autel MA800AS All Systems ADAS Calibration Package - Image 2
Autel MA800AS All Systems ADAS Calibration Package - Image 3
Autel MA800AS All Systems ADAS Calibration Package - Image 4
Autel MA800AS All Systems ADAS Calibration Package - Image 5
Autel MA800AS All Systems ADAS Calibration Package - Image 6
autel-china-msg

GENUINE AUTHORIZED AUTEL DEALER
Don’t Get Fooled By Non-Genuine Tools >>

Grow the range of calibration jobs your shop can handle

The MA800AS fits a shop that wants to expand beyond front camera work while keeping a compatible MaxiSYS tablet already in service. Its target and calibrator selection supports additional camera, radar, night vision, and LiDAR applications on eligible vehicles. This broader equipment set can help you retain more supported ADAS work after collision and sensor-related repairs.

Choose coverage around the systems you actually service

All systems refers to the package’s supported application range. The target, software, and procedure required for a particular vehicle still need to be checked. Review your repair mix to determine which applications are most useful to your shop, then confirm the package covers those needs. The detailed system list and vehicle-make targets appear in Coverage & Use Cases.

Use documentation to support a repeatable process

Setup measurements are checked and recorded before calibration, giving technicians a consistent reference for preparation across different supported systems. The included software upgrade card adds ADAS functionality to a compatible tablet, with 12 months of calibration coverage updates. Triad can help you verify tablet compatibility and identify any vehicle-specific accessories before purchase.

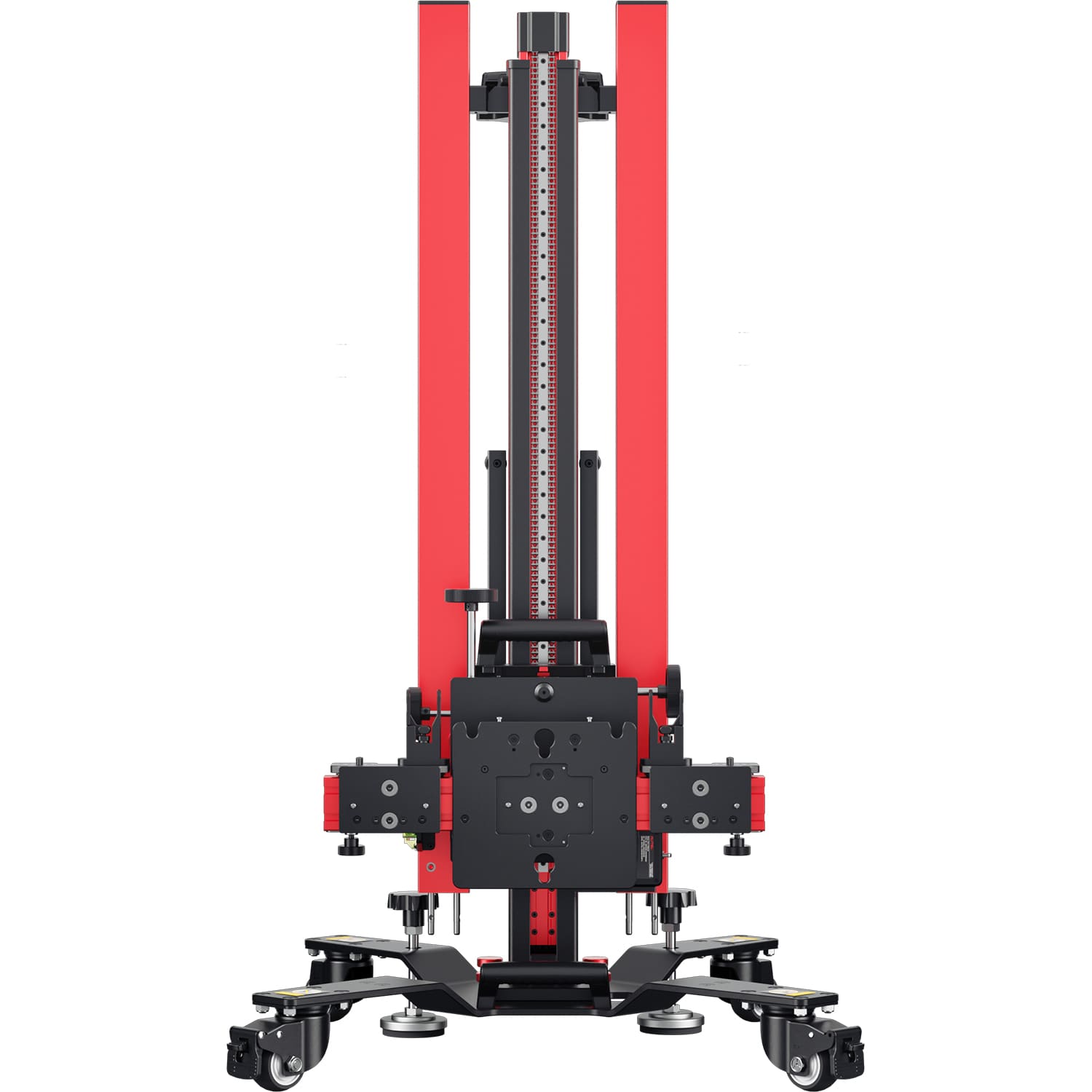

  • MA800 mobile ADAS calibration frame
  • ADAS calibration software upgrade card with 12 months of calibration coverage updates
  • Integrated tablet holder
  • Left and right positioning laser units

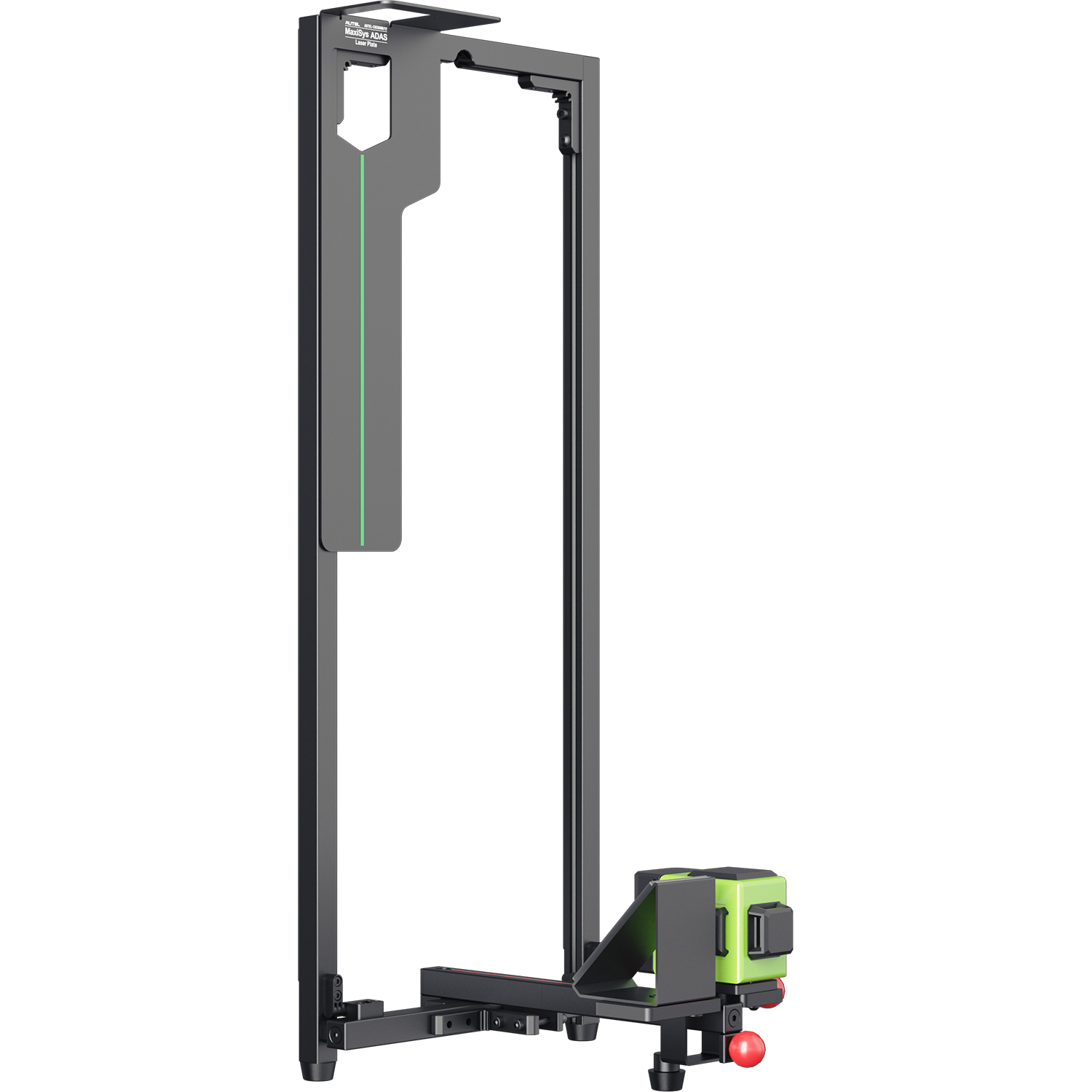

  • Alignment stand
  • Laser measure unit
  • Two two-line lasers, including one for vehicle centerline identification
  • Laser plate
  • Laser-assisted reflector
  • Two rechargeable battery packs
  • Power adapter

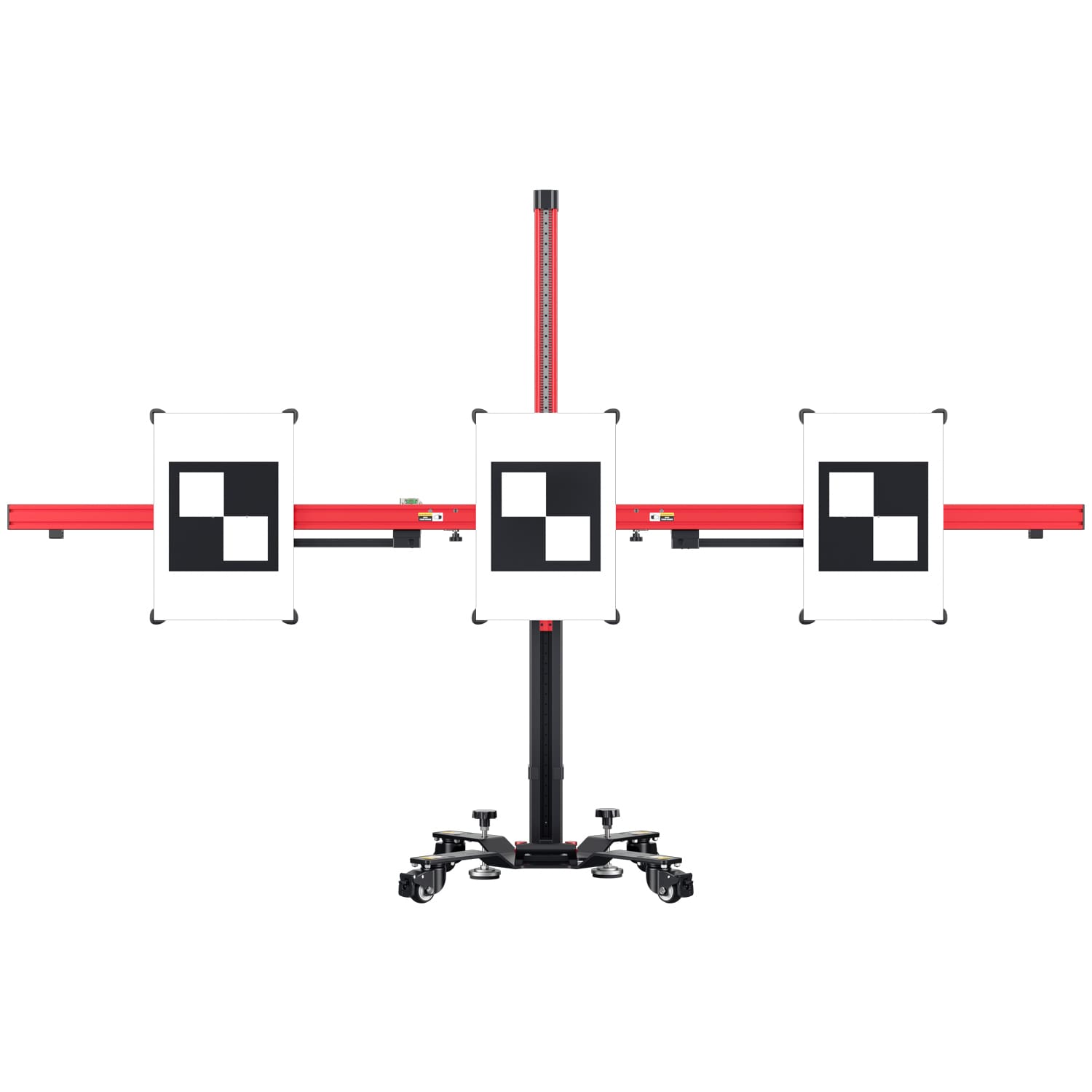

  • Expanded LDW camera calibration targets for: Honda / Acura; Hyundai / Kia; Mazda; Mercedes-Benz; Mitsubishi; Nissan / Infiniti; Subaru; Toyota / Lexus; Volkswagen / Audi / Porsche; Alfa Romeo
  • Targets, calibrators, and equipment for supported AVM, rear camera, Honda LaneWatch, ACC, BSD, night vision, and LiDAR applications
  • Target flight case for small-target storage and transport

Not included: MaxiSYS tablet.

  • Equips a compatible MaxiSYS tablet with targets and calibrators for supported LDW, AVM, rear camera, Honda LaneWatch, ACC, BSD, night vision, and LiDAR work.
  • Supplies the expanded front camera target package, including the listed Alfa Romeo applications.
  • Provides an ADAS software upgrade card and a 12-month calibration coverage update period; the tablet is purchased separately.

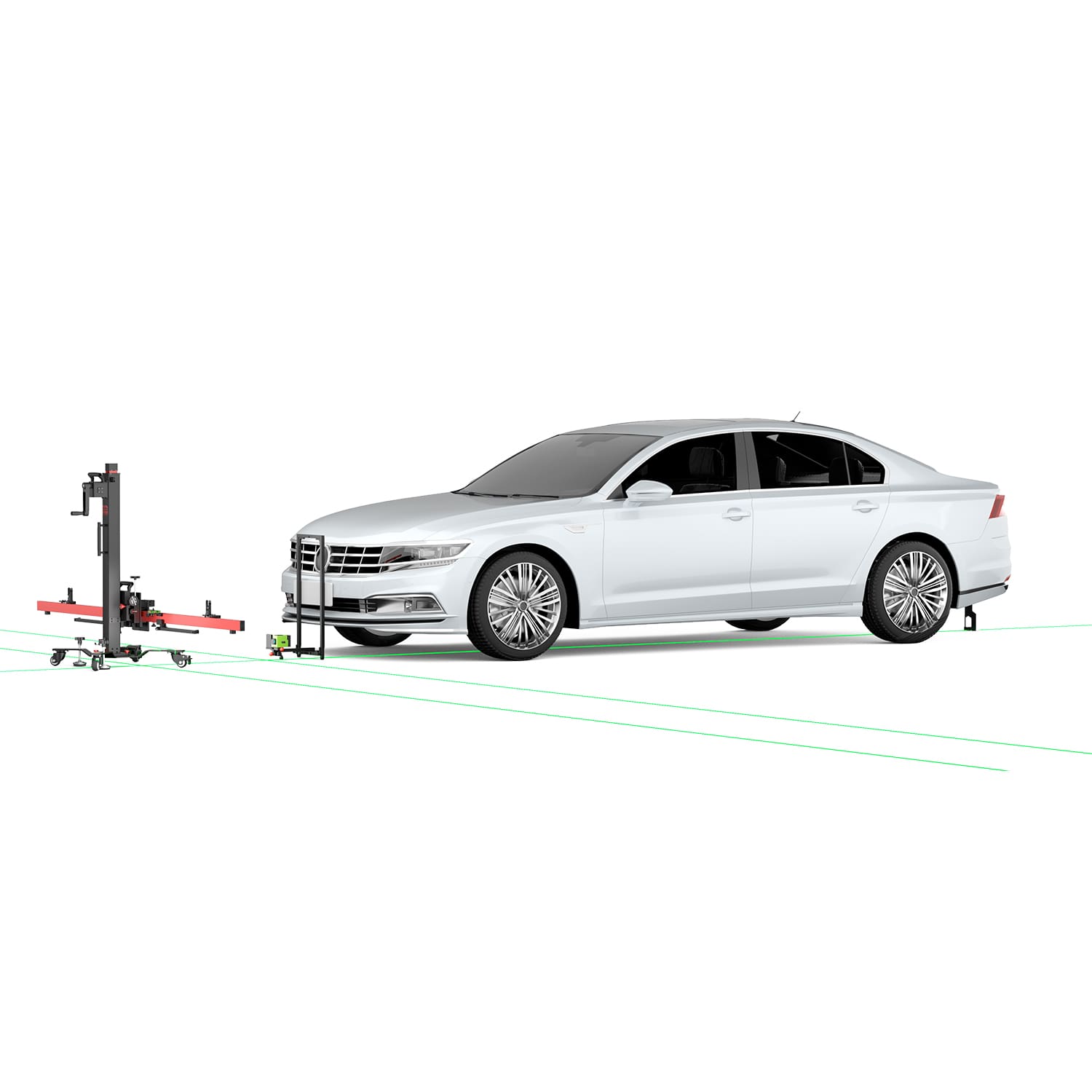

  • Uses laser-assisted centerline identification and target placement to simplify setup without floor markings or plumb bobs.
  • Offers three independent frame adjustments, pitch, roll, and yaw, to bring positioning into the required alignment.
  • Communicates setup readings by Bluetooth to the compatible tablet for OEM-tolerance verification of target height, target distance, and vehicle-to-frame distance, with reporting of the validated measurements.
  • Stores or travels as four frame pieces, assembled without tools and broken down in approximately 60 seconds.
  • Combines an integrated tablet mount with a small-target flight case to keep equipment accessible during use and organized afterward.

  • System Type: Comprehensive mobile ADAS calibration system
  • Positioning: Laser-guided vehicle centerline and target positioning
  • Frame Design: Four-piece modular frame
  • Alignment Adjustments: Independent pitch, roll, and yaw
  • Measurement Validation: Target height, target distance, and vehicle-to-frame distance
  • Tablet Requirement: Autel MaxiSYS ADAS-capable tablet
  • Tablet Included: No
  • ADAS Software: Calibration software upgrade card included
  • ADAS Coverage Updates: 12 months included
  • Power: Two rechargeable battery packs with power adapter
  • Target Storage: Flight case included
  • Measurement Communication: Bluetooth
  • Frame Weight, Fully Assembled: 86.6 lb
  • Frame Height: 54 in
  • Frame Floor Footprint: 25 in W × 24 in D
  • Footprint Note: Frame dimensions do not represent the required calibration bay size.

  • MA800 Hardware and Included Equipment: 1-Year Limited Warranty
  • ADAS Calibration Coverage Updates: 12 months included

Product Documentation

Supported ADAS system applications

  • Front camera / Lane Departure Warning (LDW)
  • Around View Monitoring (AVM)
  • Rear camera
  • Honda LaneWatch
  • Adaptive Cruise Control (ACC)
  • Blind Spot Detection (BSD)
  • Night vision
  • LiDAR

Included expanded LDW target applications

Honda / Acura; Hyundai / Kia; Mazda; Mercedes-Benz; Mitsubishi; Nissan / Infiniti; Subaru; Toyota / Lexus; Volkswagen / Audi / Porsche; Alfa Romeo.

Vehicle coverage

The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles with the appropriate tablet software, targets, and calibrators. This platform-level coverage does not mean every included package covers every vehicle or ADAS system. Confirm the exact year, make, model, sensor system, and required target before purchase.

Where it fits your shop

  • Glass shops performing required front camera calibration after windshield replacement
  • Collision centers handling calibration required after body or sensor-related repairs
  • Repair shops and ADAS service providers adding supported calibration work in-house
  • Facilities moving equipment between service bays or locations

Follow the vehicle-specific OEM procedure, including workspace and vehicle preparation requirements. A mobile frame still needs a suitable calibration environment.

  1. What is included with the MA800AS?
    The MA800AS includes the MA800 mobile frame, all systems target equipment, and an ADAS calibration software upgrade card. See What’s Included for the package details.
  2. Do I need an ADAS-enabled tablet?
    Yes. A compatible MaxiSYS tablet is required and sold separately. The included ADAS software upgrade card adds calibration functionality to a compatible tablet.
  3. Which ADAS systems does the all systems package support?
    The package includes equipment for supported front camera / LDW, AVM, rear camera, Honda LaneWatch, ACC, BSD, night vision, and LiDAR applications. Coverage varies by vehicle, software, and required accessory.
  4. What is the difference between MA800AS and MA800AST?
    Both packages include the MA800 frame, all systems target equipment, and an ADAS software upgrade card. MA800AST also includes the MS909S2 diagnostic tablet. MA800AS requires your own compatible tablet.
  5. How does the MA800 verify calibration setup?
    Bluetooth-connected laser measurements are sent to a compatible MaxiSYS tablet to check setup against OEM specifications and document the results. These checks validate positioning measurements; successful calibration still depends on completing the vehicle-specific procedure.
  6. Does the MA800 cover every ADAS-equipped vehicle?
    The MA800 platform supports more than 95% of domestic, Asian, and European ADAS-equipped vehicles when equipped appropriately. Confirm coverage for the exact vehicle and ADAS system, along with the required software, targets, and calibrators.
  7. Can I move the MA800 between bays or locations?
    Yes. The four-piece frame assembles tool-free and breaks down in approximately 60 seconds for transport and storage. Fully assembled, the frame weighs 86.6 lb. Each calibration location must meet the applicable workspace requirements.
  8. How much space does the MA800 require?
    The frame footprint is 25 inches wide by 24 inches deep, and its height is 54 inches. These are frame dimensions, not the calibration bay requirement. Working space and target placement depend on the vehicle’s OEM procedure.
  9. Who can help me choose the right MA800 package?
    Contact Triad at 317-939-3690 or [email protected]. We can help you match the frame, tablet, software, and targets to your shop’s existing equipment and planned calibration work.
