MaxiVIDEO MV400-55

MaxiVIDEO MV400-55

$155.95

11% Off

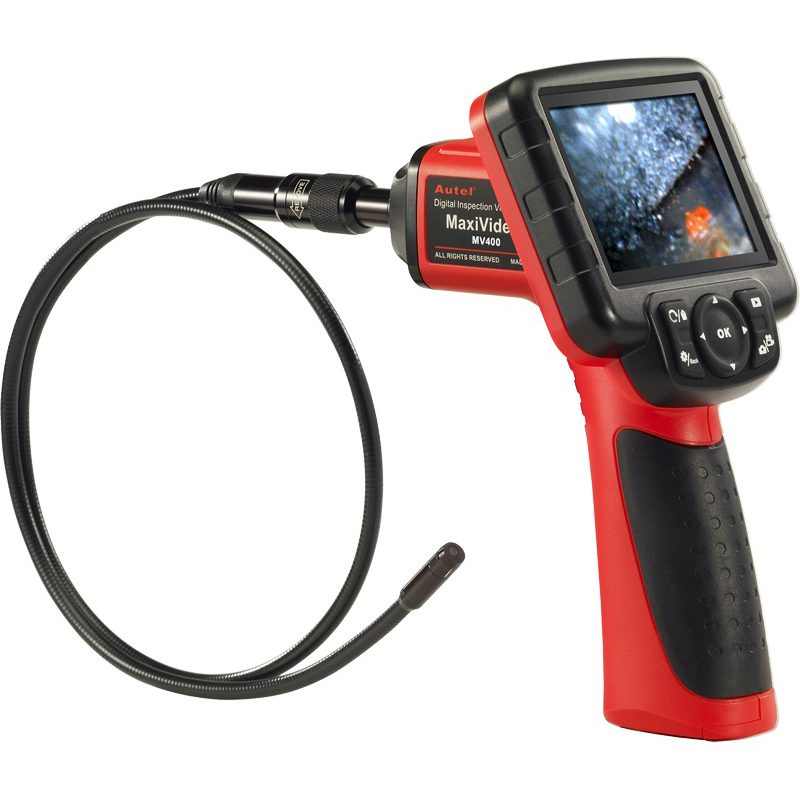

This premier Autel MaxiVideo MV400 digital videoscope is an ideal tool for examining difficult- to- reach areas normally hidden from sight. It features the ability to record digital still images and MPEG2 or MPEG1 videos either on its internal flash memory or on the removable Micro SD Card (Optional). The ergonomic tool not only features a 3.5″ full color LCD screen, auto focus and viewing capacity as close as 1″ with crystal clear output, but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.

  1. Records and plays back still images and video clips
  2. 3.5 ” high resolution full color LCD display (320×240)
  3.  Easy-to-use, multi-language interface
  4. Wide camera angle for images with 640×480 resolution
  5. With optional removable Micro SD cards, saves images and videos to take with anywhere
  6. On-screen horizontal/vertical reverse
  7. 5x digital zoom for increased viewing
  8. Mini USB connector for uploading images and videos to a computer
  9. Narrow probe diameter available in either 8.5mm(0.33″) or 5.5mm(0.22″) and fits most spark plug holes
  10. White LED to illuminate the inspection area, with illumination control
  11. Views objects as close as 1″
  12. Oil and scratch resistant tempered glass lens
  13. 1M (39.4″) semi-rigid, but flexible watertight shaft
  14. Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
  15. Ergonomic and durable tool housing
  16.  One-year limited warranty

Specification

Recommended use Indoor
Optimal viewing Distance 1″ to 14″ (2.5cm to 35.6cm) with 8.5mm diameter imager head
3/8″ to 12″ (0.95cm to 30cm) with 5.5mm diameter imager head
Image capture JPG images (640×480); AVI videos (320 x 240)
Screen type display 3.5″ TFT LCD
Display resolution 320 x 240
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)
Tested battery life 3-4 hours of continuous use
Dimensions 199 x 100 x 178mm (7.83″ x 3.94″ x 7.0″)
Recording medium Micro SD card (Micro SD card is optional and not included)
Imager head 8.5mm (0.33″) is standard and 5.5mm (0.22″) is optional
Waterproof Imager head and cable to 3m (10′)
Additional ports USB
video out (TV-out) port
Operating temp Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
Storage temp -4°F to 158°F (-20°C to 70°C)
Video output RCA
TV out NTSC
PAL

Comparison

MaxiVideo
MV400
MaxiVideo
MV500
MaxiVideo
MV480
MaxiVideo
MV460
MaxiVideo
MV160
High resolution and full color digital LCD display 3.5″ (320×240) 5” (1280×720) 4.1″ (1200×720) 3.5” (640 x 480) Smartphone-based
Record and play back high resolution still images and videos 640×480 1280×720 1920 x 1080 1920 x 1080 1920 x 1080
Wireless monitor enables remote viewing
Touchscreen for convenient operation
Single button for quick photo and video recording
Add audio annotation for detail presentation
On-screen photo editing and markup
Dual cameras see straight ahead or at a 90° angle
Digital zoom for detailed viewing
View objects as close as 1″
BOn-screen horizontal/vertical reverse
On-screen 90° clockwise rotation
Built-in & adjustable LED illuminates viewing area
HDMI port for monitor view
Mini USB connector for uploading images and videos
1 m long semi-rigid flexible watertight shaft
Narrow probe diameter available in both 5.5 mm and 8.5 mm 8.5 mm 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional) 8.5mm (5.5mm Optional)
Micro SD card slot for greater memory capacity
Oil and scratch resistant tempered glass lens
Ergonomic and durable tool housing
Built-in rechargeable Li-ion battery
Multilingual support
Water Resistant Camera head

Downloads

MaxiVIDEO MV400-55 Manual

MaxiVIDEO MV400 Update Instruction
