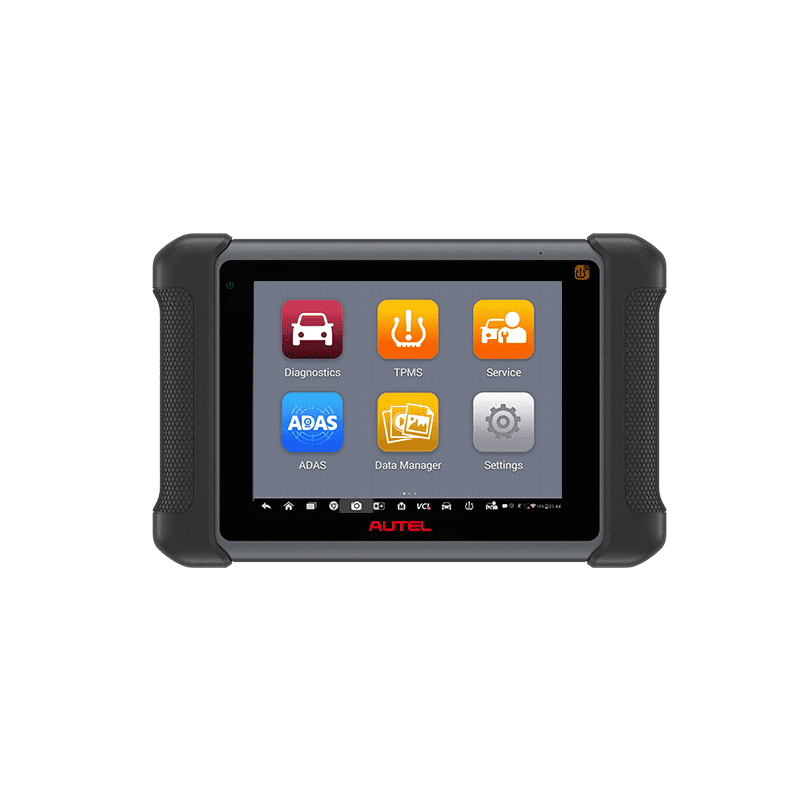

MaxiSYS MS906TS

Name: MaxiSYS MS906TS
Brand: Autel
SKU: MS906TS
Price: 1549.95 USD
Availability: InStock

MaxiSYS MS906TS

$1,549.95

29% Off

MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

Categories: Autel, Automotive, Diagnostic Scan Tools, Shop By Brand, Tire Pressure Monitoring SystemsTags: Alfa Romeo, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Chevrolet, Chrysler, Dodge, Ferrari, Fiat, Ford, GM, GMC, Honda, Hyundai, Infinity, Jeep, Kia, Lamborghini, Lancia, Land Rover, Lexus, Lincoln, Maserati, Mazda, McLaren, Mercedes Benz, Mini, Mitsubishi, Nissan, Porsche, Renault, Rolls-Royce, Suzuki, Toyota, VolkswagenSKU: MS906TS

Sale!

MaxiSYS MS906TS Automotive Diagnostic Scan Tool Agile Truck Tools

Extraordinarily powerful Samsung Exynos Hexa-core processor
8.0” 1024×768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
Internal reliable 32GB SSD for better performance
Built-in 8-megapixel rear camera with autofocus and flashlight
Integrated TPMS antenna module for performing comprehensive TPMS service
802.11b/g/n Wi-Fi to access your favorite web resources
Unique ergonomic design with rubberized outer protection and a rugged internal housing
Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
The most extensive complete system coverage for more than 80 US, Asian and European makes and models
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
Smart AutoVIN technology for identifying vehicle easily
Uniquely integrated TPMS service application designed for triggering known OEM TPMS sensors, programming Autel MX-Sensor and performing TPMS sensor relearn procedure
Automatic system and software updates with real-time push message notifications via internet
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work
Convenient data management system for managing internal program applications and reviewing data

Specification

Operating System	Android™ 4.4.2, KitKat
Processor	Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15
Memory	2 GB RAM & 32 GB ROM
Display	8.0 inch LED capacitive touch screen with 1024x786P resolution
Connectivity	Wi-Fi (802.11 b/g/n) USB: 2.0 Mini USB 2.0 HDMI 1.4a SD Card (Support up to 32GB)
Camera (rear)	Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-35 V)
Power Consumption	5 W
Operating Temp	-10 to 55º C (14 to 131º F)
Storage Temp	-20 to 70º C (-4 to 158º F)
Housing	Rubberized outer protection and rugged internal housing
Dimensions (W x H x D)	270.8 mm (10.0″) x 176.0 mm (6.9″) x 36.0mm (1.4″)
Weight	NW: 1.10 kg (2.42lb.)

Video

Comparison

Comparison	MaxiSys Elite	MaxiSys CV	MaxiSys MS908S Pro	MaxiSys MS908S	MaxiSys 906TS	MaxiSys 906BT	MaxiSys 906
Function
All Systems DTC Scan	•	•	•	•	•	•	•
Service Function	•	•	•	•	•	•	•
Bi-Directional Control	•	•	•	•	•	•	•
Auto VIN Technology	•	•	•	•	•	•	•
Read/Clear TPMS DTCs; On-Screen DTC Description	•	•	•	•	•	•	•
ECU Coding	•	•	•	•	•	•
ECU Programming	•		•
MaxiFix Cloud-Based Info System	•	•	•	•	•	•	•
Data Manager	•	•	•	•	•	•	•
Shop Manager	•	•	•	•	•	•	•
Remote Support	•		•	•	•	•	•
Pre-scan Report & Post-scan Report	North America Only		North America Only	North America Only	•	North America Only	North America Only
Print Feature	•	•	•	•	•	•	•
Multi-language Support	•	•	•	•	•	•	•
Coverage
Domestic/Asian/European Coverage (1996-Present)	•	•	•	•	•	•	•
Hardware
Display Size	9.7″	9.7″	9.7″	9.7″	8″	8″	8″
Wireless VCI	MaxiFlash Elite	MaxiFlash Elite	MaxiFlash Elite	Wireless Diagnostic Interface	MaxiVCI V100	MaxiVCI V100
Battery Life	15400 mAh 3.7 V	11000 mAh 3.7 V	11000 mAh 3.7 V	11000 mAh 3.7 V	10000 mAh 3.7 V	10000 mAh 3.7 V	5000 mAh 3.7 V
Memory Storage	64GB	64GB	64GB	64GB	32GB	32GB	32GB
Connector Kit	•	•	•	•	•	•	•
Options
TPMS					•
Inspection Camera	•	•	•	•		•	•
ADAS	•		•	•		•	•

Downloads

MaxiSYS MS906TS Manual
