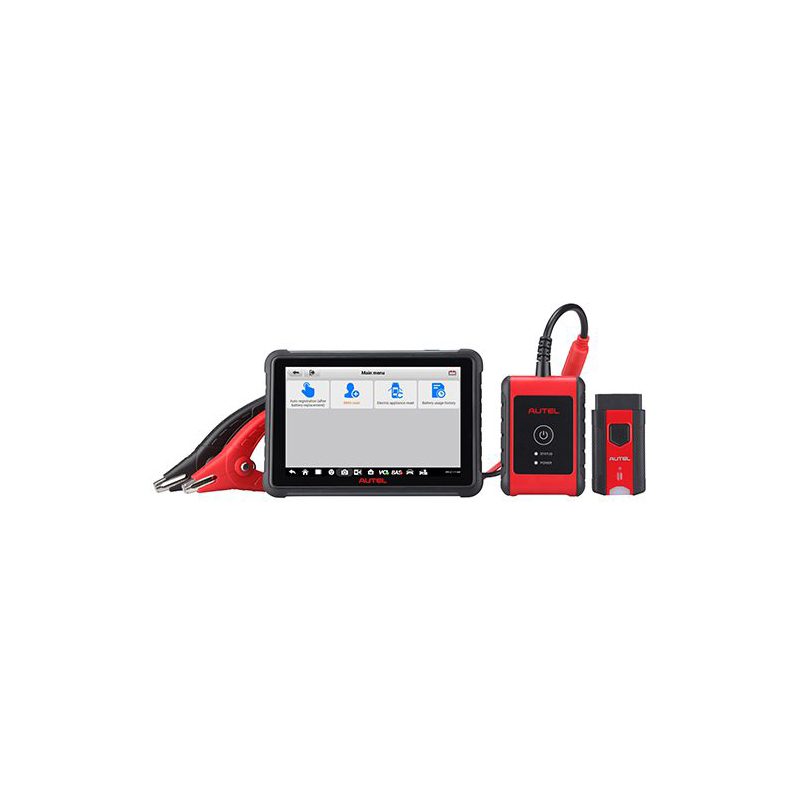

MaxiBAS BT609

MaxiBAS BT609

Original price was: $815.00.Current price is: $794.95.

2% Off

Call for special pricing.
The MaxiBAS BT609 wireless battery and electrical system analysis tablet is the perfect tool for technicians who want to get the most accurate information about a battery’s health. Using Adaptive Conductance, the BT609 can examine a battery’s cold cranking ability and reserve capacity, giving you a clear picture of its true health. The 7-inch Android touchscreen tablet makes it easy to view battery information and perform advanced diagnostics, and with features like AutoVIN and the ability to print or share reports via Wi-Fi, the BT609 is a must-have for any workshop. Comes with one year of free software and a limited hardware warranty.

View Coverage Guide

Original price was: $815.00.Current price is: $794.95.

2% Off

Affirm Financing: For personal use. Terms apply.

  • Seven-inch Android-based Wireless Battery and Electrical System Analysis Tablet
  • Uses Adaptive Conductance to Produce a More Accurate Exam of the Battery’s Status
  • Support In-vehicle and Out-of-vehicle Testing of Passenger Vehicle Batteries
  • Test 6- and 12-volt Batteries: 100 – 3000 CCA
  • Test 12- and 24-volt Cranking/Charging Systems
  • Test Flooded, AGM, AGM Spiral, EFB and GEL Batteries
  • Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
  • Features VINscan for Rapid Identification of Vehicle and Battery Specifications
  • All Systems Code Reader and Service Menu
  • One Year of Free Software Updates and Limited Hardware Warranty

Downloads

MaxiBAS BT609 User Manual

MaxiBAS BT609 Quick Start Guide

Specifications

Operating System Android 9.0
Memory 2GB RAM & 64GB On-board Memory
Display 7.0 inch TFT-LCD with 1280 x 800 resolution & capacitive touch screen
Connectivity
  • Wi-Fi (IEEE 802.11 a/b/g/n/ac 1×1)
  • BT 5.0+EDR+BLE
  • USB 2.0 (1 USB HOST + 1 USB OTG)
  • Micro SD Card (Support up to 128GB)
Camera 8 Megapixel
Sensor Ambient Light Sensor (ALS)
Audio Microphone
Input/Output Loudspeaker
Power and Battery
  • 5800 mAh 3.85 V lithium-polymer battery
  • Charging via 5 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 5V / 2A Adapter
Operating Temperature 0 to 50° C (32 to 122° F)
Storage Temperature -10 to 60° C   (14 to 140° F)
Dimensions(W x H x D) 197 mm (7.75″) x 135 mm (5.31″) x 14 mm (0.55″)
Weight 445 g (0.98 lb.)

What's Included

Compare Similar

MaxiBAS BT508 MaxiBAS BT608 MaxiBAS BT609
  MaxiBAS BT508 Battery Tester MaxiBAS BT608 MOTOR Top 20 MaxiBAS BT609 Kit
HARDWARE
Screen
5.5-Inch Touchscreen
720 x 1280 DPI / LED Color Screen
7-Inch Touchscreen
1280 x 800 DPI / LED Color Screen
Battery
3,000 mAh 6H
6,000 mAh 6H
Processor
CORTEX-M4
1.5 GHz
CORTEX-A35 QUAD-CORE
1.5 GHz
CORTEX-A35 QUAD-CORE
Memory
32GB SSD / 2GB RAM
64GB SSD / 2GB RAM
Camera
8.0MP
8.0MP
SOFTWARE
Operating System
ANDROID 9.0
ANDROID 9.0
FEATURES
CCA Range
100-2000 CCA
100-3000 CCA
100-3000 CCA
Battery Type
Flooded, AGM, AGM Spiral, EFB, GEL
Flooded, AGM, AGM Spiral, EFB, GEL
Flooded, AGM, AGM Spiral, EFB, GEL
Battery Ratings
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
Battery Voltage
6V, 12V
6V, 12V
6V, 12V
Electrical System
12V, 24V
12V, 24V
12V, 24V
Voltage Range
1.5-36V
1.5-36V
1.5-36V
Temperature Compensation
Included
Included
Battery Registration
53 Vehicle Makes
53 Vehicle Makes
53 Vehicle Makes
Electrical Reset
Included
Included
Included
System Detection
AUTOVIN
AUTOVIN, VINSCAN, PLATE SCAN
AUTOVIN, VINSCAN, PLATE SCAN
Battery Location Diagrams
Included
Included
Included
Battery Health Report
Included
Included
Included
Built-In Printer
Included
Email Report
Included
Included
Included
Cloud-Base Service
Included
Included
Included
Multimeter
Optional
Optional
Amp Clamp
Optional
Optional
DIAGNOSTICS
All System with Autoscan
One Vehicle Brand Only
Included
Included
All Maintenance Resets
Included
Diagnostic Software Update
Charge for additional vehicle brands & annual update
No Annual Update Fee
Annual Update Fee
