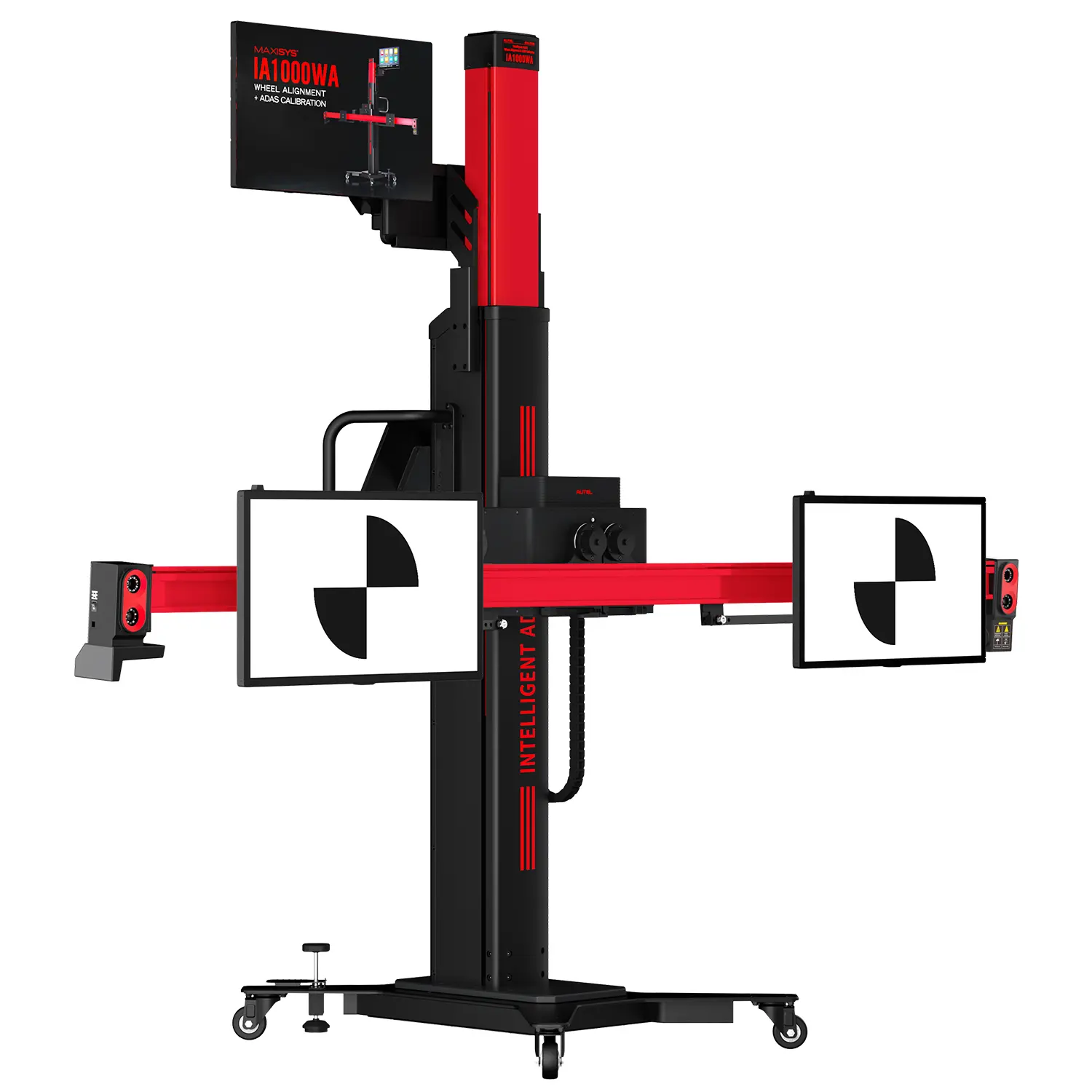

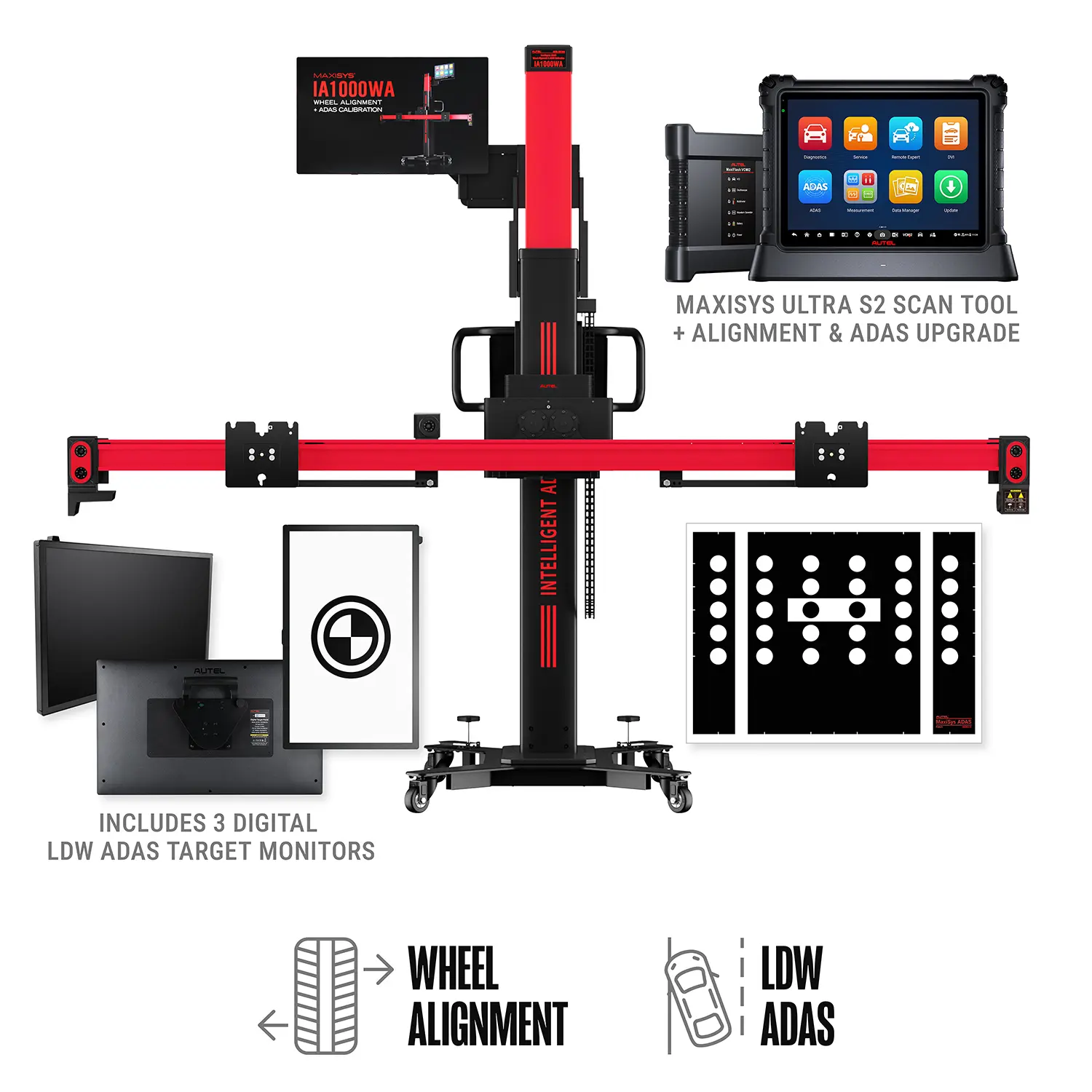

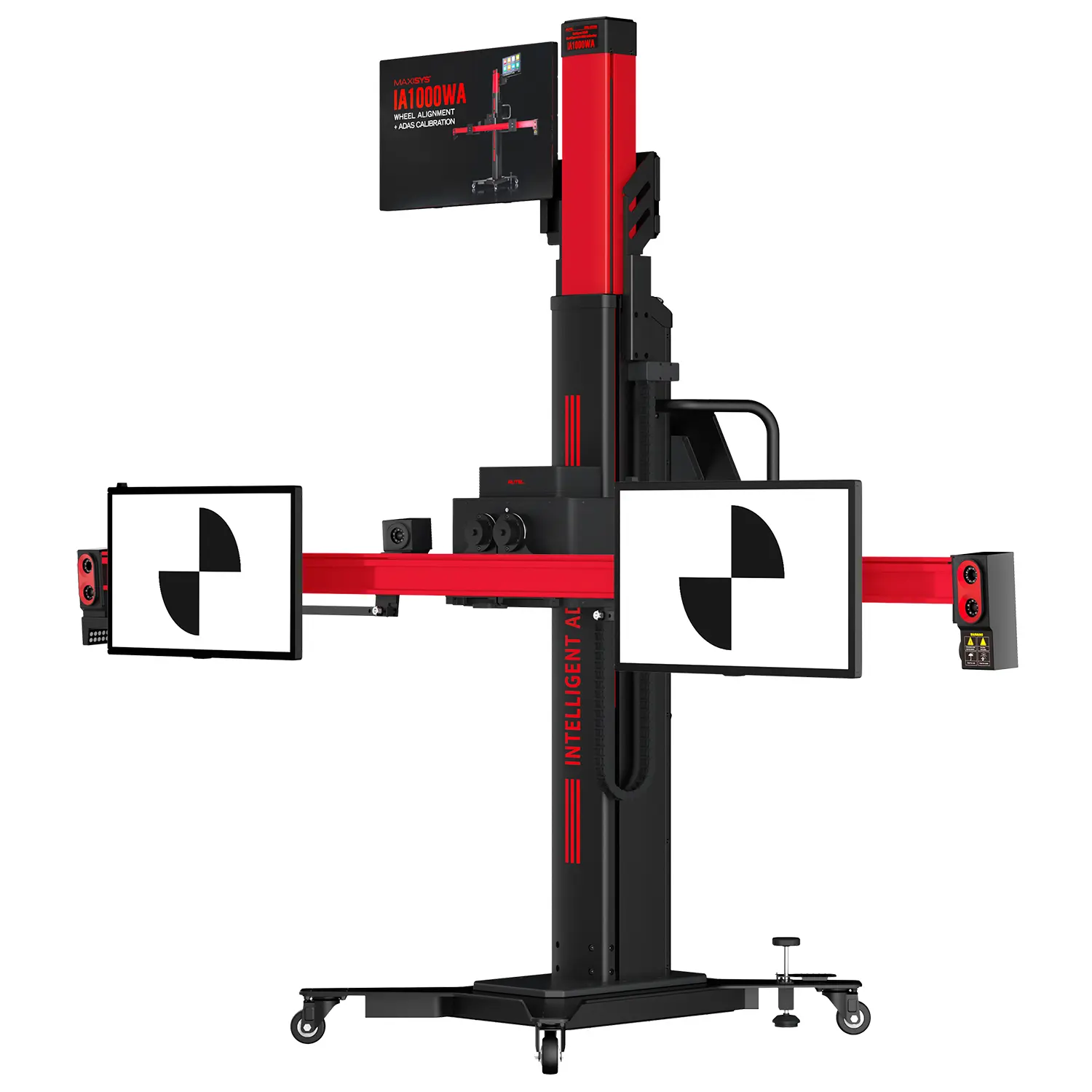

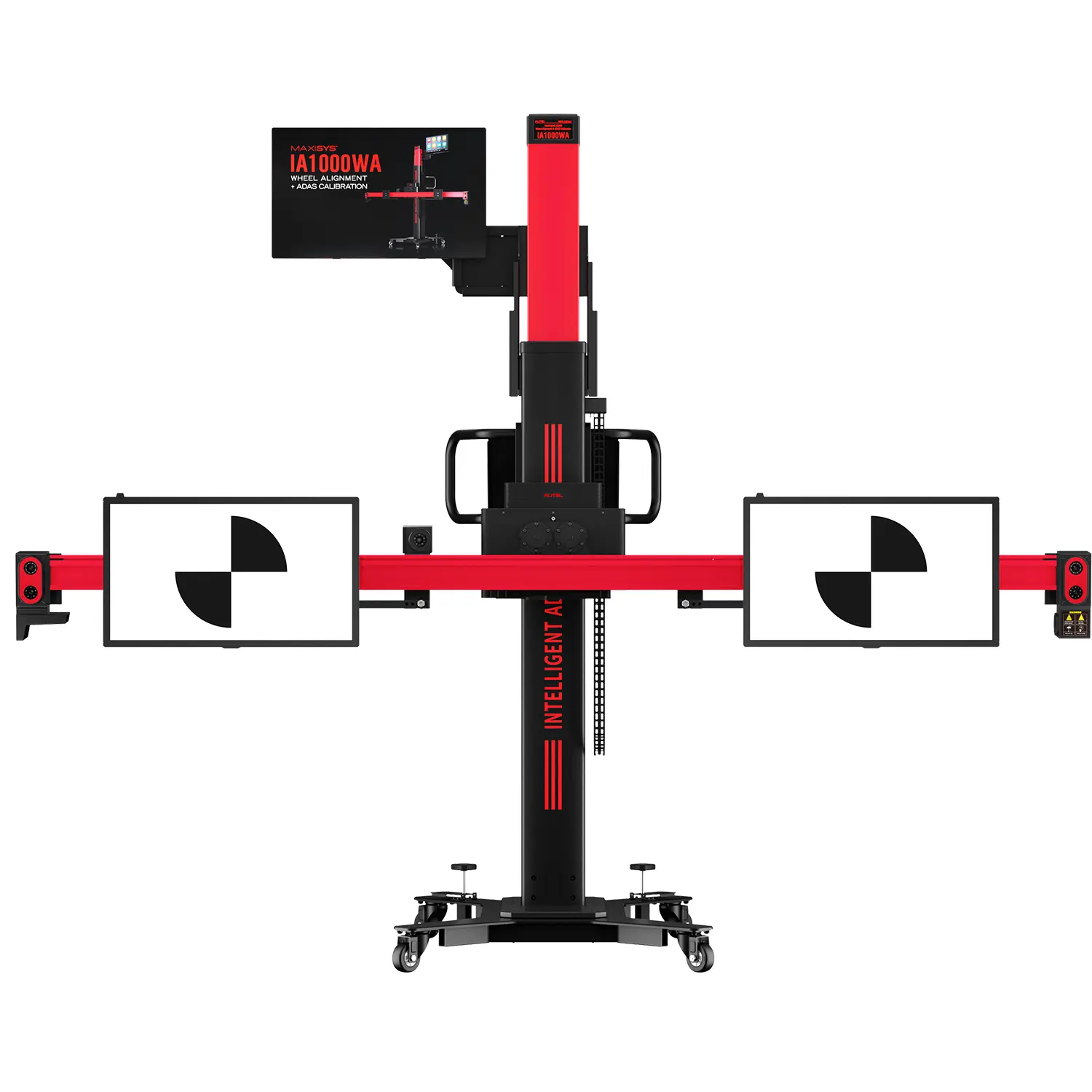

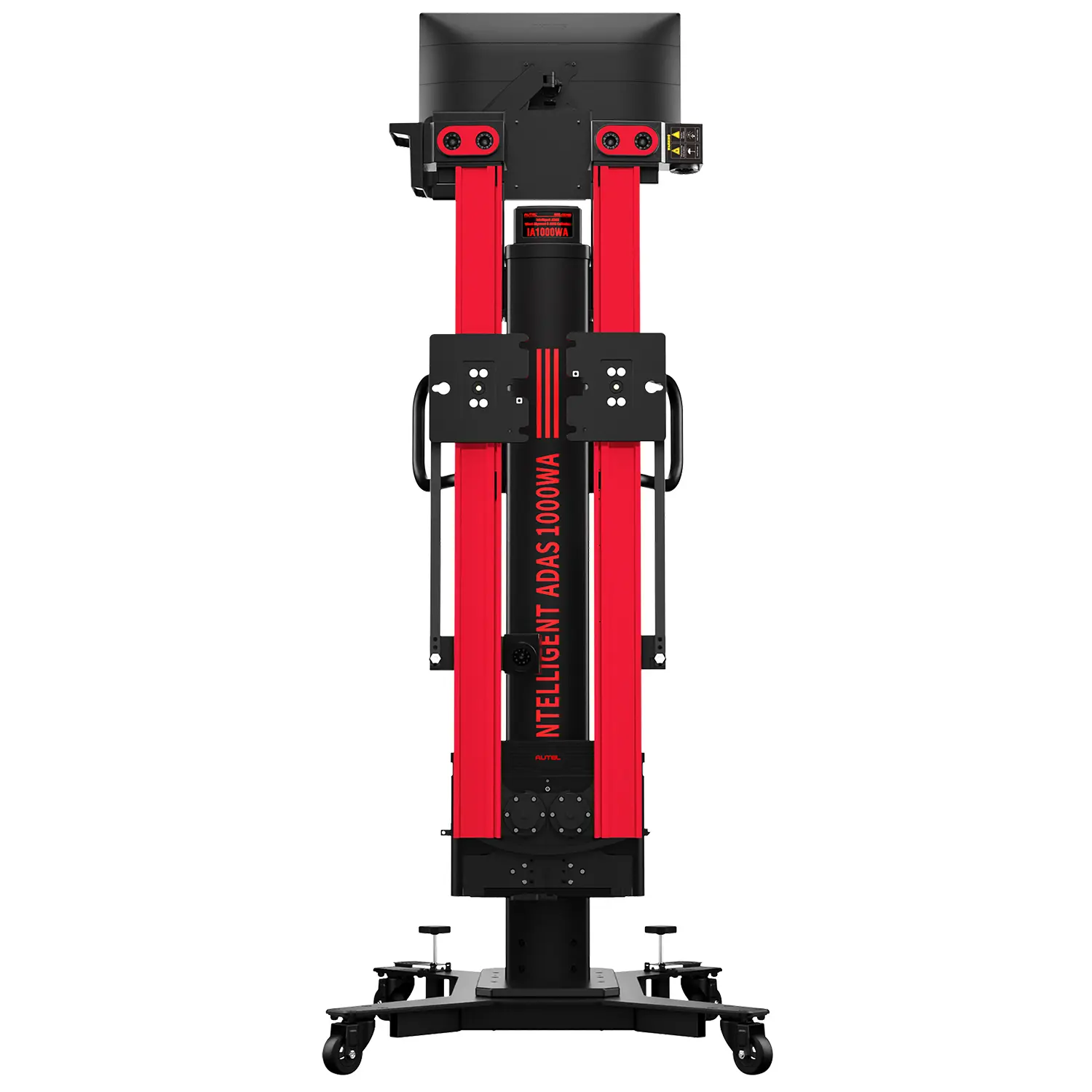

– Automated Alignment and ADAS Calibration System with robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator and AVM mat placement capable of performing four-wheel alignment and ADAS calibrations.
– Includes Autel LDW physical pattern and target kit.
– Includes three 27-inch attachable monitors and the Autel digital LDW target kit.

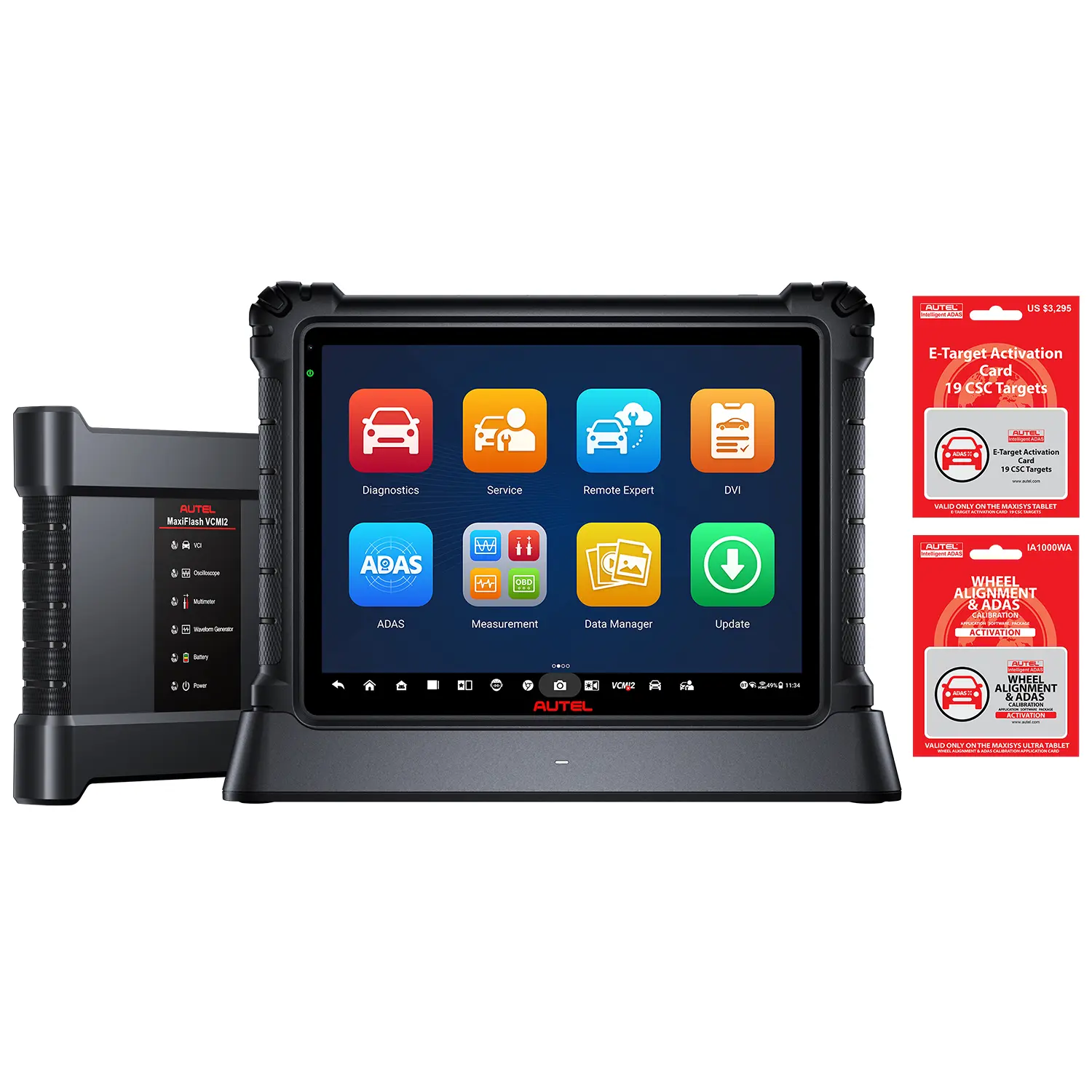

– Includes MaxiSYS Ultra S2 advanced diagnostics tablet with MaxiFlash VCMI2 and IA1000 Alignment and ADAS software upgrade
– Includes 24” touchscreen display that attaches to frame unit, four tire clamps, steering wheel and brake lock, distance target, two wheel chocks, and two AVM-placement lasers.

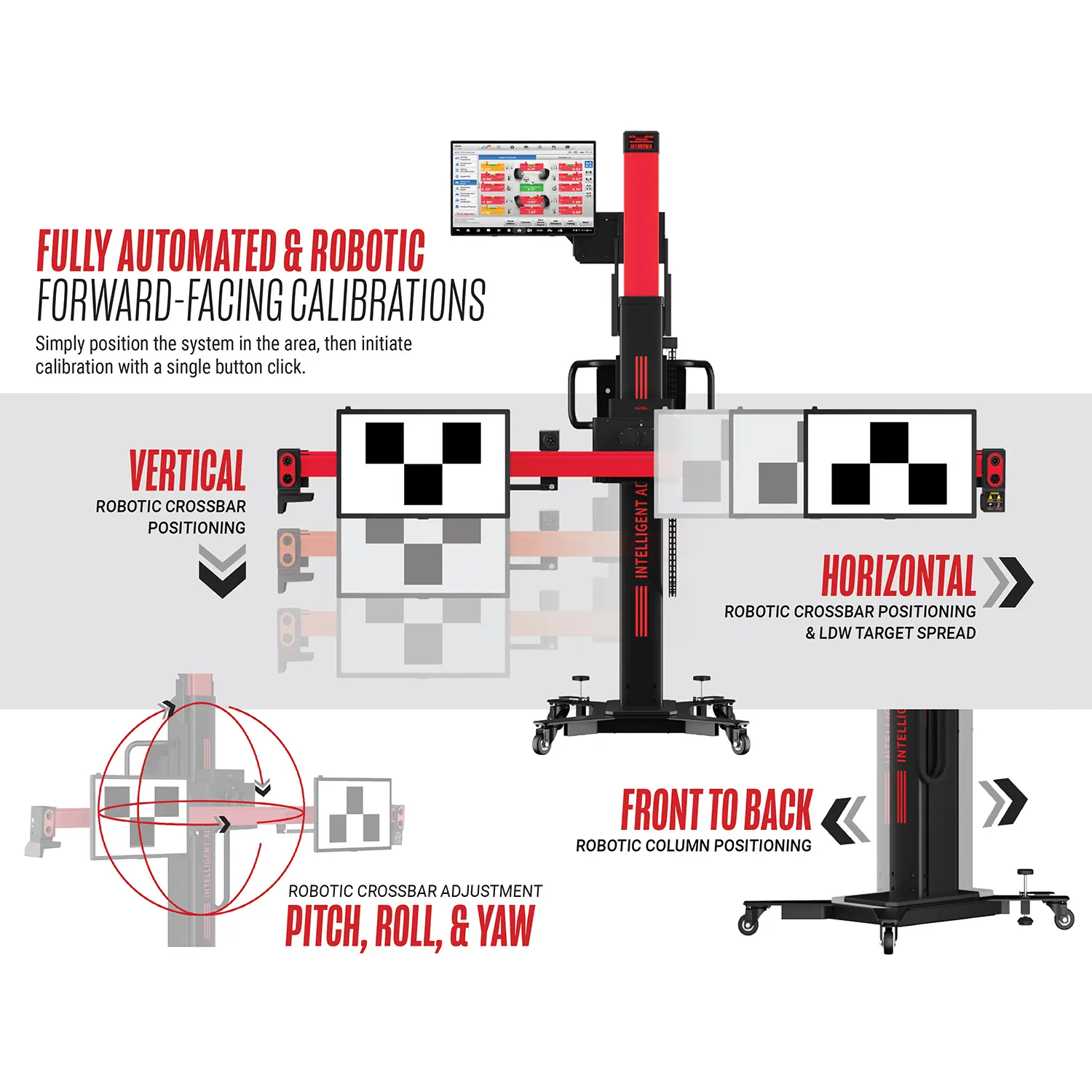

– Unit provides one-step robotic and vertical LDW target placement via physical targets or with the included 27-inch attachable monitors, significantly reducing manual operation and setup time.
– Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.
– Offers comprehensive four-wheel alignment coverage of U.S., Asian, and European vehicles.
– Equipped with six high-definition cameras and precision-engineered wheel clamps for industry-leading accuracy to 0.02-degrees.
– Includes one-year limited warranty
