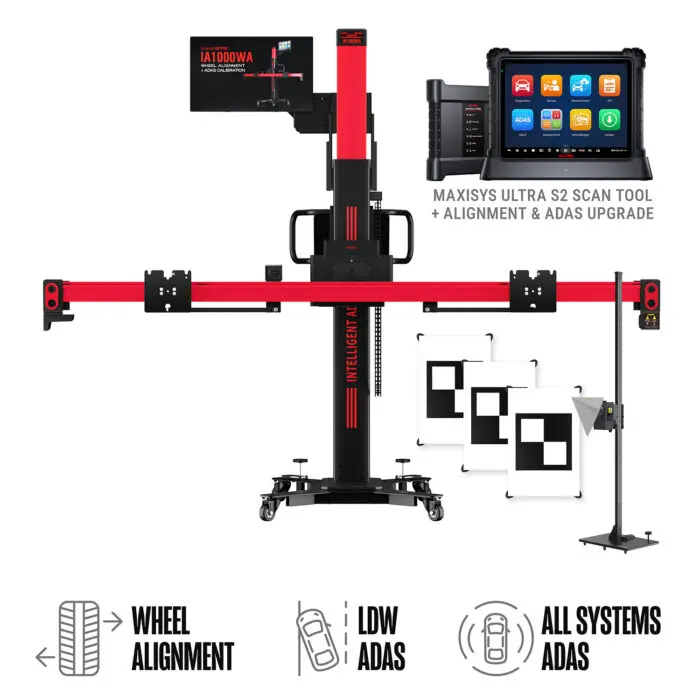

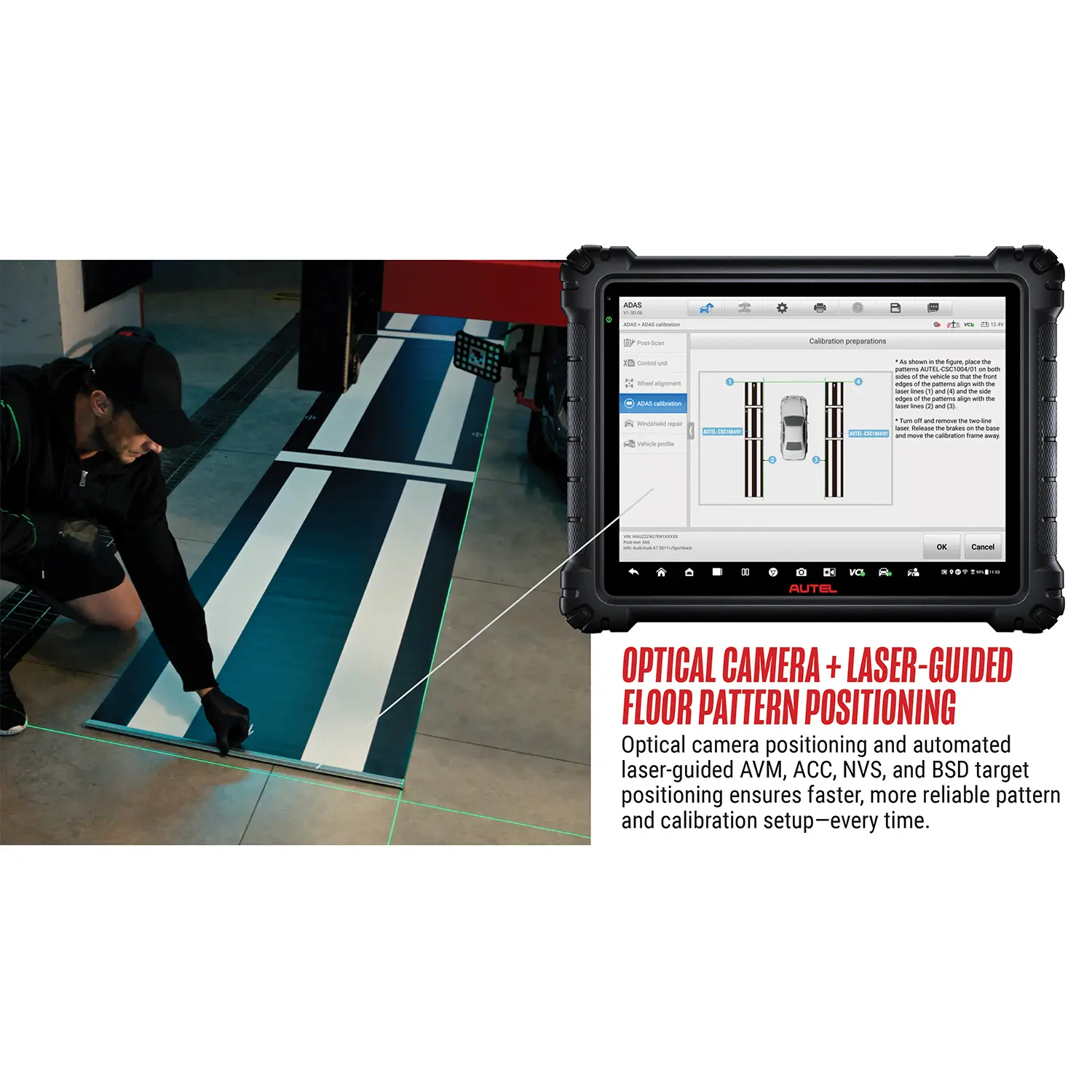

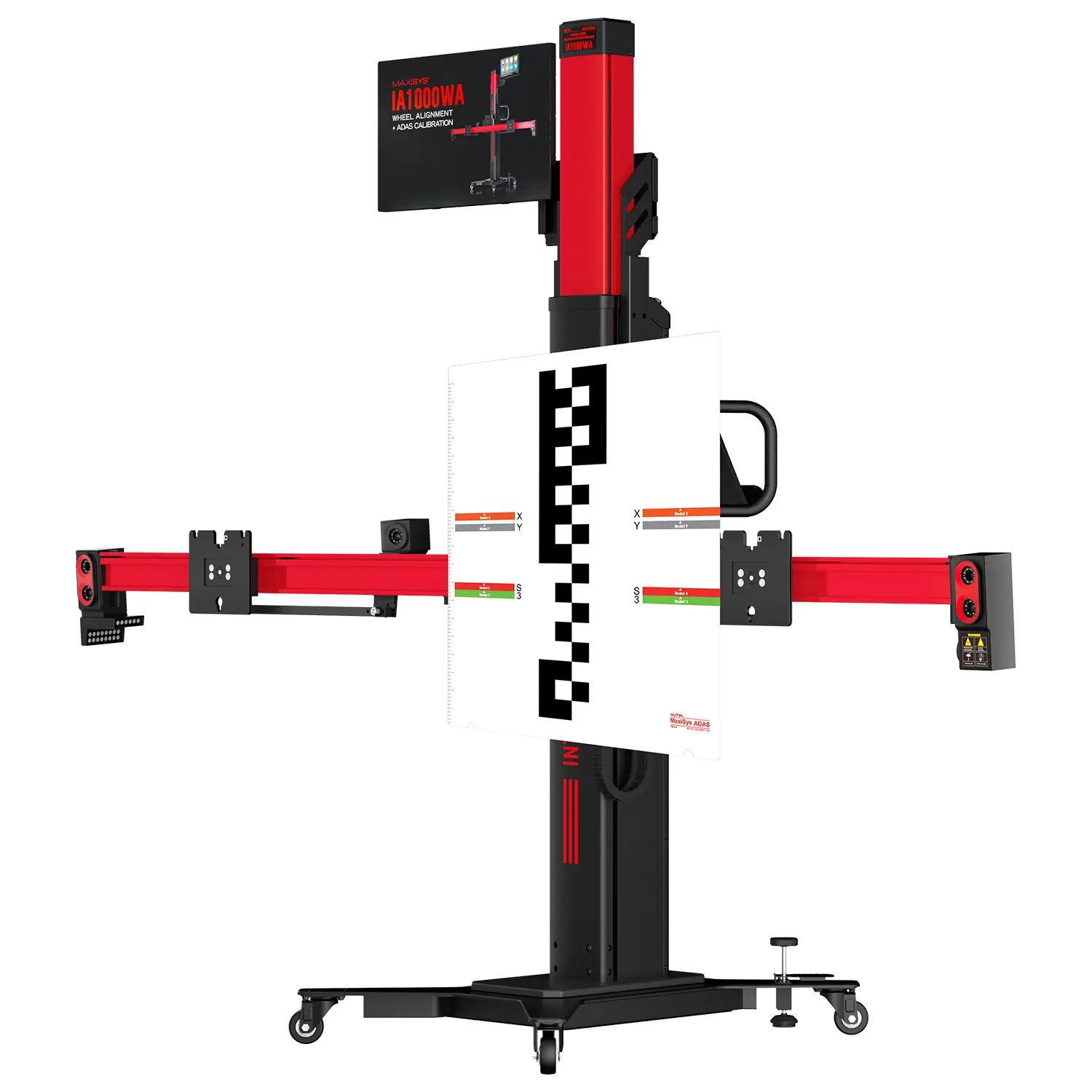

– Automated Alignment and ADAS Calibration System with robotic forward-facing camera target positioning, laser-guided ACC, blind spot calibrator and AVM mat placement capable of performing four-wheel alignment and ADAS calibrations.
– Includes Autel physical LDW pattern and target kit and calibration components for cameras, radar, LIDAR, Night Vision, and AVM systems.

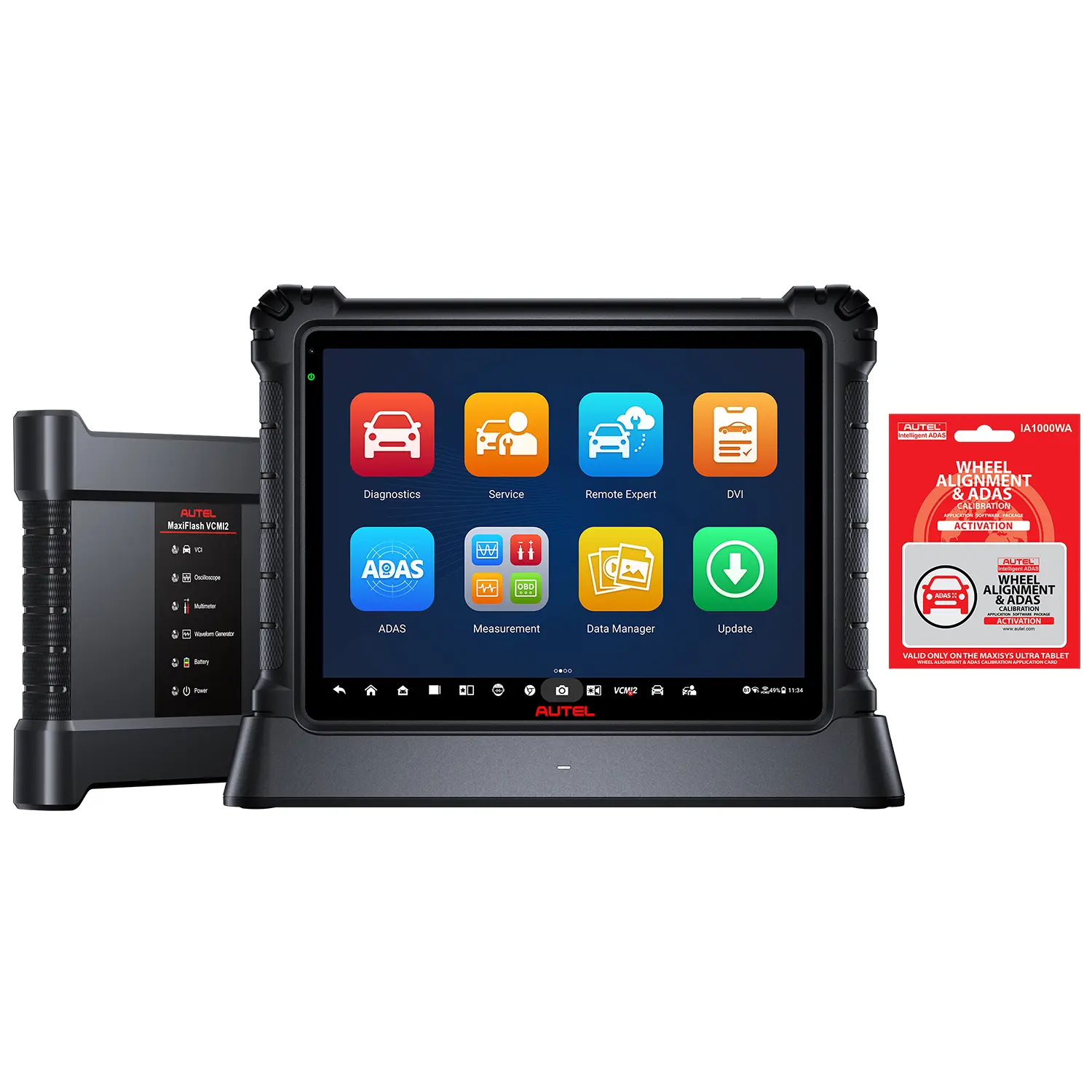

– Includes MaxiSYS Ultra S2 advanced diagnostics tablet with MaxiFlash VCMI2 and IA1000 Alignment and ADAS software upgrade.
– Includes 24” touchscreen display that attaches to frame unit, four tire clamps, steering wheel and brake lock, distance target, two wheel chocks, and two AVM-placement lasers.

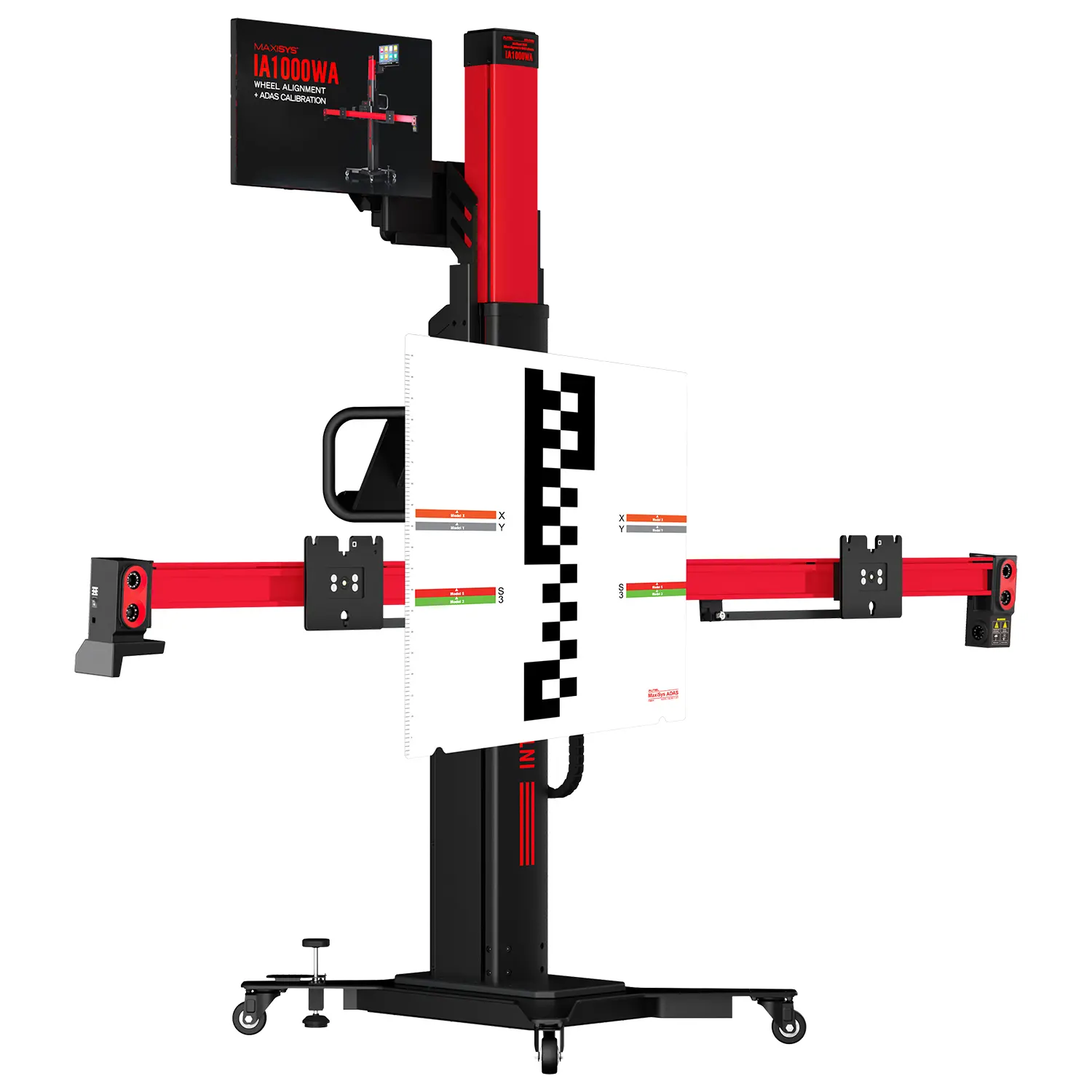

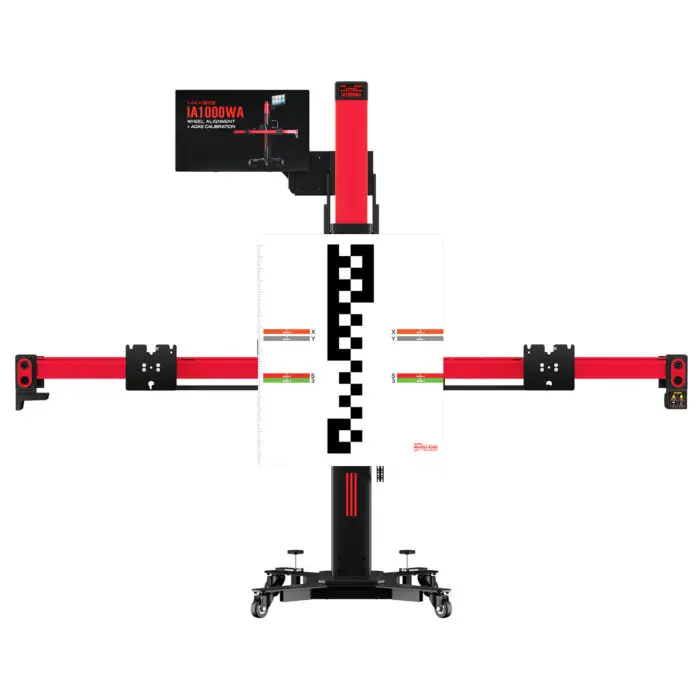

– Unit provides one-step robotic and vertical LDW target placement via physical targets or with 27-inch attachable monitors (LDW target monitors not included), significantly reducing manual operation and setup time.

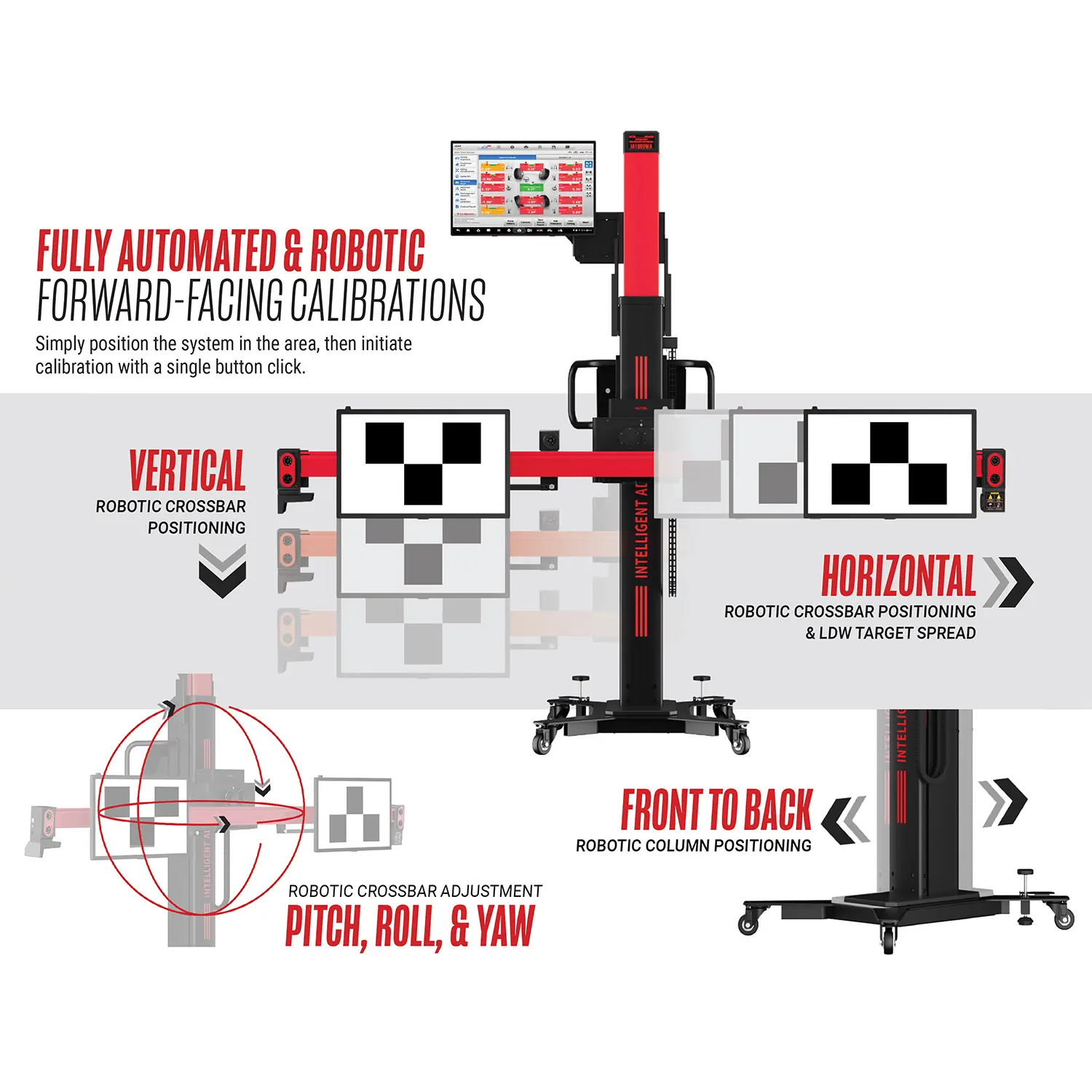

– Automatic pitch, roll, yaw, and front-to-back fine-tuning robotic adjustments improve accuracy and reduce human error.
– Offers comprehensive four-wheel alignment coverage of U.S., Asian, and European vehicles.
– Illustrated alignment instructions, live readings, required tools and adjustment locations display on a single screen.
– Equipped with six high-definition cameras and precision-engineered wheel clamps for industry-leading accuracy to 0.02-degrees.
– Includes one-year limited warranty

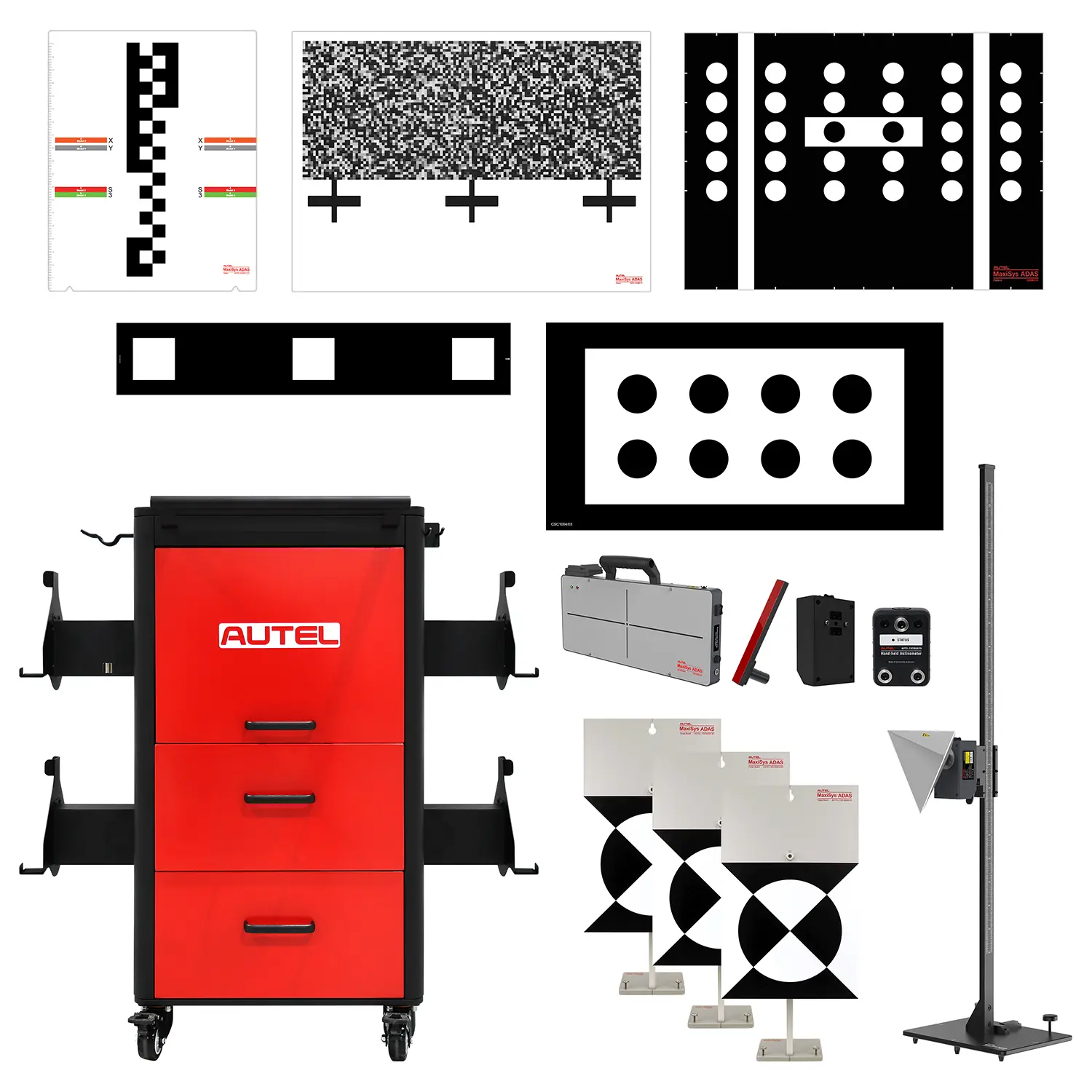

ADAS All-Systems Add-Ons Included:
• LDW physical target & pattern kit
• AVM mats and components for radar, LIDAR, and Night Vision calibrations
• Additional tools & accessories:
• Ride height and wide-angle targets
• Hand-held inclinometer
• OE-sized corner reflectors
• Camera calibration bar
• Wheel-off adapter kit
• ADAS metal storage cabinet with tire clamp brackets
• Large pattern storage bracket
